Tube-Tech MEC 1A Recording Channel

Name: The Incredible Tube-Tech MEC 1A Recording Channel
Brand: Studio
SKU: TTMEC1A
Price: 9995 AUD
Availability: InStock

The Tube-Tech MEC 1A is an all-tube mono recording channel that combines Tube-Tech’s MP1A mic preamp, EQ 1A active equaliser, and CL2A compressor in a 2U unit. It provides Tube-Tech’s signature warm, full, yet transparent sound, making it an excellent, cost-effective front end for high-quality recordings.

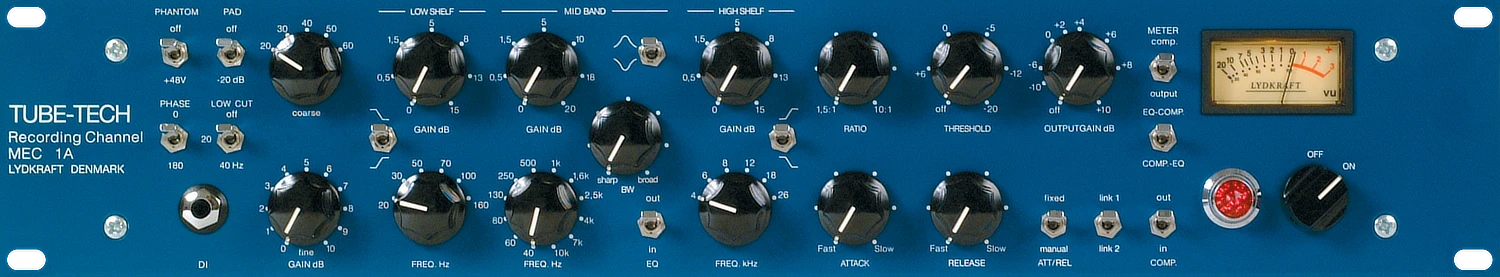

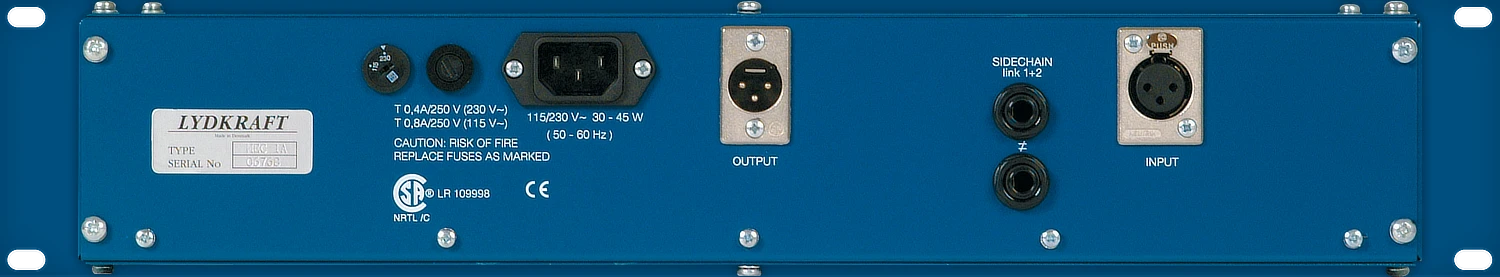

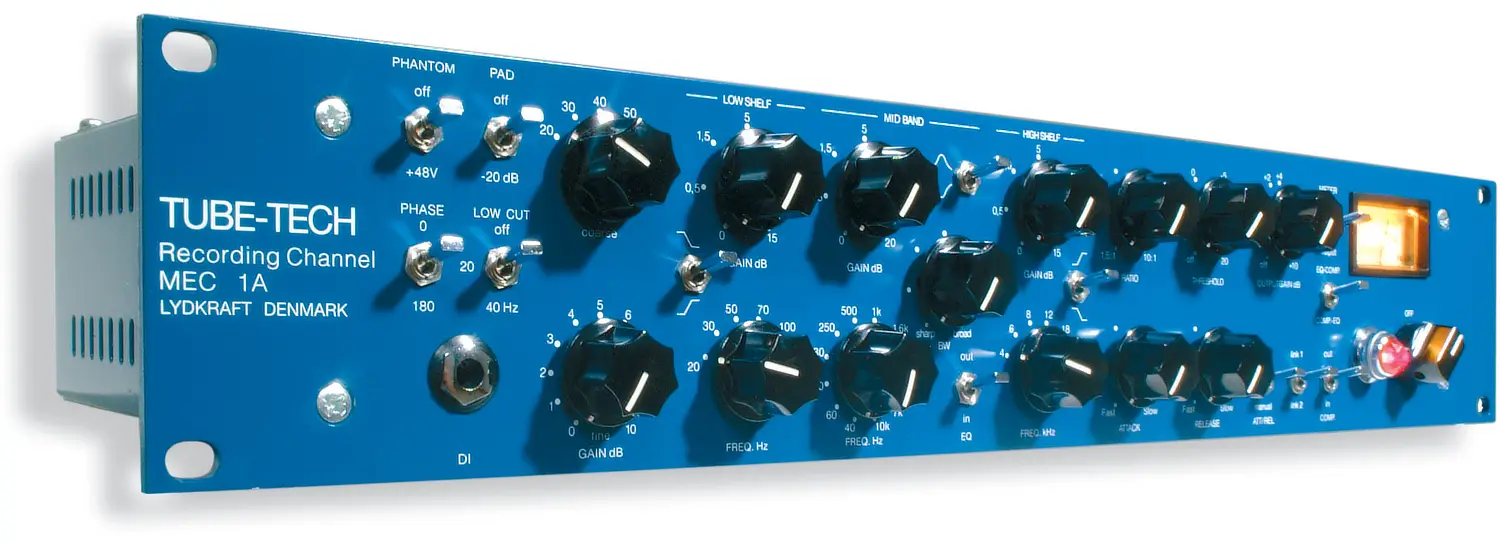

Tube-Tech MEC 1A Recording Channel

The MEC1A is an all-tube mono recording channel that unites TUBE-TECH’s iconic designs: the MP1A mic preamp, EQ 1A active equaliser, and CL2A compressor, all in a robust 2U rack unit. It delivers the signature TUBE-TECH sound—rich, warm, open, and transparent.

The MEC1A offers a comprehensive and cost-effective front end for high-quality recordings, regardless of the source.

Tube-Tech MEC 1A Key Features

Tube-based “three-in-one” recording solution
Frequency response: 5 Hz – 60 kHz (-3 dB)
Low noise: < -85 dBU at 10 dB gain
Common Mode Rejection Ratio (CMRR): > 60 dB at 10 kHz
Output gain: Off to +10 dB
Clickless relay for swapping EQ and compressor positions
Independent in/out switches for each section
Conductive plastic potentiometers and gold-plated switches
Fully regulated power supply with toroidal transformer
All-tube design (excluding PSU and sidechain circuit)
Transformer-balanced, fully floating inputs and outputs

The Tube-Tech MEC 1A Recording Channel is a single-channel recording unit that integrates a microphone preamplifier, equaliser, and compressor. Its shelving and bell filters are driven by a tube operational amplifier. The Tube-Tech MEC 1A is fully tube-based, except for the power supply, and features fully floating transformers for both input and output. All DC voltages are stabilised, except for the anode voltage in the output stage.

Specifications

Microphone Preamplifier:
- Gain: +20 to +70 dB (DI: 10-60 dB)
- Input impedance: > 1.2 kΩ
- Features: +48V phantom power, phase reverse, -20 dB pad, low cut filter
- DI input impedance: > 1 MΩ
Equalizer:
- Type: Active, tube-based equalizer
- Bands: Three-band EQ
- Low frequencies: 6 selectable low shelving frequencies
- High frequencies: 6 selectable high shelving frequencies
- Mid frequencies: Bell-type mid with 12 selectable frequencies and variable Q
Opto Compressor:
- Gain reduction: Low distortion optical element
- Ratio: 1.5:1 to 10:1
- Controls: Variable attack and release
- Metering: VU meter displays output or compression level
- Stereo linking: Linkable for stereo applications
