Radial Engineering JD6 Six-Channel Passive Direct Box

Building on the industry standard Radial JDI™, the Radial Engineering JD6 incorporates six premium Jensen transformers with extra RF filtering to ensure optimal signal transfer with minimal noise, phase shift, or distortion.

These transformers can withstand extreme signal levels, making the JD6 particularly effective for high-output active devices such as digital pianos, which often overload most direct boxes or preamps.

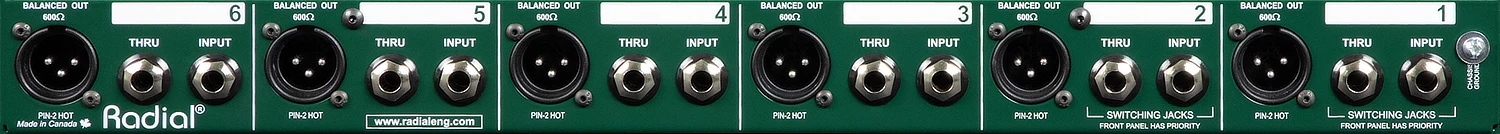

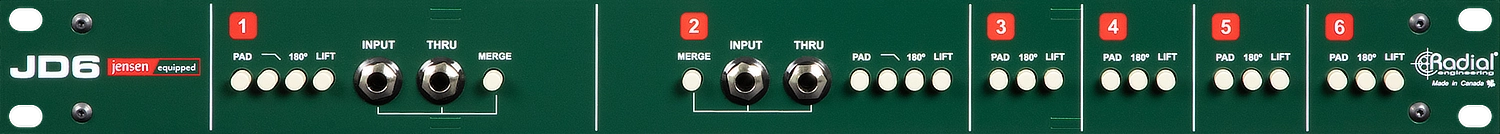

Each Radial Engineering JD6 channel features a rear-mounted ¼” instrument input and thru-put for the artist’s amp, plus a balanced XLR output to feed the mixing desk. Channels 1 and 2 also include front panel connectors that switch the input as soon as a cable is inserted, enhancing studio efficiency.

Features

• Multi-channel direct box for concert touring and studio recording
• Jensen transformer-equipped for exceptional audio quality
• Handles hot signal levels without distortion
• Front and rear panel connectivity for additional routing options

The JD6 on Stage
Use channels 1 and 2 to patch in a stereo master keyboard via the front panel and connect your rackmount synths and modules using the rear panel connectors.

Using the JD6 in the Studio
The JD6 is great to patch in all kinds of instruments… not just keys! It features the same fabulous audio signal path as the world renowned Radial JDI, only six times better!

The Radial Engineering JD6 is a multi-channel passive direct box that has been specifically designed to address the needs of concert touring, while being equally at home in the studio. The JD6 houses six completely independent transformer isolated channels for minimal crosstalk and maximum protection against noise, 60 cycle hum and buzz or hum caused by ground loops.

The Radial Engineering JD6employs the finest Jensen® audio transformers for absolute performance while delivering the warmth and character that has made Radial the world’s most revered direct box producer. The JD6 employs the same audio circuit as the renowned Radial JDI for explosive signal handling, virtually zero phase distortion and a truly linear response.
