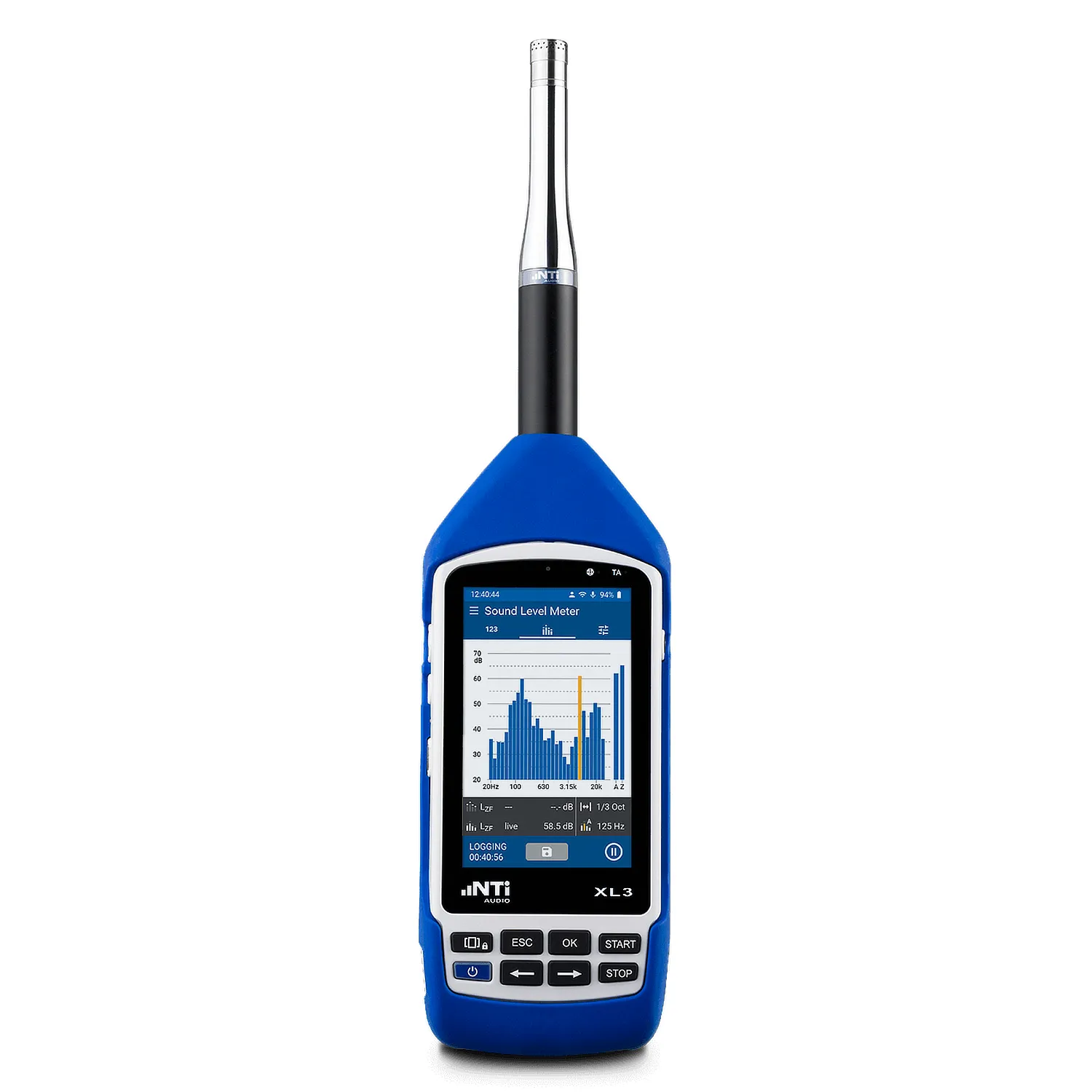

NTI Audio XL3 Acoustic Analyser

The sound level meter is fully networked, allowing operation and data access from any mobile device.

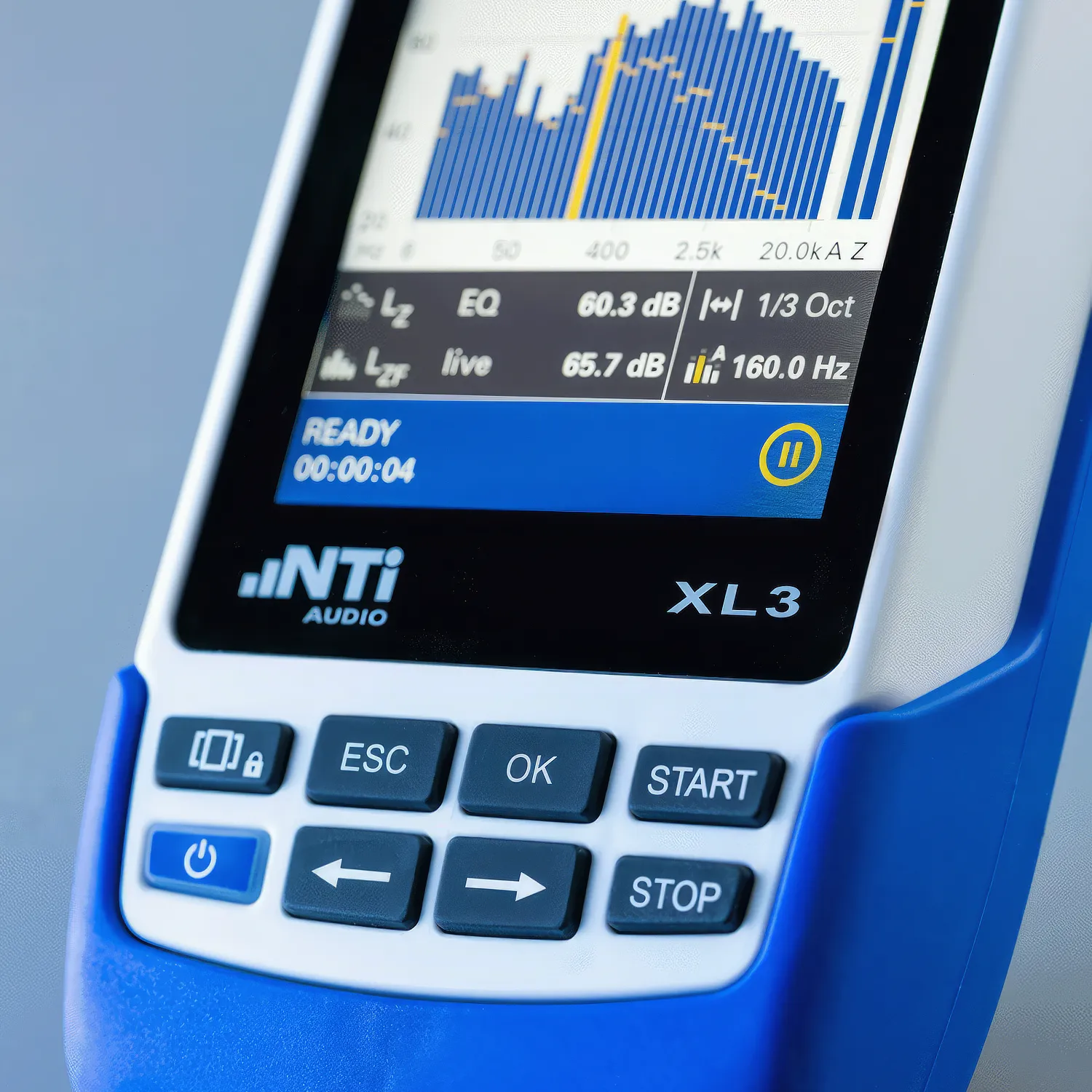

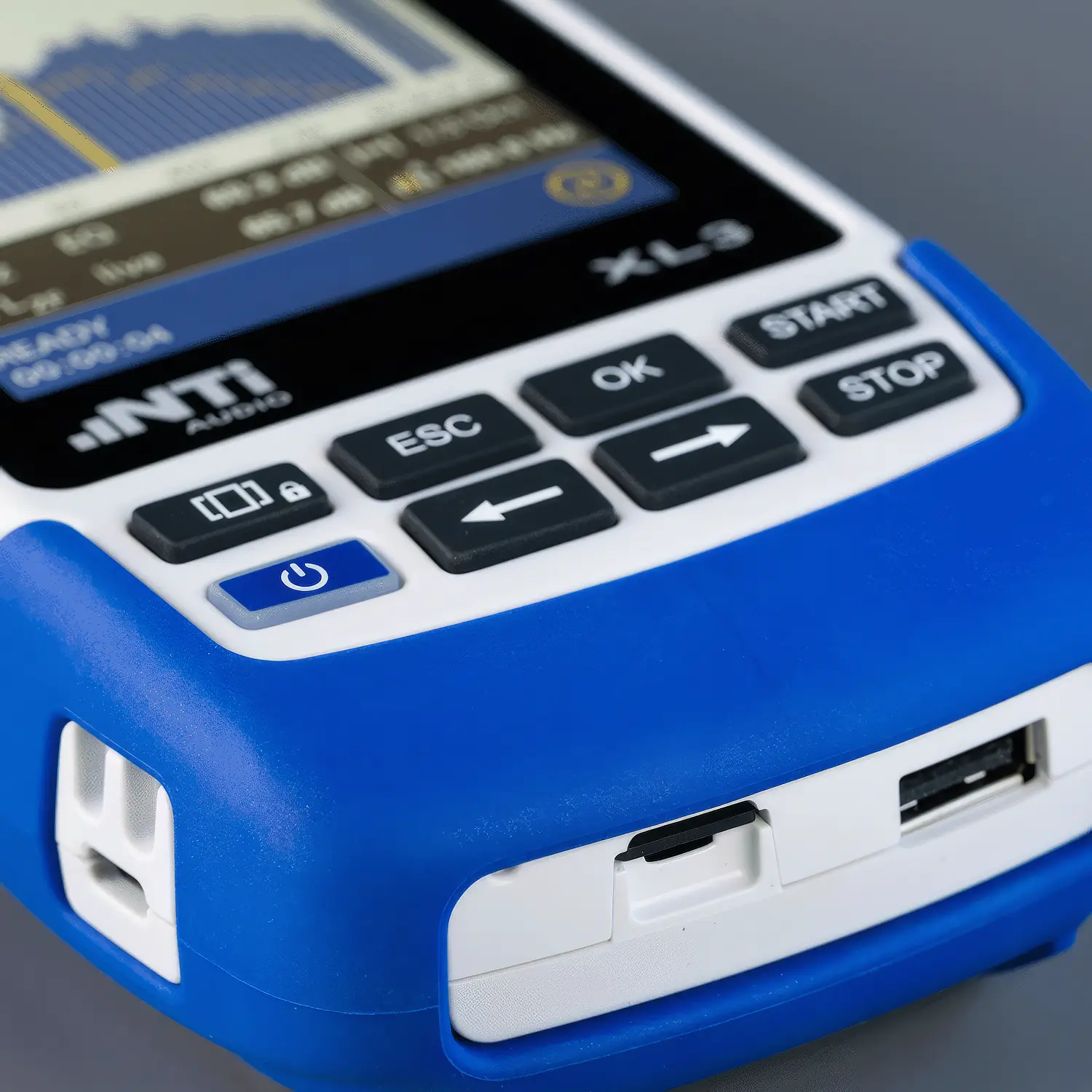

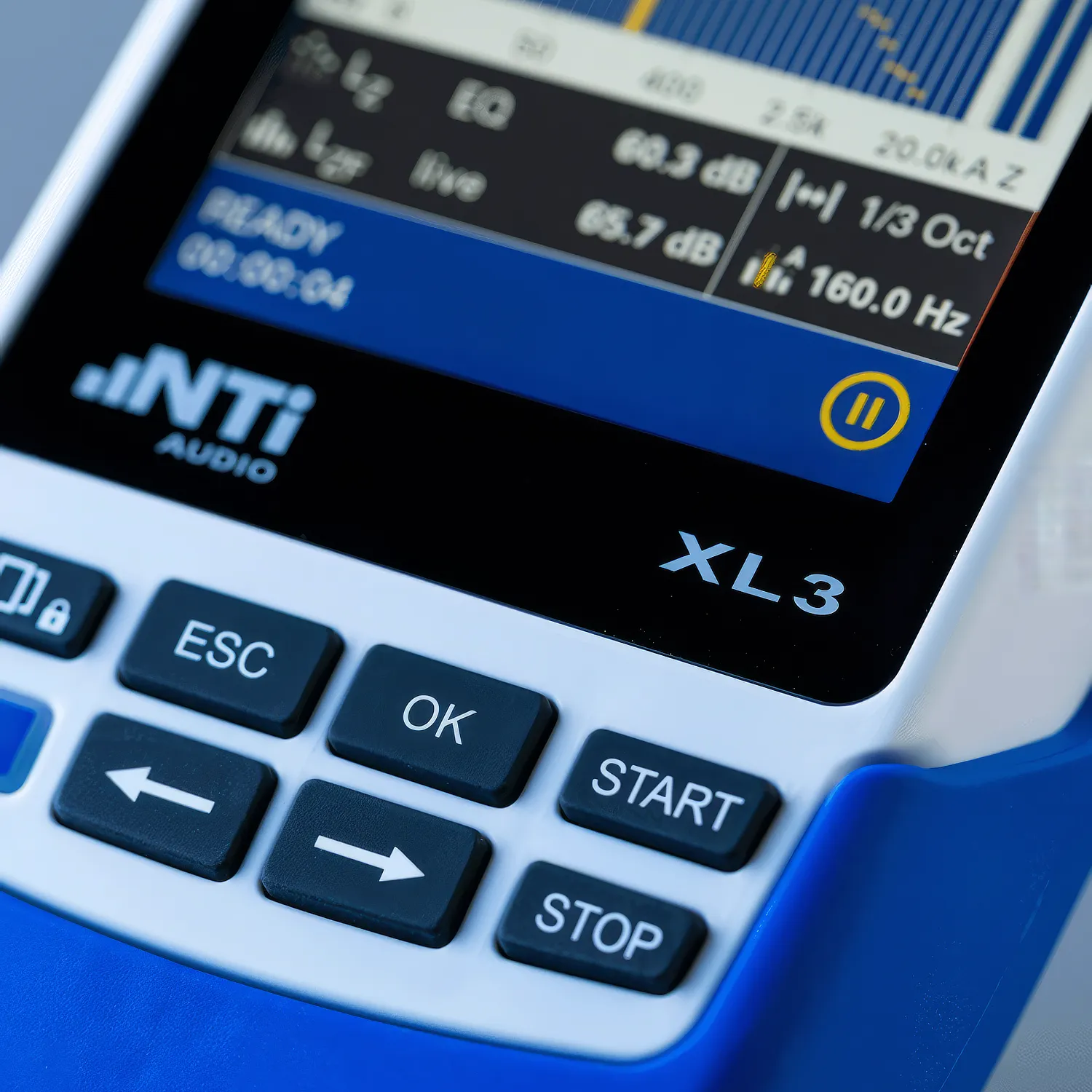

The large 4.3″ IPS colour touch display offers an excellent resolution of 480 x 800 pixels. This allows intuitive control of all measurement functions in multiple languages and presents noise level readings in large, clear digits. Choose between a traditional white, blue, or black background theme – just as you might on your smartphone. An additional haptic keypad with eight buttons controls common instrument functions, such as power on/off for the NTI Audio XL3 and start/stop for the measurement.

The NTI Audio XL3 includes an integrated web server and file server accessible through the instrument’s built-in Wi-Fi or LAN connectivity. Simply use your preferred web browser and connect to the sound level meter through the NTi Connect service. The instrument can be controlled by an authorized user from anywhere in the world. Alternatively, you can connect directly to the device’s IP Address through your local network – e.g., in building acoustics, the impact sound level measurement can be started directly from the sending room.

All measurement data can be easily downloaded without interruption to an ongoing measurement. To log prevailing weather conditions, a weather station can be added. Additionally, the online NTI Audio XL3 synchronises with the actual time automatically using the NTP protocol. This, along with the optional APIs for controlling the instrument to retrieve historical and current noise, audio, and weather data, simplifies integration into monitoring systems.

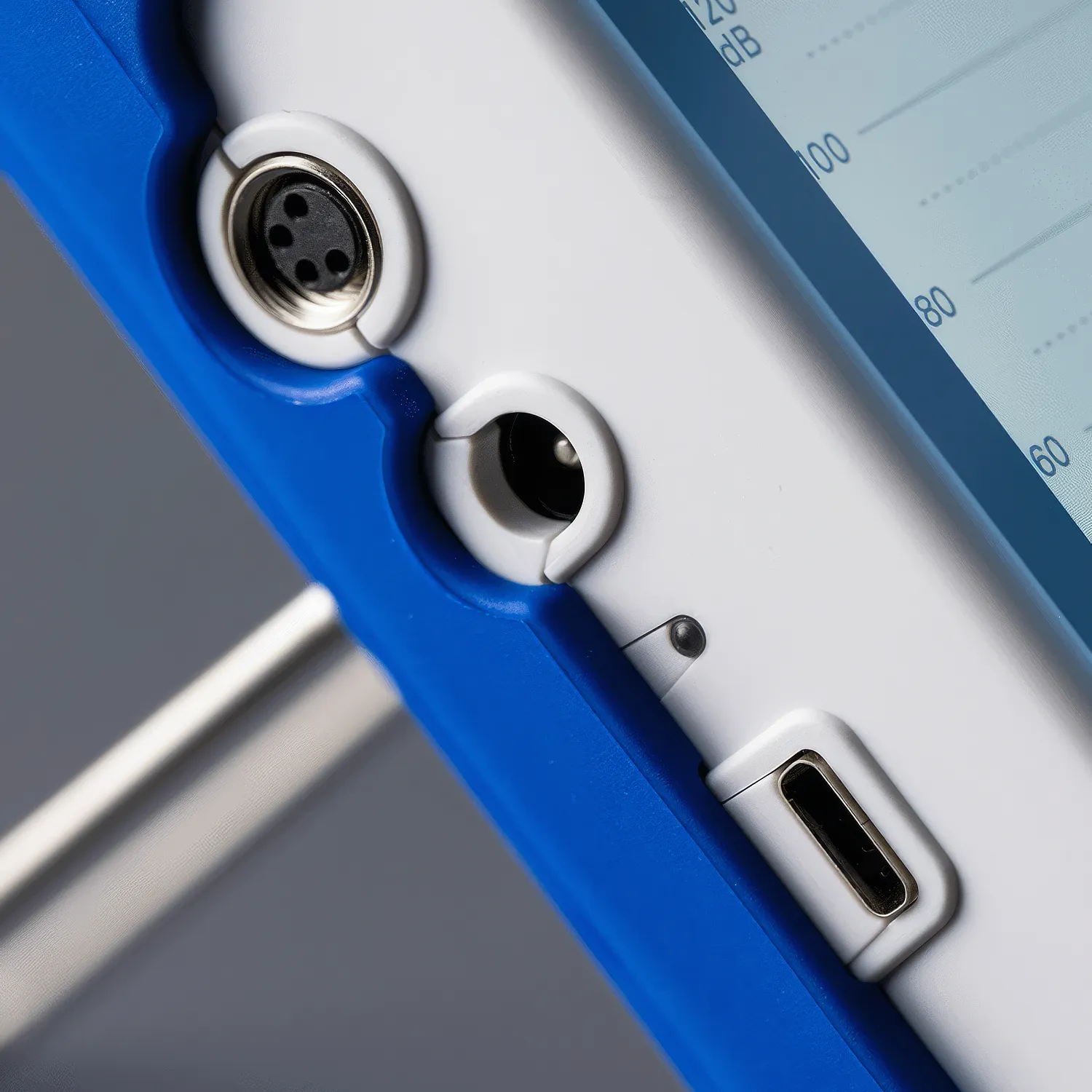

All measurement data is stored in an open txt-format on a removable 32 GB SD card for download via USB-C. This capacity can be increased to terabytes of storage with a larger SD card or an external SSD. Additionally, an audio signal is recorded.

The NTI Audio XL3 is optimised for integration into customised noise monitoring applications – the sound level readings can optionally be streamed in an efficient binary format. Simultaneously, the live audio is available online for identifying annoying noise sources.

This sound level meter builds on the latest processor and display technologies to provide a comfortable user experience. High-performance hardware packed in a robust housing offers precise 96 kHz data sampling in 32-bit resolution. With a frequency range from 0.3 Hz – 40 kHz, the NTI Audio XL3 is prepared for infra and ultrasound measurements. With single-range measurement and the automated sensor detection reading the electronic data sheet from the connected measurement microphone, the NTI Audio XL3 Acoustic Analyser is indeed the equivalent of a Swiss Army knife for noise measurement professionals.
