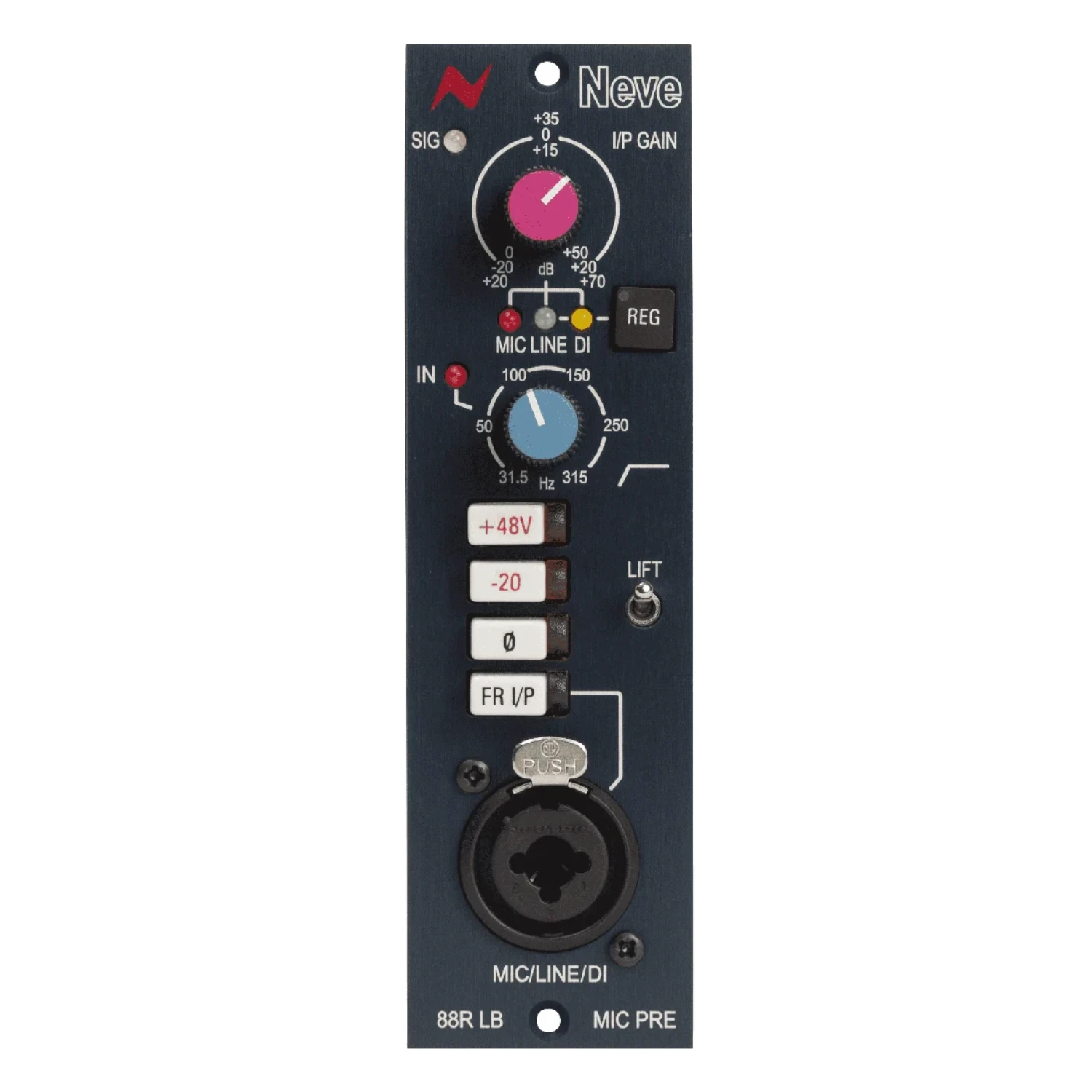

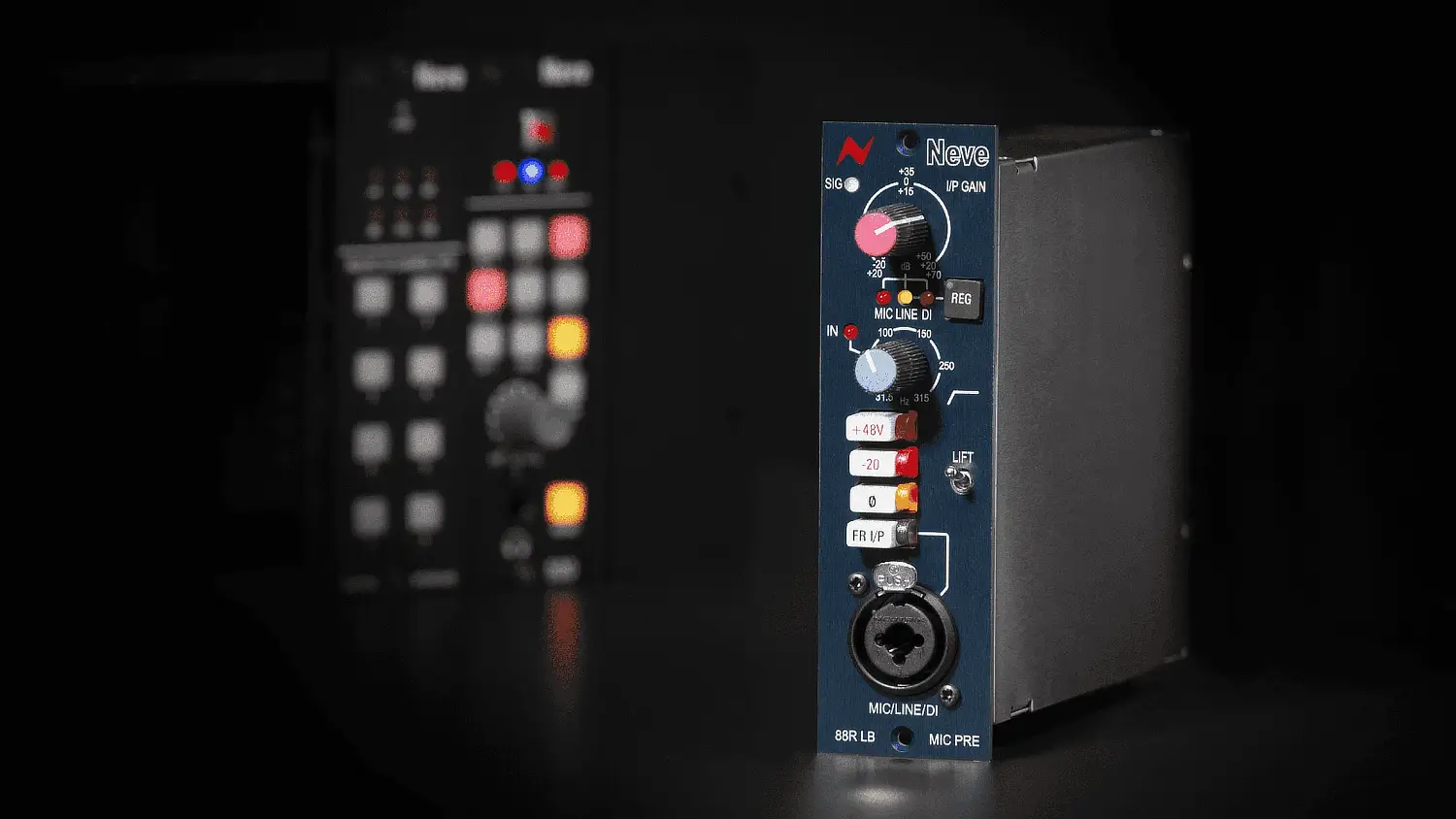

Neve 88RLB Microphone Preamplifier

Not everyone has the space for the world’s greatest recording console, the Neve® 88RS. But you don’t have to compromise on quality when capturing the beauty, energy, and excitement of your recordings. Introducing the Neve 88RLB 500 Series Mono Mic Preamp.

Neve 88RLB Microphone Preamplifier

The Neve 88R console has been a cornerstone of top-tier studio recording and mixing for the past two decades, playing a crucial role in producing countless hits and film scores. Now, with the Neve 88RLB, studios of all sizes can access the world-class Neve® recording quality, as it uses the same preamp circuitry and components as the 88R console.

Like the Neve 88RS console preamp, the Neve 88RLB features a custom Marinair® transformer to balance the microphone input stage, delivering subtle warmth and tonality to signals while maintaining transparency across a wide frequency range.

The microphone preamp offers up to 70dBu of gain through the transformer-balanced input, followed by an electronically balanced output stage that ensures ultimate transparency when connecting to audio interfaces, analogue outboard gear, or tape machines.

Three combined input connections provide an ideal platform for recording various instruments – dynamic, condenser, or ribbon microphones, line-level devices like synthesizers or drum machines, and high-impedance instruments.

The Re-Gen function enhances the Neve 88RS console preamp capabilities, allowing line and DI signals to benefit from the Marinair® transformer coloration. This feature adds the signature Neve® console sound to instruments or synthesizers at the push of a button.

The Neve 88RLB also includes the same variable high pass filter as the renowned Neve 88RS console, sweeping from 31.5 to 315Hz, perfect for tuning out unwanted bass frequencies when recording higher register instruments.

Intelligent switching prevents phantom power from affecting line or DI signals at the front or rear inputs; +48V is only supplied to the microphone connection, protecting sensitive analogue equipment. Additionally, the 88RLB features a -20dB pad and a 180-degree phase invert switch, usable on Mic, Line, or DI signals.

The Neve 88RLB integrates seamlessly into your studio, ready to go via the rear inputs. The switchable front input allows for quick recording by connecting directly into the front of the unit.

Specifications

General Specification

  • True Neve 88RS mic preamp in a 500-series format, with a transformer-coupled Mic input, electronically balanced Line and DI inputs, and Line output
  • REGeneration feature allows Line and DI inputs to be fed through the Mic input transformer to inject the legendary Neve sound
  • Sweepable high pass filter can be switched in or out
  • Intelligent 48V phantom power function
  • -20dB pad and phase reversal features for Mic, Line & DI inputs
  • Signal Presence LED illuminates green from -25dB and red from +26dB
  • Front combi-XLR connector for Mic input (XLR) and Line & DI inputs (1/4” TRS jack); LIFT switch eliminates potential ground loops when using unbalanced jack connectors in the front input
  • Compatible 500-series rack/enclosure with Power Supply and line-level input/output connectors required, not supplied


Audio Performance

  • Mic Input: Transformer balanced and earth-free
  • Mic Impedance: 1.2kOhms
  • Mic Gain Range: +20 to +70dB
  • Mic Frequency Response: 20Hz to 20kHz +/- 0.5dB @ 60dB gain
  • Mic Distortion: 40Hz-20kHz @ 60dB gain, <0.025% @ +20dBu output with 80kHz bandwidth
  • Mic EIN: Better than -126dBu @ 60dB gain
  • Line Input: Electronically balanced
  • Line Input Impedance: >10kOhms
  • Line Gain Range: -20dB to +20dB
  • Line Frequency Response: 20Hz-20kHz +/- 0.25dB
  • Line Distortion: 20Hz-20kHz @ unity gain, <0.0025% @ +20dBu output with 80kHz bandwidth
  • Line Noise: < -87dBu 20Hz-20kHz bandwidth @ unity gain
  • DI Input: Electronically balanced
  • DI Input Impedance: >500kOhms
  • DI Gain Range: 0dB to +50dB
  • DI Frequency Response: 20Hz-20kHz +/- 0.25dB
  • DI Distortion: 20Hz-20kHz @ 0dB gain, <0.0025% @ +20dBu output with 80kHz bandwidth
  • DI Noise: < -87dBu 20Hz-20kHz bandwidth @ minimum gain


Dimensions: 132mm x 38mm x 145mm
Weight: 0.5kg

User Manual

Download the User Manual in PDF format.

Ordering

SKU AN88RLB Categories , , Tag

$1,398 Inc GST
