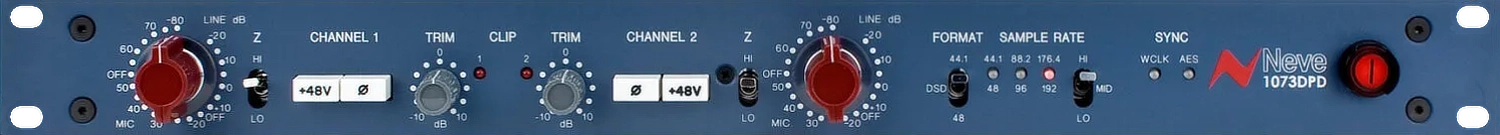

Neve 1073DPD Microphone Preamplifier

The Neve 1073DPD merges its renowned analogue heritage with high-headroom Neve-quality A/D conversion, delivering high-resolution 24-bit 192kHz digital output via AES or DSD protocols. This setup ensures seamless integration with various digital recording systems through synchronisation points like AES or word clock.

Parallel analogue and digital outputs operate independently, enabling simultaneous capture of both formats. This functionality is ideal for modern studios that require flexibility and reliability in their recording processes.

The ADC insert via TRS connection leverages the DPD’s high-quality converters for external analogue equipment. This feature allows for the insertion of external analogue processors into the DPD’s signal path, by feeding the analogue output into an outboard compressor and then back into the ADC insert. This method ensures the signal appears digitally to your audio interface, maintaining high-resolution conversion quality throughout.

Exclusive Marinair® transformers in both the input and output stages are crucial for producing the iconic Neve® 1073® sound. The Neve 1073DPD retains the discrete, class-A topology that the classic 1073® is famous for, using through-hole construction methods. These include mounting the Marinair® transformers and class-A transistor-based amplifiers to ensure the highest quality audio path.

The classic 5dB stepped Elma switch delivers accurate gain levels throughout the gain range. This unique layout eliminates the need for a separate mic/line switch, as the potentiometer itself selects the preamp and input. With three distinct gain stages provided by two independent transistor-based preamplifiers, the 1073DPD offers ample gain for any DI, line input, or microphone signal, up to 80dB of microphone gain. By combining multiple gain stages and utilising the output trim control, the 1073DPD can be driven hard, enhancing the musical drive and harmonic saturation for which the 1073 is renowned.

With selectable impedance settings of 1.2kΩ and 300Ω, the 1073DPD can be optimised for a wide range of modern or vintage microphones. This flexibility ensures that whether you’re using a vintage ribbon mic or a modern condenser, you can achieve the best possible sound.

Additionally, the 180-degree phase flip feature is invaluable in multi-microphone setups with multiple preamps. This feature is particularly useful for applications such as top and bottom snare micing, where phase alignment is crucial for achieving a coherent and powerful drum sound.

The Neve 1073DPD stands out as a premier choice for studios seeking the best of both analogue warmth and digital precision. By integrating high-quality A/D conversion, versatile gain staging, and flexible impedance settings, it offers unmatched audio fidelity and operational flexibility. Explore the full capabilities of the Neve 1073DPD at Ordio Productions and elevate your recording setup to new heights.

Features

• Two legendary 1073^® microphone preamps in a convenient 1U rackmount design
• Exclusive Neve^® Marinair^® transformers used on input and output stages
• Superior Neve-designed analogue-to-digital 24-bit converters
• 192Khz operation with DSD conversion, selectable via front-panel controls
• Dedicated input Gain controls and output Trim controls on both channels
• +48V Phantom Power and Phase Reverse switch
• High-quality Input Selector switch
• Hand-crafted and hand-wired by Neve in Burnley, UK
