Neve 1073DPA Microphone Preamplifier

Name: The Excellent Neve 1073DPA Mic Pre
Brand: Studio
SKU: N1073DPA
Price: 4149 AUD
Availability: InStock

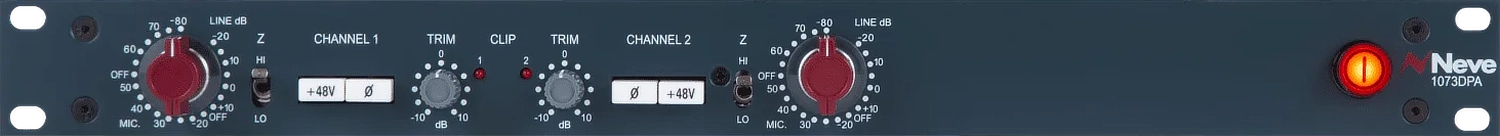

The Neve 1073DPA provides two Class A Neve^® 1073^® microphone preampliﬁers in a single rack space, without the additional EQ found on the classic 1073 unit – offering the very essence of the legendary 1073 sound.

Neve 1073DPA Microphone Preamplifier

The Neve 1073DPA uses exclusive Marinair® transformers in both the input and output stages, capturing the legendary 1073® sound. With a discrete, class-A topology, the preamp features a through-hole construction, including Marinair® transformers and class-A transistor-based amplifiers.

The 5dB stepped Elma switch provides precise gain levels without needing a mic/line switch. Three distinct gain stages from two transistor-based preamps offer ample gain for DI, line input, or microphone signals, reaching up to 80dB of microphone gain.

The impedance settings (1.2kΩ and 300Ω) cater to various microphones, while the 180-degree phase flip is ideal for multi-microphone setups, such as top and bottom snare micing.

Discover the Neve 1073DPA at Ordio Productions and enhance your recordings with this iconic preamp.

Features

Two legendary 1073^® microphone preamps in a convenient 1U rackmount design
Hand-crafted and hand-wired by Neve in Burnley, UK
Exclusive Neve^® Marinair^® transformers used on input and output stages
Dedicated input Gain controls and output Trim controls on both channels
+48V Phantom Power and Phase Reverse switch
High-quality Input Selector switch

Specifications

Input Impedance: Mic – Switchable, 300 or 1200 Ohms – Line – 20k Ohms
Frequency Response: 60dB gain into 600 Ohms 20Hz to 20kHz (+/-0.5dB) – 60dB gain into 600 Ohms 10Hz to 40kHz (-3dB)
EIN: Mic 60dB gain <-125dB (22Hz to 22Hz bandwidth)
THD+Noise: +20dBu into 600 Ohms <0.07% (50Hz to 10kHz) (80kHz bandwidth)
Dimensions: 482mm x 45mm x 254mm
Weight: 5kg
