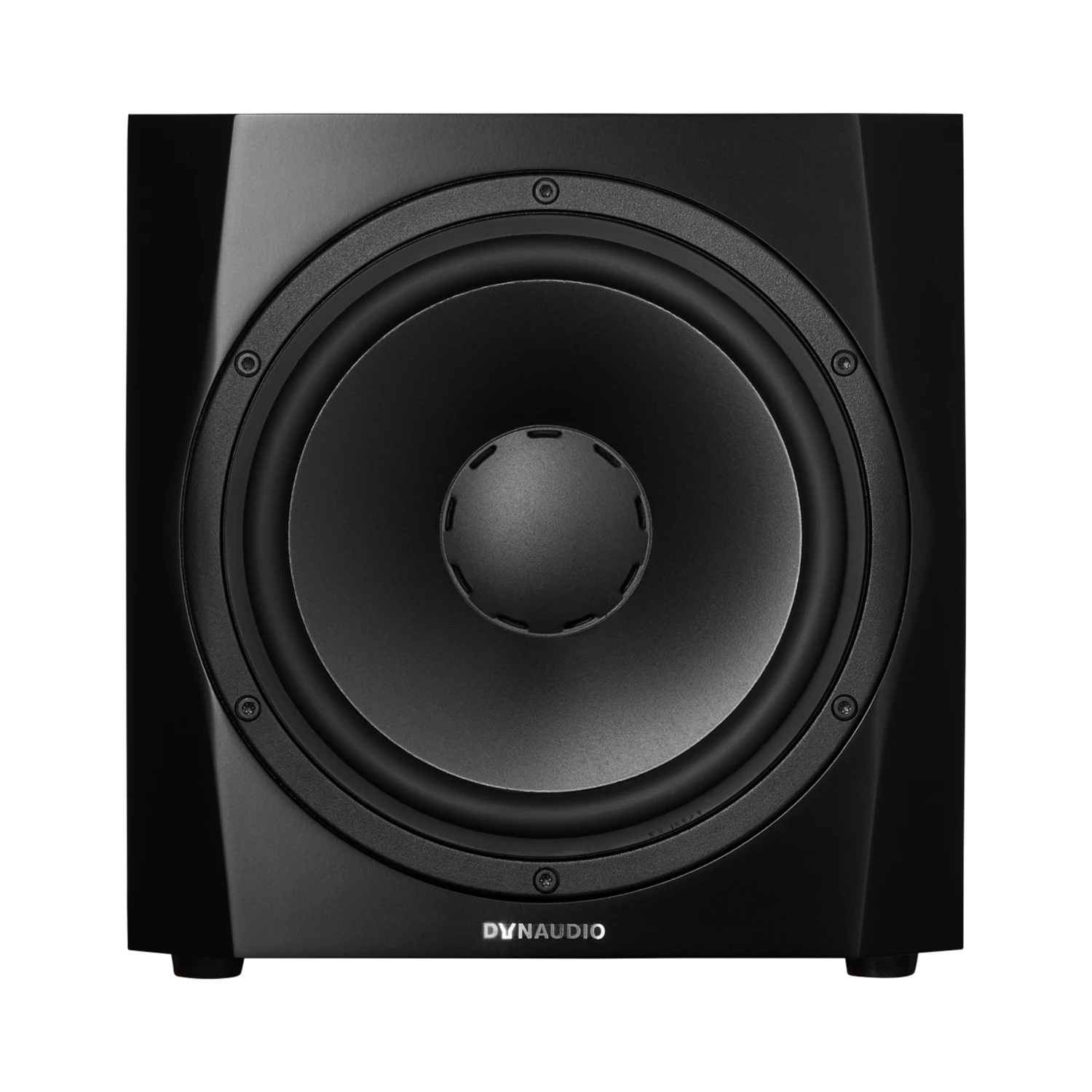

Dynaudio 9S Subwoofer

The Dynaudio 9S Subwoofer takes the best from our past subs and refines the details to reach the highest level in the low-end department.

Dynaudio 9S Subwoofer

The Dynaudio 9S Subwoofer is designed to perfectly complement LYD and other Dynaudio Pro studio monitors, including the classic BM range.

Built with studio-quality components and construction, the 9S features a double front baffle and a brand-new 9-inch long-throw driver, making it the ideal subwoofer for mixing and mastering projects. We prioritized compactness without compromising on sonic accuracy. Though similar in size to its predecessor, the BM 9S II, the 9S delivers performance more akin to the larger BM 14S II.

The Dynaudio 9S enhances any studio monitor setup, whether you’re working in stereo or surround. Its powerful yet precise low-end allows your monitors to focus on the frequency range above 50-150Hz, depending on your crossover filter settings.

A long-throw driver ensures the necessary movement to reproduce ultra-low frequencies down to 22Hz with exceptional detail. Driving this performance is a 300W Class D amplifier module that significantly outperforms the previous BM 9S II.

Upgrade your studio with the Dynaudio 9S subwoofer for unparalleled low-end accuracy and performance.

Features

  • 300-watt state-of-the-art Class D amplifier module
  • 9in long-throw MSP woofer for accurate low-end frequency reproduction
  • 22-175 Hz frequency range
  • Sealed, black-vinyl cabinet
  • 37mm front baffle
  • Master/Slave feature for daisy-chaining multiple subwoofers
  • Adjustable lowpass filter to set the perfect crossover frequency
  • SAT output with defeatable highpass filter

Specifications

  • Type: Subwoofer
  • Analog inputs: 1 x XLR LFE, 2x XLR stereo
  • Analog outputs: 1 x XLR Slave out, 2x XLR SAT out
  • Amplifier Power (W): 300W
  • AC Power Input: 100-120 V/200-240 V 50/60 Hz
  • Auto on/off: Yes
  • Max Stand-by Power Consumption (W): 0.5
  • Max Power Consumption (W): 350
  • Lower Cutoff (Hz @85 dB +/- 3 dB): 22
  • Upper Cutoff (Hz @ 85dB +/- 3 dB): 175
  • Maximum SPL (dB): 106
  • Box Principle: Sealed
  • Low pass filter: 50Hz-150Hz
  • High pass filter: Flat / 60 Hz / 80 Hz
  • Phase adjustment: 0/180 degrees
  • Woofer: 9in MSP
  • Dimensions: 266mm x 276mm x 320mm
  • Weight: 10.5 kg

User Manual

Download the User Manual in PDF format.

Ordering

SKU D9SSW Categories , Tags ,

$1,799 Inc GST
