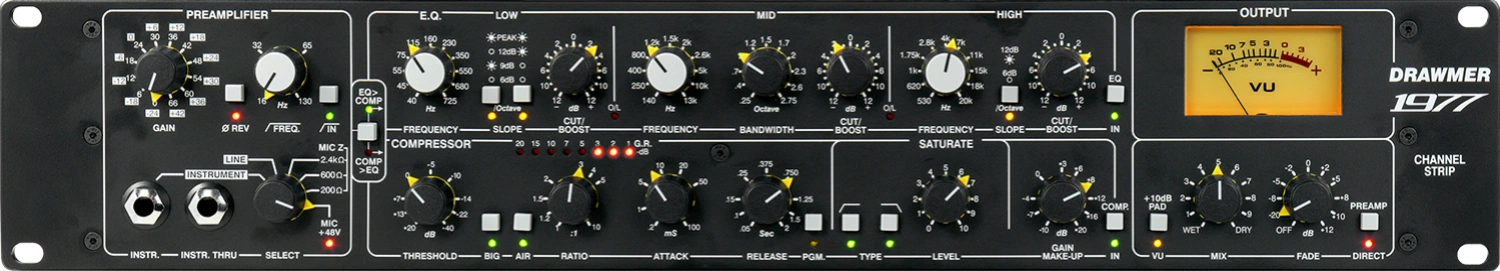

Drawmer 1977 Channel Strip

The Drawmer 1977 provides the clarity of an ultra-clean preamplifier, the precision of a three-band parametric equaliser, and the silkiness of a soft knee compressor. Additionally, it allows you to dial in as much warmth as you desire through three types of variable harmonic saturation.

The pristine preamplifier of the Drawmer 1977 not only incorporates mic, line, and instrument D.I. with 66dB of stepped gain, enabling you to make ultra-clean, transparent, and precise recordings, sweeten up dull audio, or perfect your guitar sound, but also offers mic matching via switched impedance to bring out the best in every mic in your studio. Whether using a high-end mic, ribbon mic, or even your dullest mic, you will be able to find its sweet spot.

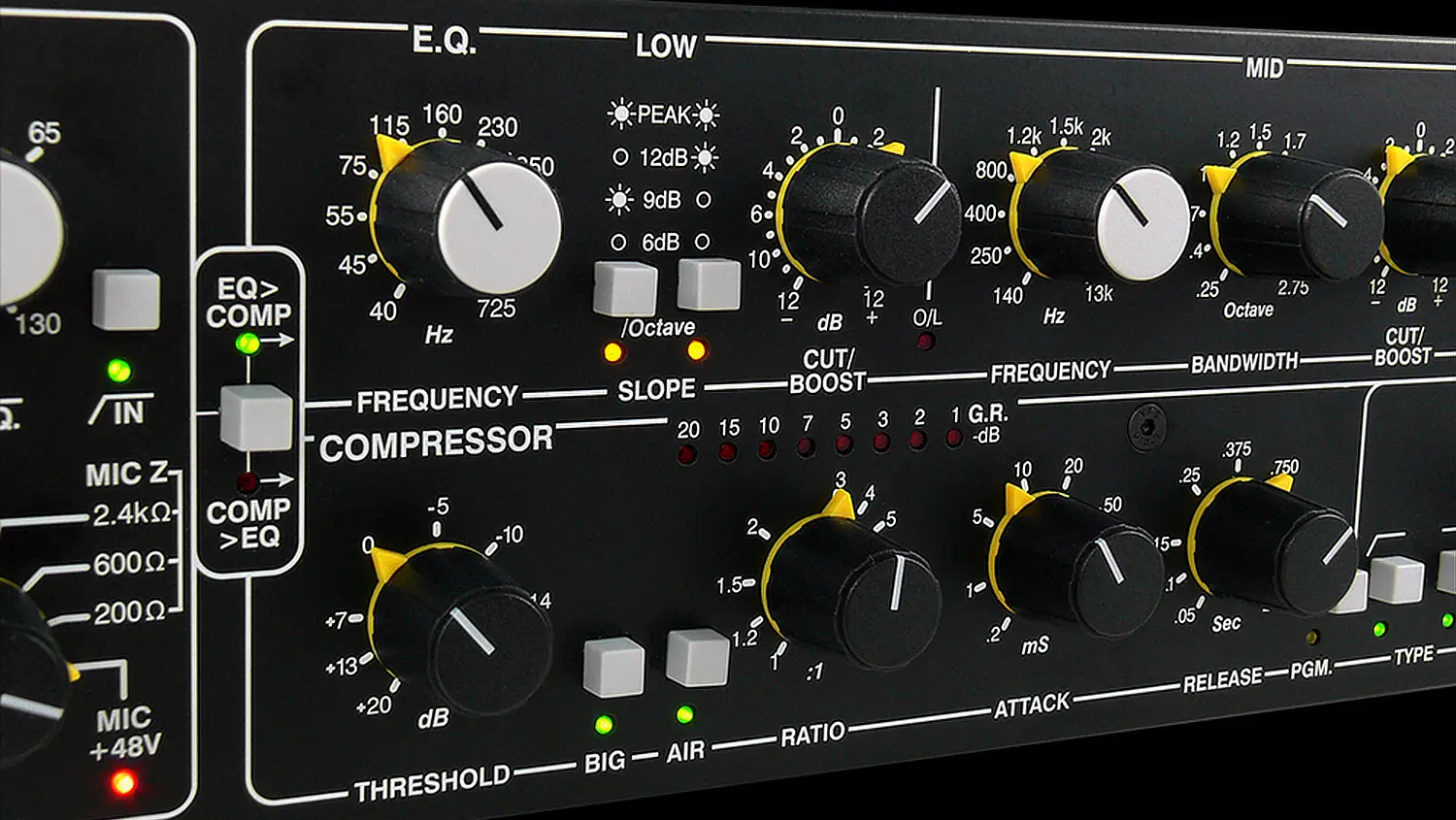

The Drawmer 1977 incorporates a true ‘parametric’ equaliser inspired by 1970s-era analogue gear. It features three bands of fully variable frequency control, offering cut and boost of +/-12dB, and a fully variable bandwidth control for the mid band. This makes it incredibly versatile, capable of everything from subtle fine-tuning to tone-sculpting problematic recordings, and, of course, anything in between.

The engineer has control over the order of the signal path, allowing it to operate as either Gain-Equaliser-Compressor-Output or Gain-Compressor-Equaliser-Output, each configuration creating a distinctly different tonal quality and coloration.

The full-featured compressor allows you to control the dynamics of your recordings, while our trademark ‘Big’ and ‘Air’ modes help preserve the very deep lows and enhance the sparkling highs that lesser compressors often remove. Additionally, the compressor section includes variable harmonic saturation with a choice of three styles, enabling you to warm up your recordings with complete precision.

The output section includes a wet/dry mix for parallel processing, allowing you to easily dial in how much EQ, compression, and saturation is used with a single knob. It also features an output fade control for adding fade outs or boosting the level to match high-end audio interface input levels, along with a large backlit VU meter for accurate monitoring. Additionally, a Preamp Direct switch bypasses the EQ, compressor, and saturation completely to provide an ultra-clean microphone output.

The result of all these features is a modern take on vintage gear, giving you incredible control over the clarity, tone, and warmth of your recordings, helping you capture perfect audio every time.

Features

• Vintage inspired Channel Strip for the Modern Era.
• A THAT Corporation ultra clean mic preamplifier with 66dB of gain with phantom power and switchable mic impedance for accurate mic matching.
• Separate Line & Mic input XLR’s and pro quality instrument DI input with through output. Plus an XLR for the dedicated ultra clean direct pre-amp output and also for the overall output.
• FETs can be bypassed altogether to provide ultra clean outputs.
• A variable high pass filter control removes any rumble and allows you to tighten up the bottom end Phase reverse.
• Vintage-style three band full parametric EQ which takes it’s inspiration from 1970’s-era analogue gear, with variable frequency, +/-12dB cut and boost and variable bandwidth. Switchable slopes plus low peak settings allows you to adjust the focus and also magnify the bottom and top ends.
• Compressor includes standard controls and also ‘Big’ and ‘Air’ Modes Help to preserve the very deep lows and enhance the sparkling highs.
• Rear panel Side-chain insert point provides even further control.
• 3 types of variable Saturation adds vintage warmth.
• The order of the EQ and Compressor can be swapped and also each can bypassed to allow for comparisons.
• Variable Wet/Dry Mix plus Output Gain knobs give a ‘Parallel E.Q. and Compression’ function without the need for external mixing devices, providing complete and effortless control over the amount of equalisation and compression used and output levels.
• A backlit Analogue V.U. Meter with Switchable +10dB Rescale Mode.
• Time delay relays on the output for clean power up/down.
• Internal Low Hum Toroidal Linear Power Supply with Voltage Selector Switch.
• Classic Drawmer build quality with rugged steel chassis and aluminium front panel.
• Designed and Handmade by Drawmer in the UK.
