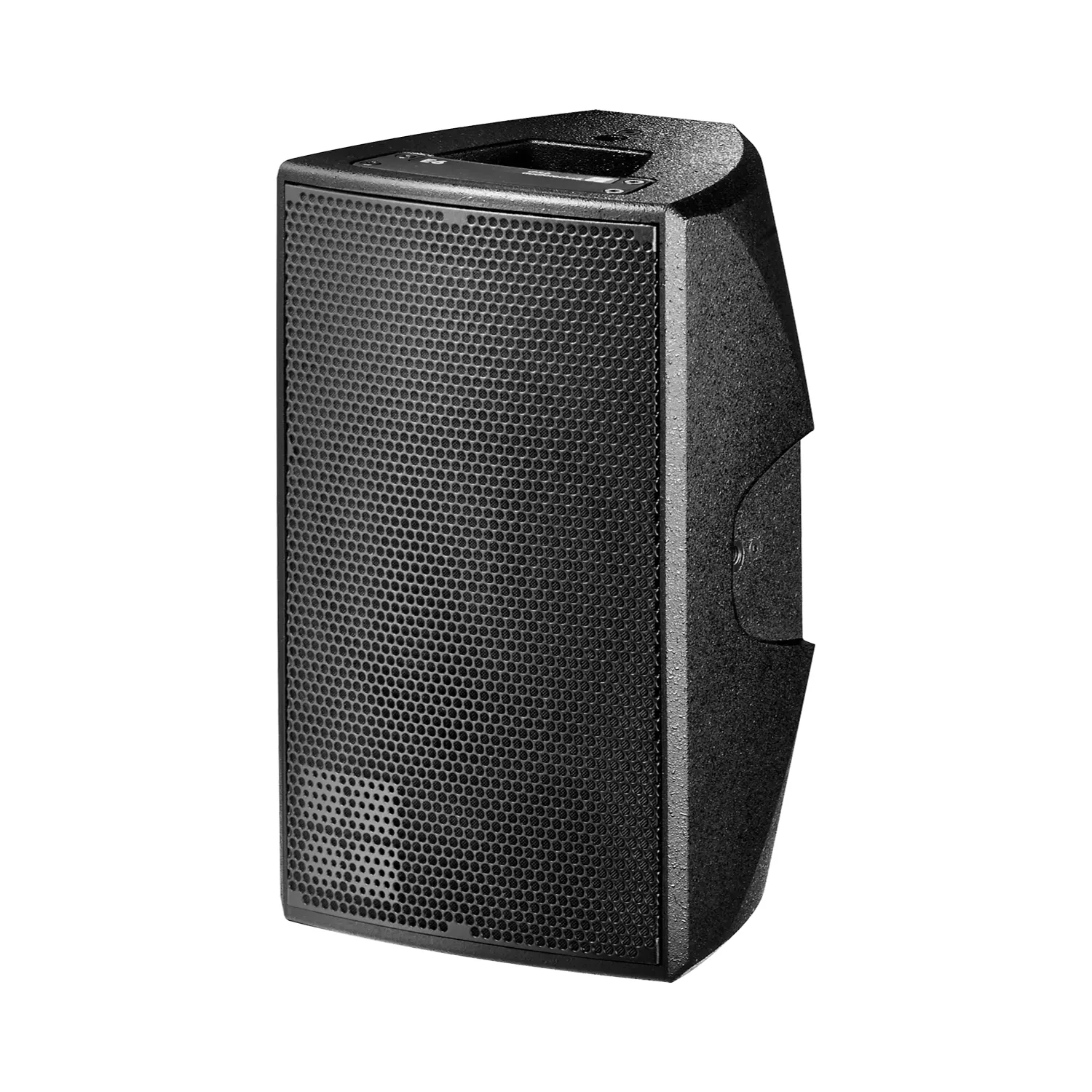

d&b Audiotechnik E6 Loudspeaker

The d&b Audiotechnik E6 Loudspeaker is a compact, high-performance multipurpose loudspeaker featuring an integrated coaxial driver.

d&b Audiotechnik E6 Loudspeaker

The d&b Audiotechnik E6 Loudspeaker’s 100° x 55° horn can be rotated 90° to provide a 55° x 100° dispersion pattern without tools, allowing for flexible vertical or horizontal mounting. The distinctive cabinet design and wide range of accessories make it easy to deploy in nearly any setting, including stage monitoring. This compact speaker delivers impressive sound quality and is fully compatible with larger models like the E8 and E12.

When paired with an d&b Audiotechnik E12X or other E-Series subwoofer, the d&b Audiotechnik E6 Loudspeaker is capable of delivering powerful music reproduction. The cabinet is finished in durable, impact-resistant paint and includes a handle. Additional options include a Special Colour (SC) version and a Weather Resistant (WR) version, which is rated IP54 for outdoor use. Both versions come with colour-matched metal plates that cover the handle recesses and speaker stand socket for a polished look.

Features

  • Components 6.5″/1″
  • Dispersion 100° x 55° rotatable
  • SPLmax 123 dB

Specifications

  • Frequency response (-5 dB standard): 85 Hz – 20 kHz
  • Frequency response (-5 dB CUT mode): 120 Hz – 20 kHz
  • Max. sound pressure:
    • With 10D: 120 dB
    • With D20/5D/30D: 123 dB
    • With D40/D80/40D: 123 dB
  • Cabinets per amplifier channel: 5
  • Loudspeaker data:
    • Configuration: 2-way compact coaxial loudspeaker
    • Nominal impedance: 20 Ω
    • Power handling capacity (RMS/peak 10 ms): 150/800 W
    • Nominal dispersion angle (h x v): 100° x 55° rotatable to 55° x 100°
    • Components:
      • 6.5″ driver with neodymium magnet
      • 1″ exit compression driver with 1.75″ coil and rotatable CD horn
      • Passive crossover network
  • Dimensions (H x W x D): 300 x 188 x 175 mm
  • Weight: 5 kg

User Manual

Download the User Manual in PDF format.

Ordering

SKU DBAE6 Categories ,

$4,450 Inc GST
