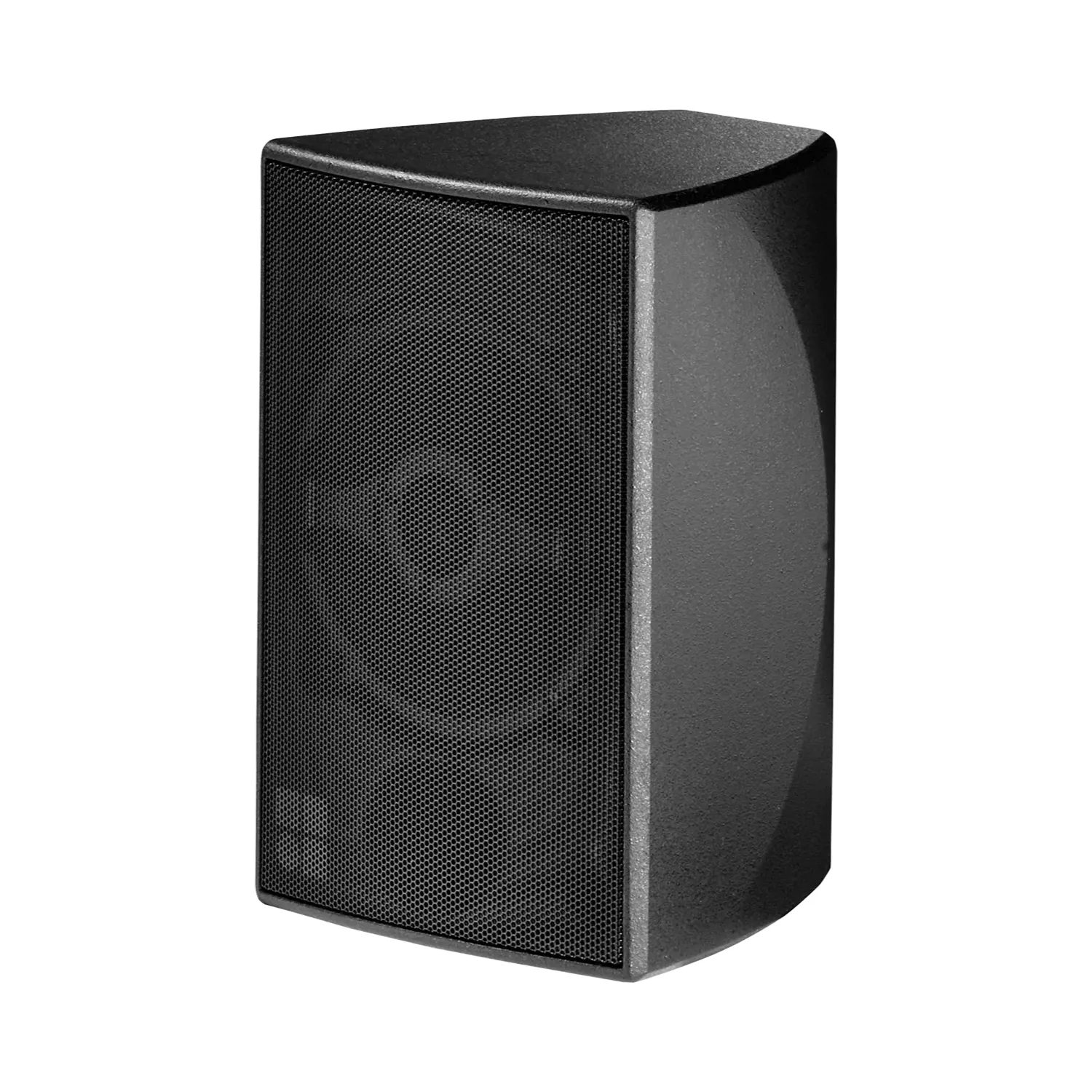

d&b Audiotechnik E5 Loudspeaker

The d&b Audiotechnik E5 is a compact, lightweight 2-way passive loudspeaker, featuring a ferrite LF driver and a coaxially mounted, wide-dispersion dome tweeter.

d&b Audiotechnik E5 Loudspeaker

The d&b Audiotechnik E55 provides a broad, symmetrical dispersion pattern both horizontally and vertically, allowing the cabinet to be mounted in either orientation. Designed for mobile near-field applications, the d&b Audiotechnik E5 is ideal for speech and music reinforcement in settings such as theatres, conferences, industrial presentations, broadcast studios, and as surround sound, delay, and fill systems.

It can be used on its own or paired with various E-Series subwoofers for added depth. The enclosure is a highly compact, bass-reflex design, injection-moulded with a durable, impact-resistant black paint finish. The cabinet is weather protected for outdoor use as standard and is also available in custom colours with the Special Colour (SC) option.

Features

  • Components 5″/1″
  • Dispersion 100° conical
  • SPLmax 117 dB

Specifications

  • Frequency response (-5 dB standard): 85 Hz – 20 kHz
  • Frequency response (-5 dB CUT mode): 130 Hz – 20 kHz
  • Max. sound pressure:
    • With 10D: 116 dB
    • With D20/5D/30D: 117 dB
    • With D40/D80/40D: 117 dB
  • Cabinets per amplifier channel: 4
  • Loudspeaker data:
  • Configuration: 2-way compact coaxial loudspeaker
  • Nominal impedance: 16 Ω
  • Power handling capacity (RMS/peak 10 ms): 60/400 W
  • Nominal dispersion angle (h x v): 100° conical
  • Components:
    • 5″ driver with ferrite magnet
    • 1″ dome tweeter coaxially mounted
    • Passive crossover network
  • Dimensions: 230mm x 154mm x 155mm
  • Weight: 2.7 kg

User Manual

Download the User Manual in PDF format.

Ordering

SKU DBAE5 Categories ,

$2,069 Inc GST
