The d&b Audiotechnik E15X Subwoofer is a compact, lightweight, high-performance subwoofer designed for use with d&b E-Series loudspeakers.

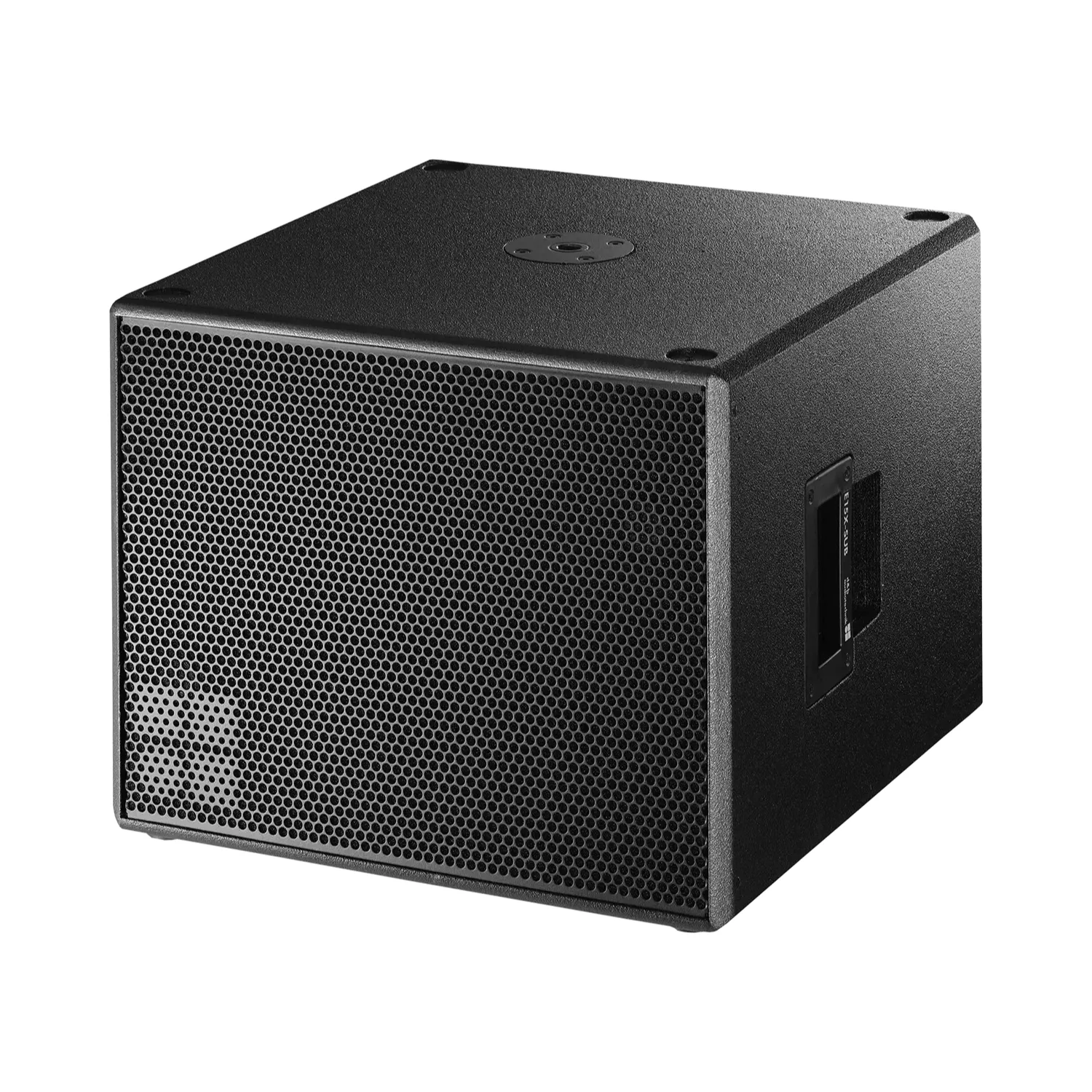

d&b Audiotechnik E15X Subwoofer
Featuring an integrated passive crossover network, the d&b Audiotechnik E15X Subwoofer can operate in parallel with E12 or E12-D loudspeakers on the same amplifier channel, significantly boosting low-frequency headroom and bandwidth. Alternatively, it can run in Active mode with its own amplifier channel, with no adjustments needed, allowing it to supplement any E-Series cabinet.
The d&b Audiotechnik E15X Subwoofer cabinet is made from durable marine plywood, finished with impact-resistant paint, and includes a pair of handles and an M20 threaded flange on top for the d&b loudspeaker stand winder. Available in Special Colour (SC) and Weather Resistant (WR) versions, the WR option is IP55-rated for dependable performance in varying outdoor conditions.
Features
Components 15″
Dispersion Omni directional
SPLmax 130 dB
Specifications
Frequency response (-5 dB standard): 37 – 140 Hz
Frequency response (-5 dB 100 Hz mode): 37 – 100 Hz
Max. sound pressure:
With 10D: 127 dB
With D20/5D/30D: 130 dB
With D40/D80/40D: 130 dB
Cabinets per amplifier channel: 2
Loudspeaker data:
Configuration: Compact subwoofer
Nominal impedance: 8 Ω
Power handling capacity (RMS/peak 10 ms): 300/1600 W
