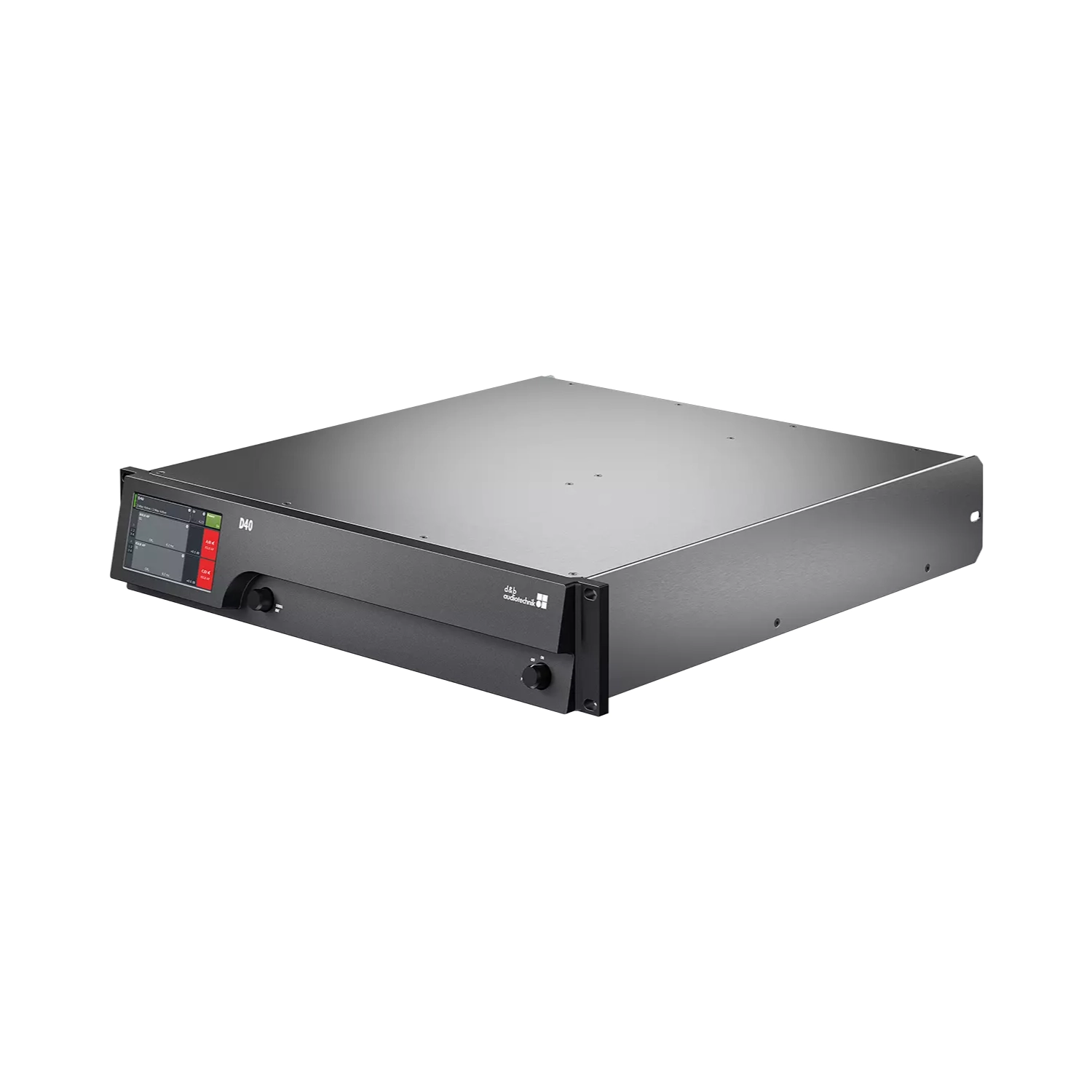

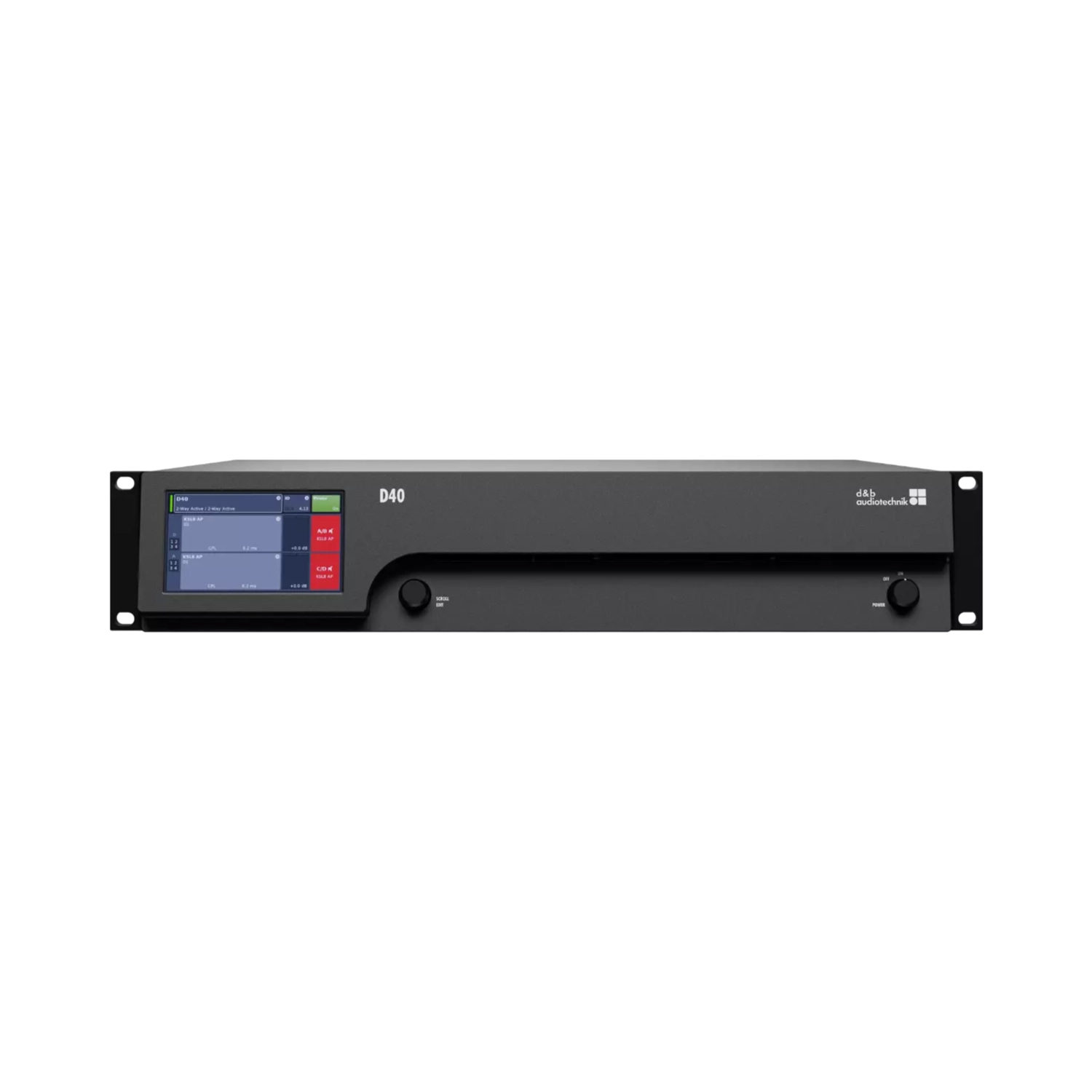

d&b Audiotechnik D40 Amplifier

The d&b Audiotechnik D40 Amplifier is a four-channel Class D mobile amplifier delivering the power density needed for high-efficiency d&b systems, including the KSL System, V-Series, Y-Series, and T-Series.

d&b Audiotechnik D40 Amplifier

The d&b Audiotechnik D40 Amplifier offers comprehensive loudspeaker management with switchable filters, user-defined equalisation, and delay capabilities for precise system tuning.

Enhanced energy-saving features, high power efficiency, and Automatic Wake-Up help reduce resource consumption and meet environmental responsibility standards.

The d&b Audiotechnik D40 Amplifier supports up to eight input channels, with four analogue and four AES3 digital channels, each with corresponding link outputs. Each input channel can be routed to any output channel, providing versatile routing options.

A switch-mode power supply with automatic mains range selection and active Power Factor Correction (PFC) ensures a clean current draw and stable performance, even under challenging mains conditions.

Connection to the d&b Remote network is available via Ethernet using the Open Control Architecture protocol (AES70/OCA). The d&b Audiotechnik D40 Amplifier can be controlled through the integrated web interface, accessible via a browser, or with the d&b R1 Remote control software.

For compatible d&b loudspeakers, the d&b Audiotechnik D40 Amplifier’s LoadMatch feature maintains tonal balance even with cable lengths of up to 70 m (230 ft).

Features

  • Maximum output power
    4 x 2400/2000 W into 4/8 Ω
  • Maximum output voltage/current
    180 Vpeak / 35 Apeak
  • Operating and Monitoring display, Color TFT touchscreen, 4.3″ / 480 x 272 pixel

Specifications

  • Digital Signal Processing
    • Equalizer: 2 x 16-band PEQ/notch/shelving/asymmetric
    • Latency: Analog and digital inputs – 0.3 ms
    • Delay setting: 0.3 ms – 10 s
    • Configurations: Current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
    • Function switches: d&b loudspeaker-specific circuits
    • Frequency generator: Pink noise or sine wave (10 Hz – 20 kHz)
  • Controls and indicators
    • POWER: Mains power switch
    • SCROLL/EDIT: Digital rotary encoder
    • Display: Colour TFT touchscreen, 4.35″ (480 x 272 pixels)

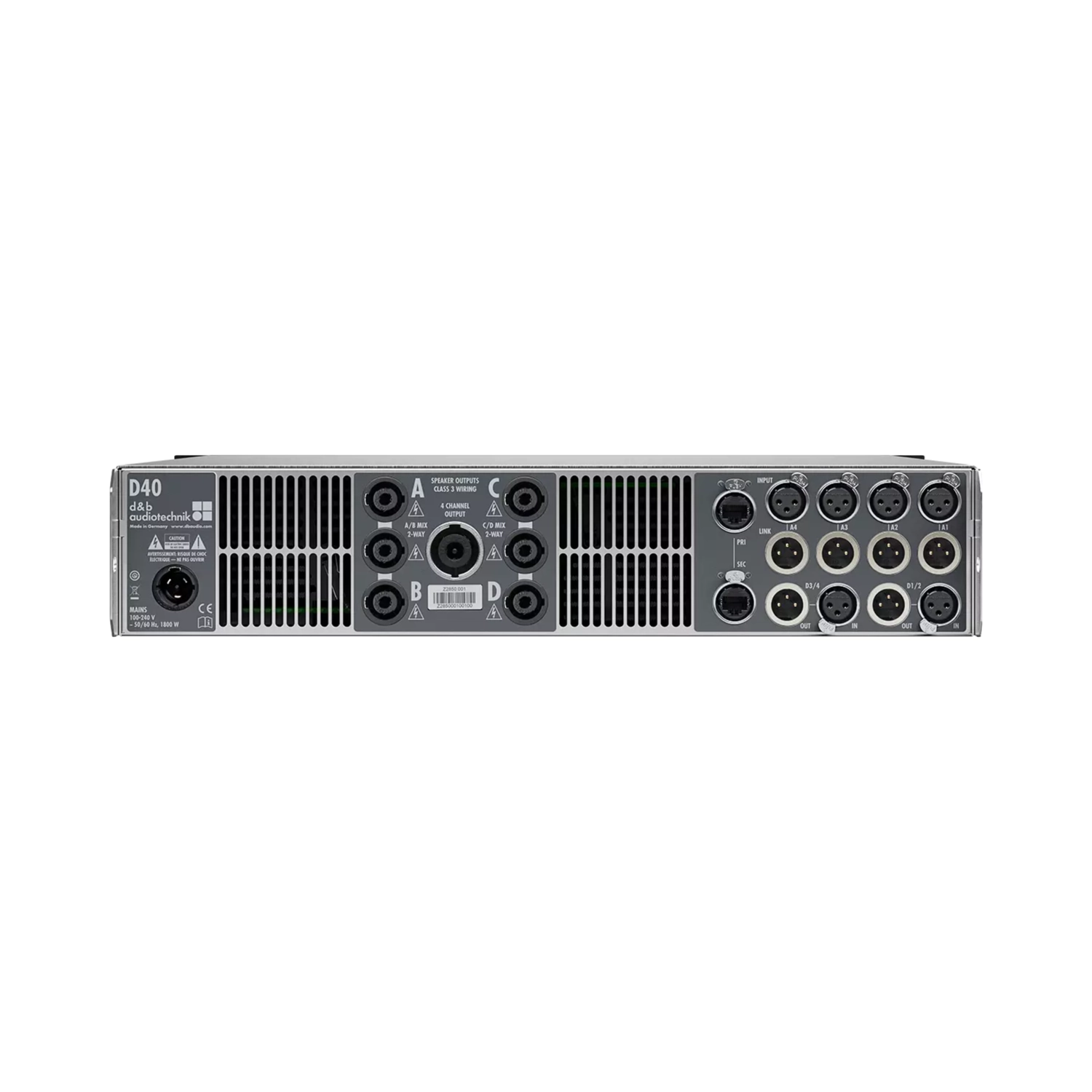

  • Connectors
    • Sampling frequency Digital AES/EBU: 44.1, 48, 96, 192 kHz
    • INPUT ANALOG (A1 – A4): 3-pin XLR female
    • ANALOG LINK (A1 – A4): 3-pin XLR male
    • INPUT DIGITAL (D1/2, D3/4): 3-pin XLR female, AES3
    • DIGITAL LINK (Output): 3-pin XLR male
    • Speaker outputs A/B/C/D: NL4
    • Mix TOP/SUB / 2-Way Active output A/B and C/D: NL4
    • 4 Channel output: NL8
    • ETHERNET: 2 x RJ45, 1 Gbit/100 Mbit Ethernet
    • Mains connector: powerCON® TRUE1 TOP
  • Data (linear setting with subsonic filter)
    • Maximum output power per channel (THD+N < 0.5%, all channels driven):
      • CF = 12 dB at 4 / 8 ohms – 4 x 2400/2000 W
  • Power supply
    • Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
    • Rated mains voltage: 100 – 127 V / 208 – 240 V, 50 – 60 Hz
  • Dimensions: 2 RU x 482.6mm x 512mm
  • Weight: 13.8 kg

User Manual

Download the User Manual in PDF format.

Ordering

$22,899 Inc GST
