d&b Audiotechnik 5S Loudspeaker

Name: d&b Audiotechnik 5S Loudspeaker
Brand: Production Audio
SKU: DBA5S
Price: 1799 AUD
Availability: InStock

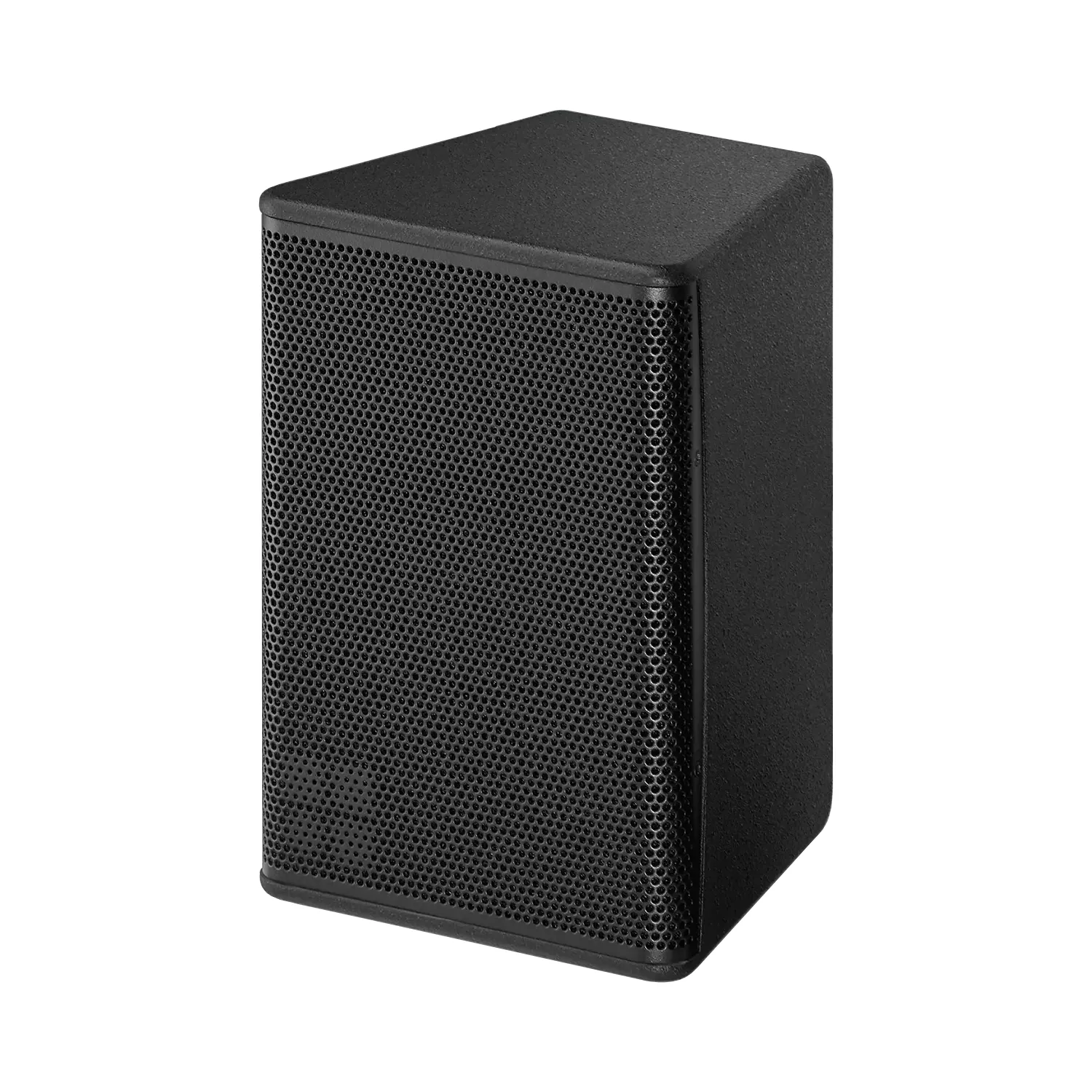

The d&b Audiotechnik 5S is a lightweight, 2-way passive loudspeaker featuring a ferrite LF driver and a coaxially mounted, wide-dispersion dome tweeter.

d&b Audiotechnik 5S Loudspeaker

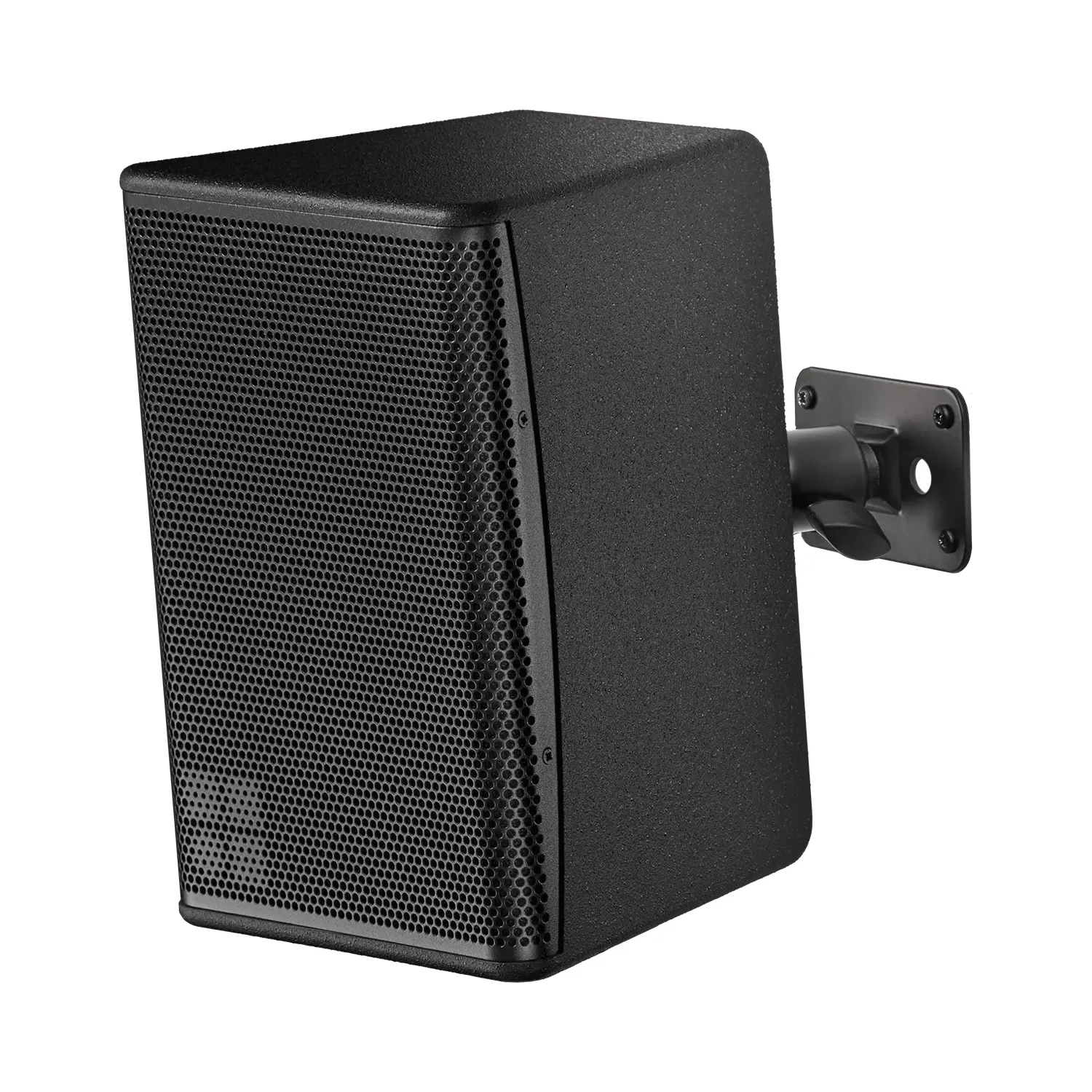

The d&b Audiotechnik 5S Loudspeaker uses a 5” driver in a compact bass-reflex enclosure, delivering symmetrical dispersion across both horizontal and vertical planes, allowing flexible mounting options. It can function as a standalone unit or be paired with subwoofers from the xS-Series.

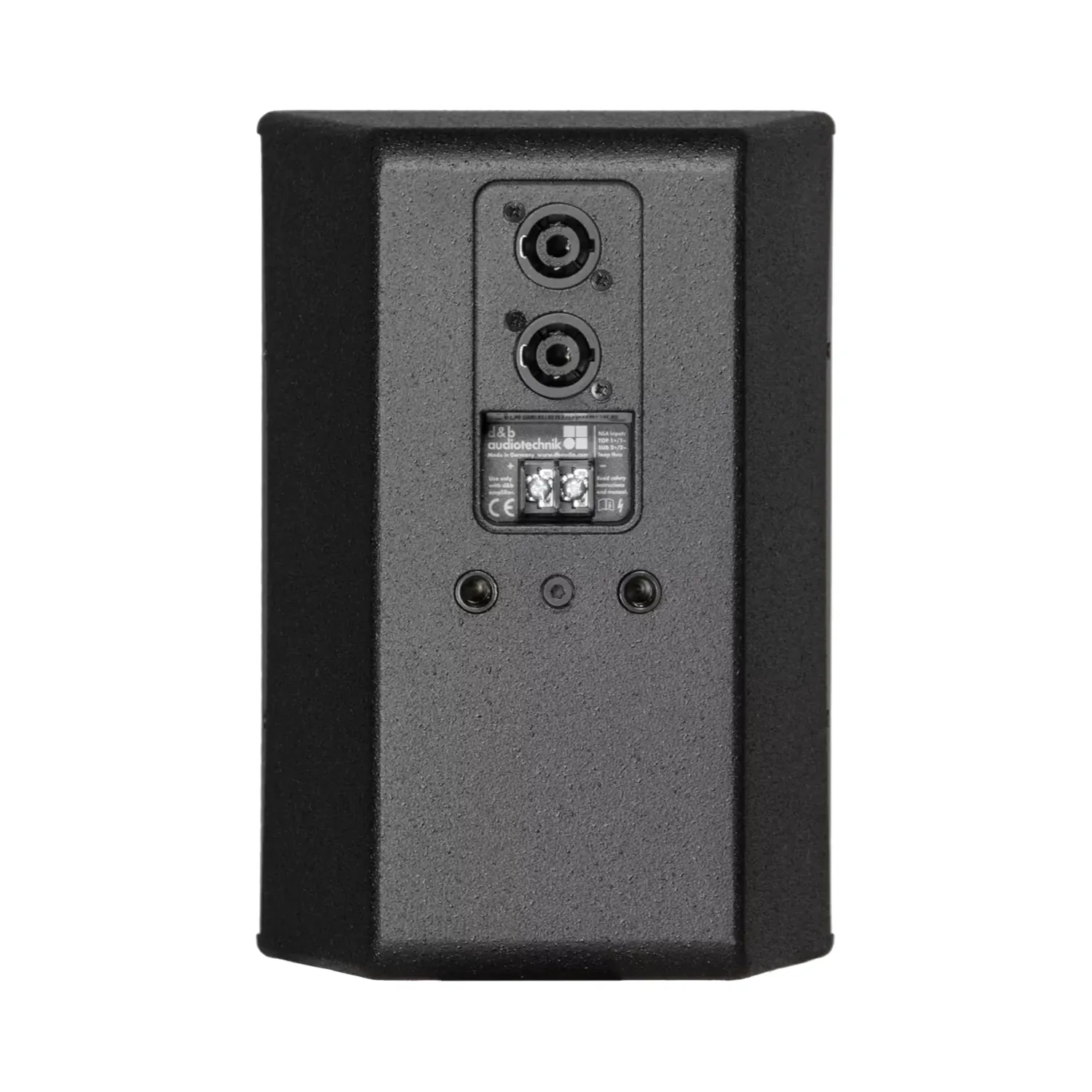

The injection-moulded enclosure is impact- and weather-resistant (IP34), with a choice of black or white paint finishes. The front is protected by a sturdy metal grille backed with acoustically transparent foam. On the rear panel, there are two M8 threaded inserts, two NL4 connectors, and a two-pole screw terminal block. The cabinet and most accessories are also available in the Special Colour (SC) option, customisable in any RAL colour.

Features

Components 5″/1″
Dispersion 100° conical
SPLmax 118 dB

Specifications

Frequency response (-5 dB standard): 80 Hz – 20 kHz
Frequency response (-5 dB CUT mode): 130 Hz – 20 kHz
Max. sound pressure:
- with 10D: 117 dB
- with D20/5D/30D: 118 dB
- with D40/D80/40D: 118 dB
Cabinets per amplifier channel: 4
Loudspeaker data
- Configuration: Installation-specific 2-way compact coaxial loudspeaker
- Nominal impedance: 16 Ω
- Power handling capacity (RMS/peak 10 ms): 60/400 W
- Nominal dispersion angle (h x v): 100° conical
- Components:
  - 5″ driver
  - 1″ dome tweeter coaxially mounted
  - Passive crossover network
- Connections: 2 x NL4, screw terminal block
Dimensions: 240mm x 164mm x 160mm
Weight: 2.5 kg
