d&b Audiotechnik 4S Loudspeaker

Name: d&b Audiotechnik 4S Loudspeaker
Brand: Production Audio
SKU: DBA4S
Price: 1479 AUD
Availability: InStock

The d&b Audiotechnik 4S Loudspeaker is a lightweight, 2-way passive loudspeaker featuring a neodymium LF driver and a coaxially mounted, wide-dispersion dome tweeter.

d&b Audiotechnik 4S Loudspeaker

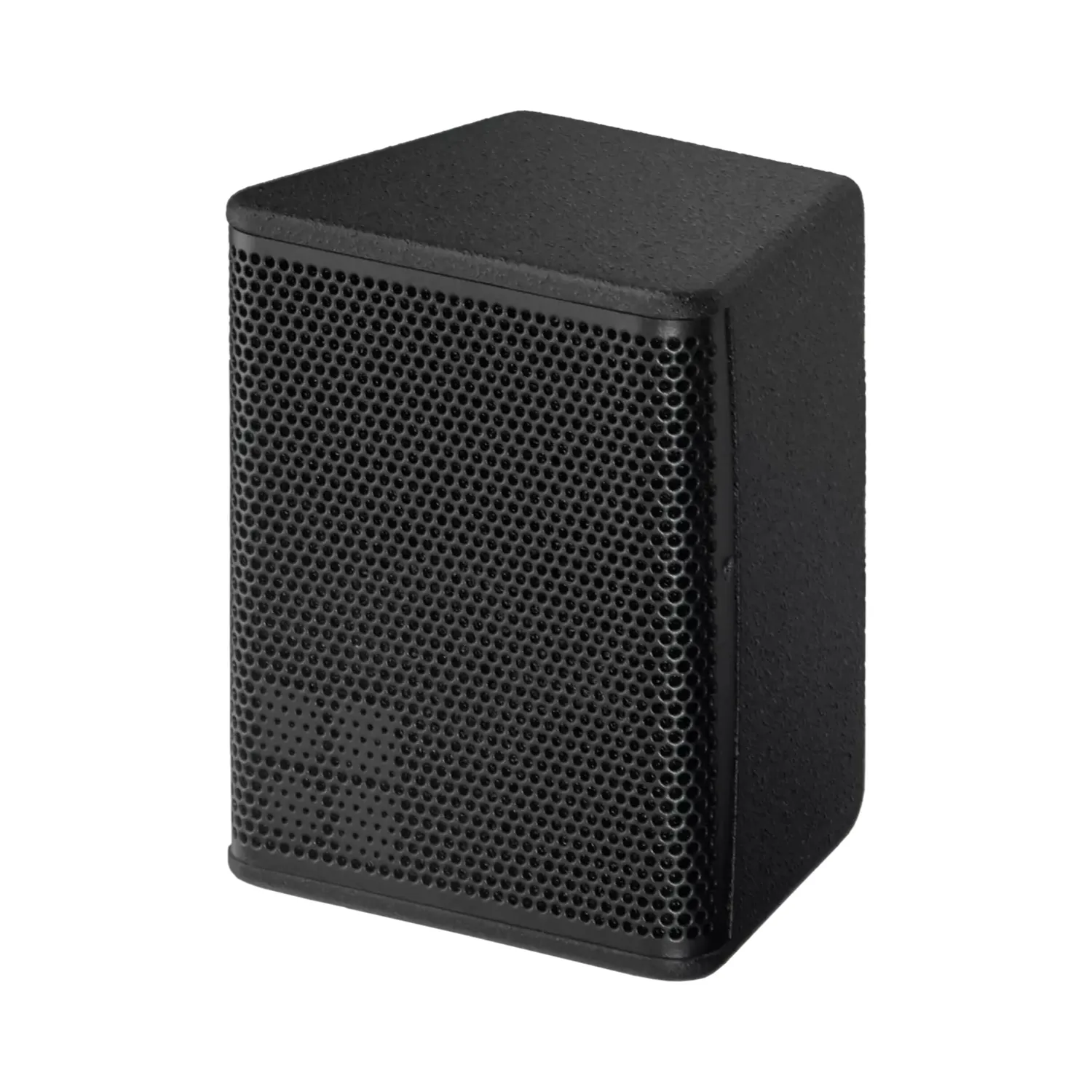

The d&b Audiotechnik 4S Loudspeaker has a 4” driver in a compact, sealed enclosure, providing symmetrical dispersion in both horizontal and vertical planes, allowing versatile mounting. It can be used as a standalone unit or paired with subwoofers from the xS-Series.

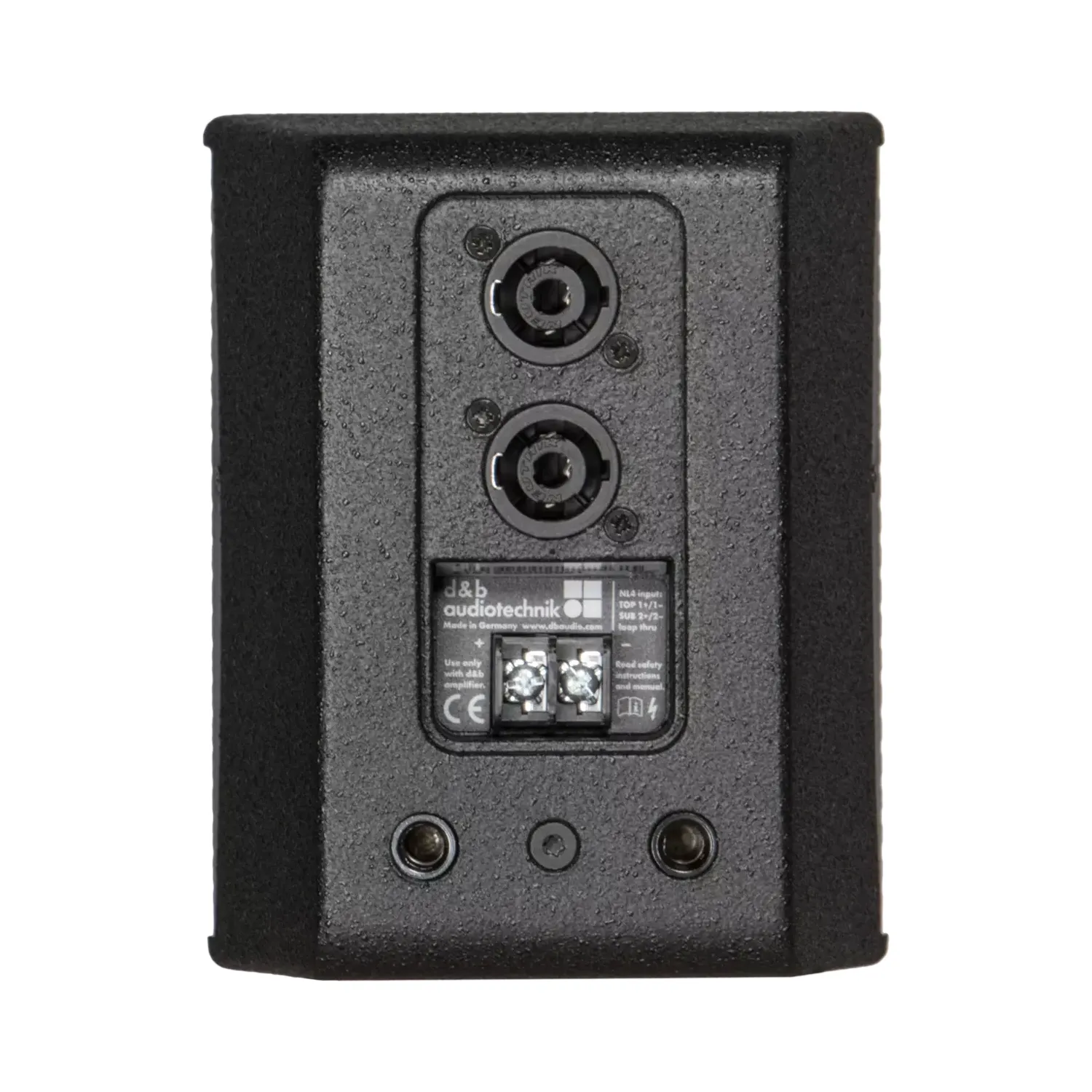

The enclosure is injection-moulded with a weather-resistant (IP34) black or white paint finish. The front is protected by a durable metal grille backed with acoustically transparent foam. The rear panel includes two M8 threaded inserts, two NL4 connectors, and a two-pole screw terminal block. The cabinet and most accessories are also available in the Special Colour (SC) option, with finishes in any RAL colour.

Features

Components 4″/0.75″
Dispersion 100° conical
SPLmax 115 dB

Specifications

Frequency response (-5 dB standard): 130 Hz – 20 kHz
Frequency response (-5 dB CUT mode): 180 Hz – 20 kHz
Max. sound pressure:
- with 10D: 114 dB
- with D20/5D/30D: 115 dB
- with D40/D80/40D: 115 dB
Cabinets per amplifier channel: 4
Loudspeaker data
- Configuration: Installation-specific 2-way compact coaxial loudspeaker
- Nominal impedance: 16 Ω
- Power handling capacity (RMS/peak 10 ms): 60/400 W
- Nominal dispersion angle (h x v): 100° conical
- Components:
  - 4″ driver with neodymium magnet
  - 0.75″ dome tweeter coaxially mounted
  - Passive crossover network
- Connections: 2 x NL4, screw terminal block
Dimensions: 150mm x 120mm x 102mm
Weight: 1 kg
