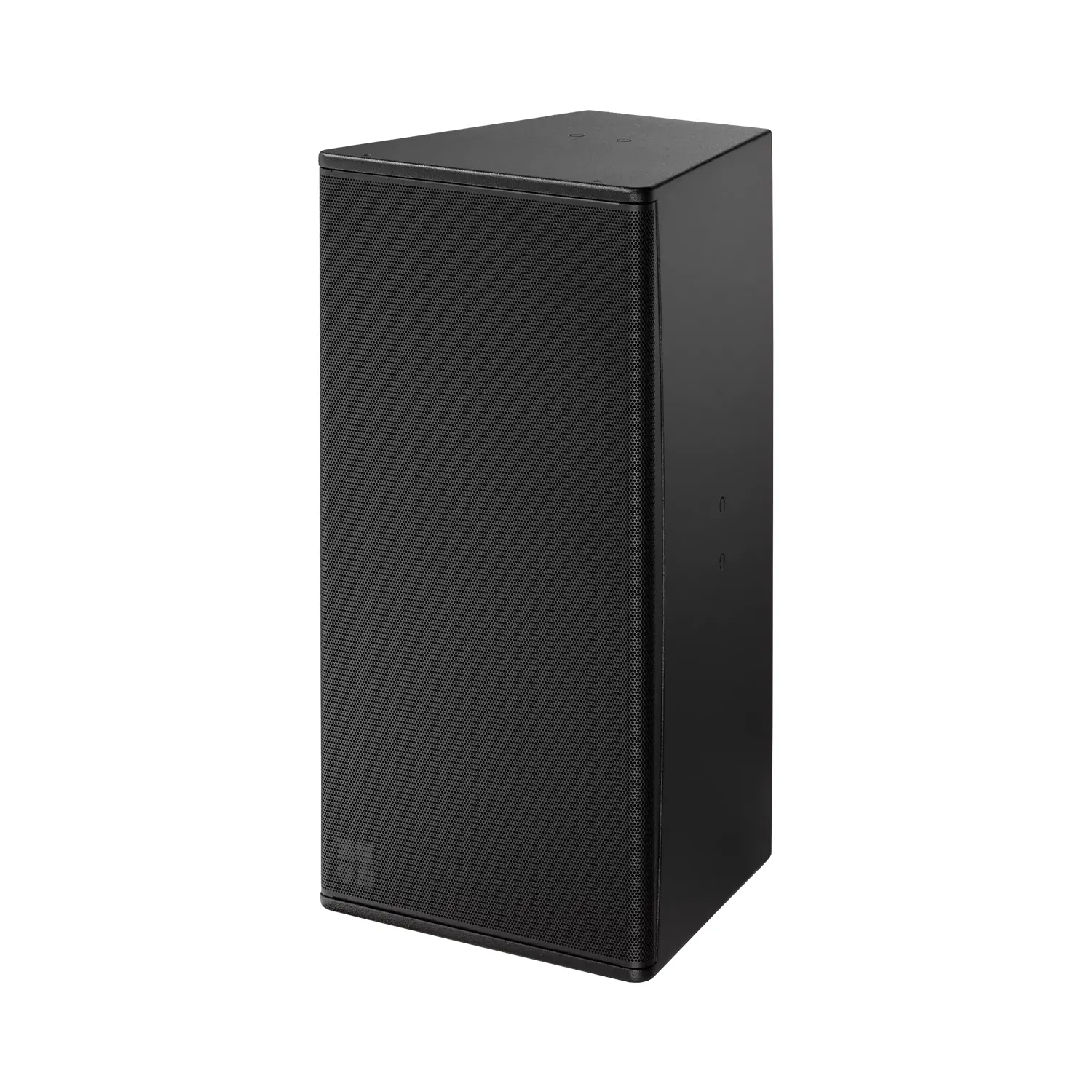

d&b Audiotechnik 24S Loudspeaker

Designed for a variety of permanent installations, the dipolar arrangement of the 12” drivers in the d&b Audiotechnik 24S enables directivity control down to approximately 500 Hz in the plane of the dipole. Its optimised port design and generous cabinet volume allow for enhanced low-frequency reproduction.

The d&b Audiotechnik 24S-D is a high-performance full range 2-way passive loudspeaker housing two 12″ drivers in a bass-reflex enclosure with a 1.4″ exit compression driver mounted onto a large rotatable CD horn, intended for a wide range of permanently installed applications. The 24S-D is the wider horizontal dispersion option of the 24S loudspeaker.

With a frequency range from 55 Hz to 18 kHz, the 24S functions as a standalone full-range system or can be paired with d&b subwoofers. It is suitable for ground stacking or flying and has a rotatable HF horn that can be turned 90° for horizontal orientation.

Built from marine plywood with an impact-resistant paint finish, the cabinet is protected by a rigid metal grille. Each top, bottom, and side panel includes M10 threaded inserts for d&b rigging hardware attachment.

Rated Ball Impact Resistant according to DIN 18032-3, it’s ideal for sports and multipurpose halls. The Weather Resistant (WR) option adds an IP55 rating, enabling reliable performance in variable environmental conditions, and comes with a fixed cable.

Features

• Components 2 x 12″/1.4″
• Dispersion   75° x 45°
• SPLmax 138 dB
