d&b Audiotechnik 18S Subwoofer

The d&b Audiotechnik 18S Subwoofer is a compact, high-performance subwoofer designed for use with xS-Series and xA-Series loudspeakers.

d&b Audiotechnik 18S Subwoofer

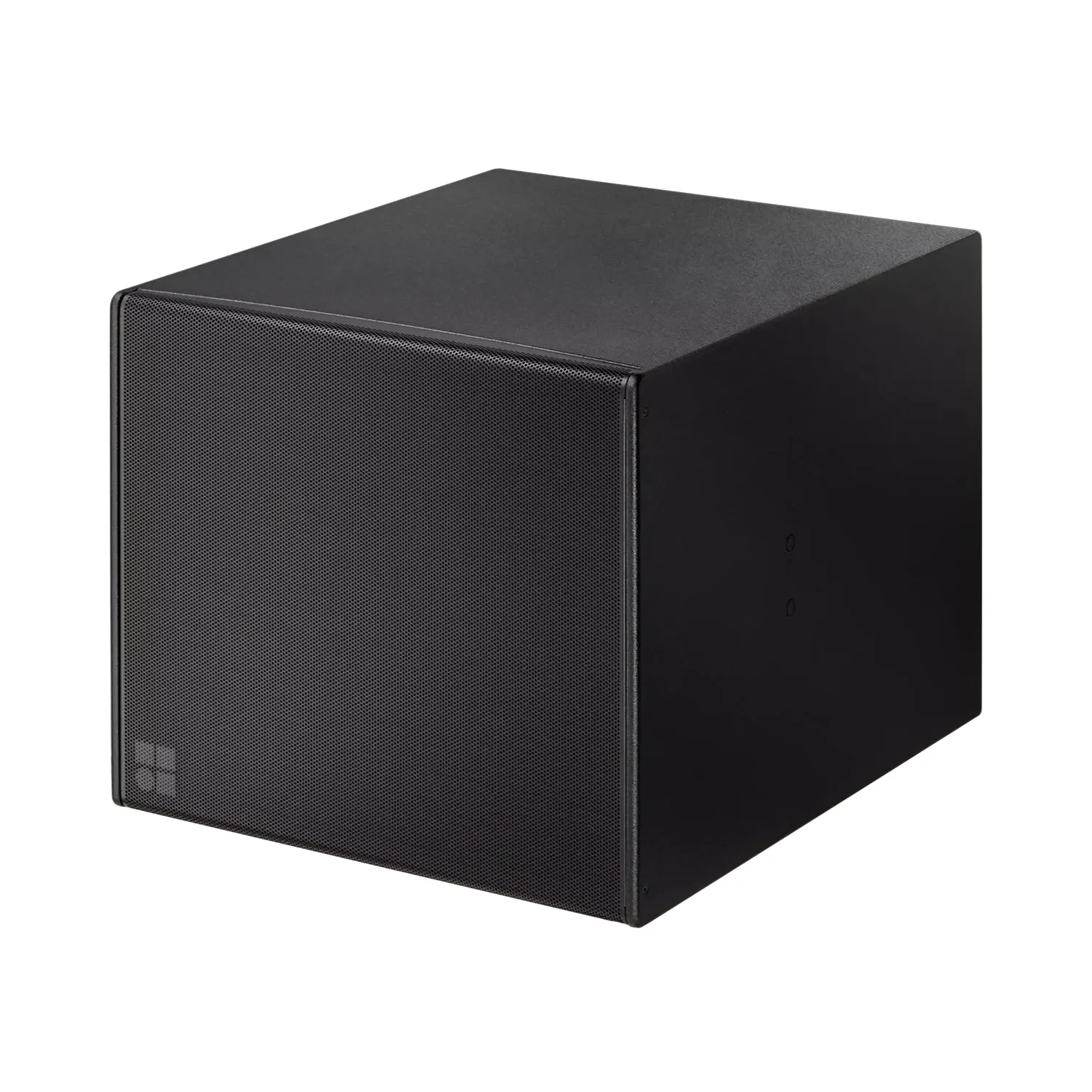

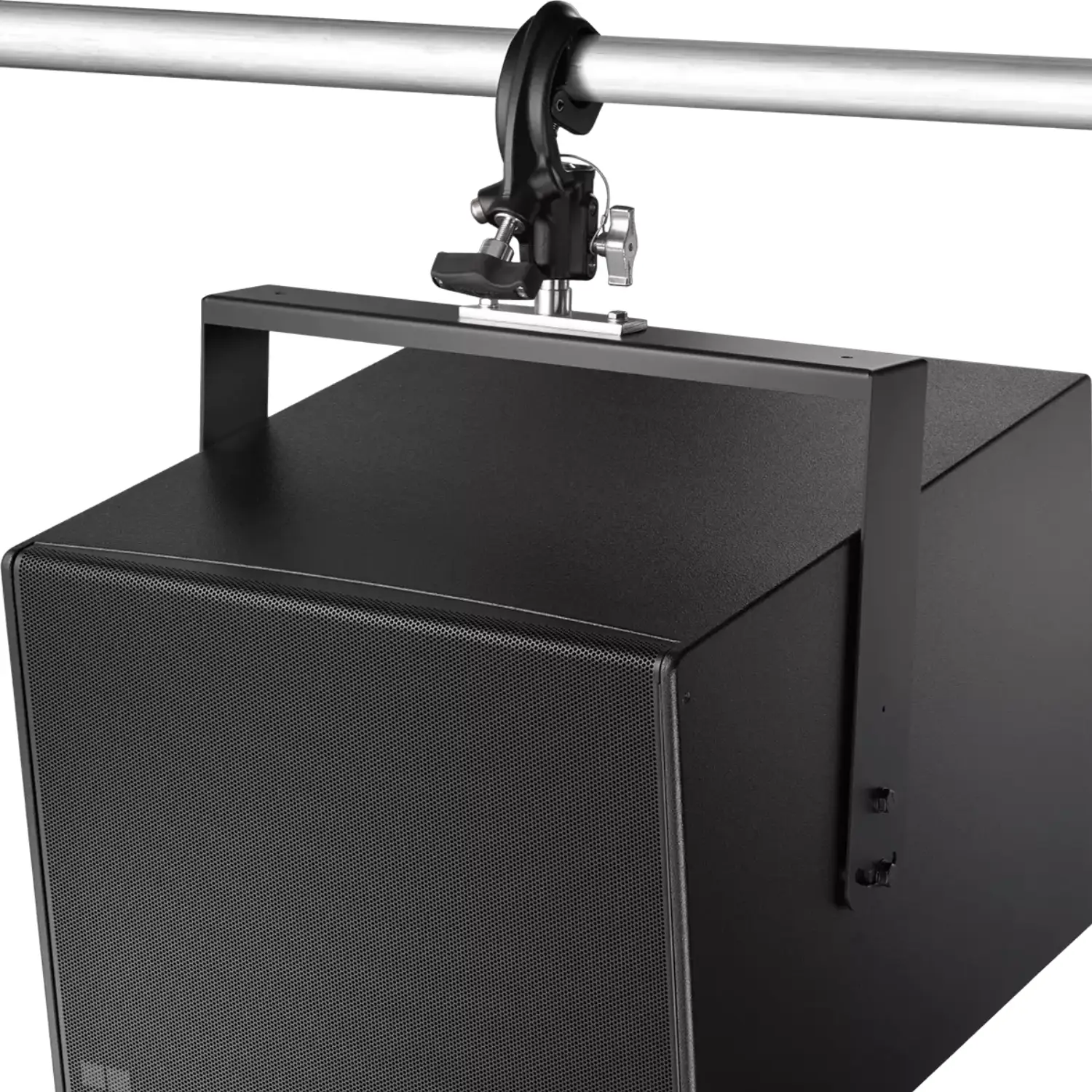

The d&b Audiotechnik 18S Subwoofer features a long-excursion 18″ neodymium driver within a bass-reflex enclosure, suitable for standalone use, stacking, or individual flying. Built from marine plywood with a durable black paint finish, the enclosure is rated Ball Impact Resistant per DIN 18032-3, making it ideal for schools and sports halls.

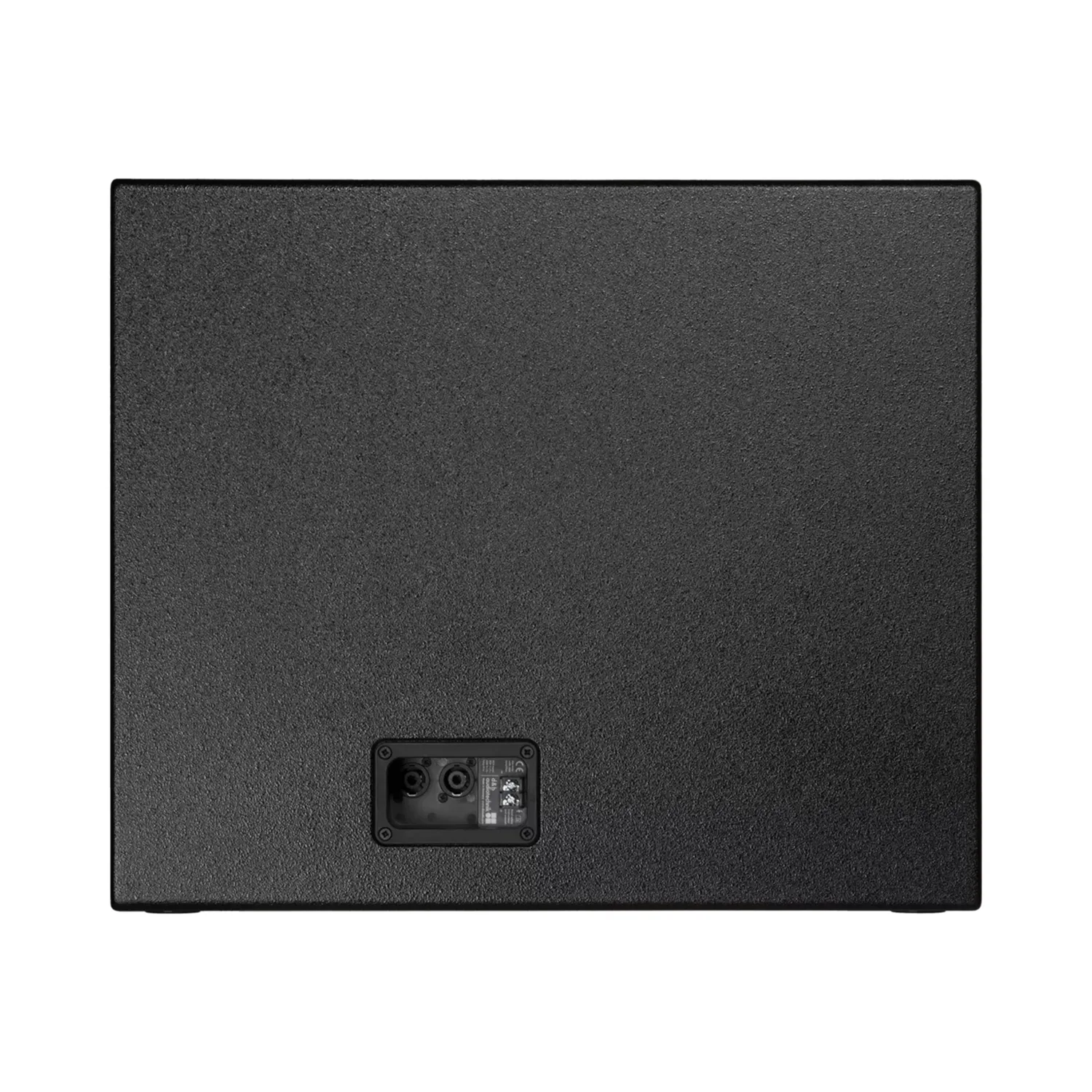

The front of the cabinet is protected by a robust metal grille backed with acoustically transparent foam. M10 threaded inserts are located on the side panels, and the rear panel includes two NL4 connectors and a two-pole screw terminal block. The cabinet and most accessories are also available in the Special Colour (SC) option for custom RAL colours, while the Weather Resistant (WR) option provides an IP55 rating, ensuring reliable performance in varied ambient conditions.

Features

  • Components 18″
  • Dispersion Omni directional
  • SPLmax 132 dB

Specifications

  • Frequency response (-5 dB standard): 37 – 140 Hz
  • Frequency response (-5 dB 100 Hz mode): 37 – 100 Hz
  • Max. sound pressure:
    • with 10D: 129 dB
    • with D20/30D: 132 dB
    • with D40/D80/40D: 132 dB
  • Cabinets per amplifier channel: 2
  • Loudspeaker data
    • Configuration: Installation-specific compact subwoofer
    • Nominal impedance: 8 Ω
    • Power handling capacity (RMS/peak 10 ms): 400/1600 W
    • Components:
      • 18″ driver with neodymium magnet
    • Connections: 2 x NL4, screw terminal block
  • Dimensions: 490mm x 580mm x 700mm
  • Weight: 32 kg

User Manual

Download the User Manual in PDF format.

Ordering

$7,149 Inc GST
