d&b Audiotechnik 18A Subwoofer

The d&b Audiotechnik 18A Subwoofer is a compact, high-performance subwoofer designed for use with xS-Series and xA-Series loudspeakers.

d&b Audiotechnik 18A Subwoofer

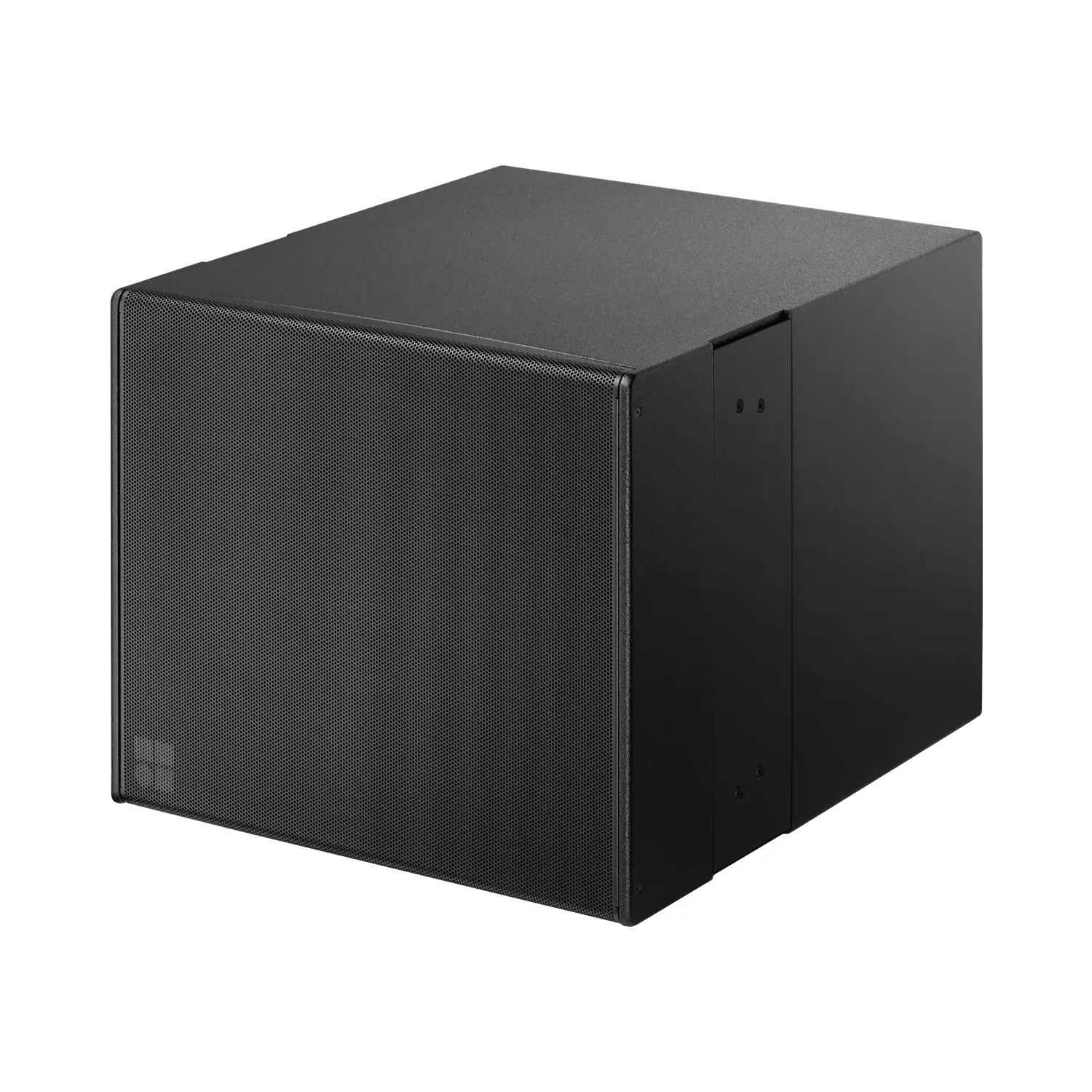

The d&b Audiotechnik 18A Subwoofer features a long-excursion 18″ neodymium driver in a bass-reflex cabinet, suitable for standalone use, stacking, or as a base in a mixed ground stack. It can also be paired with 10A and 10AL loudspeakers in vertical flown arrays.

The enclosure of the d&b Audiotechnik 18A Subwoofer is built from durable marine plywood with an impact-resistant black paint finish, meeting Ball Impact Resistance standards (DIN 18032-3), making it ideal for schools and sports halls. The front of the cabinet is protected by a sturdy metal grille backed with acoustically transparent foam.

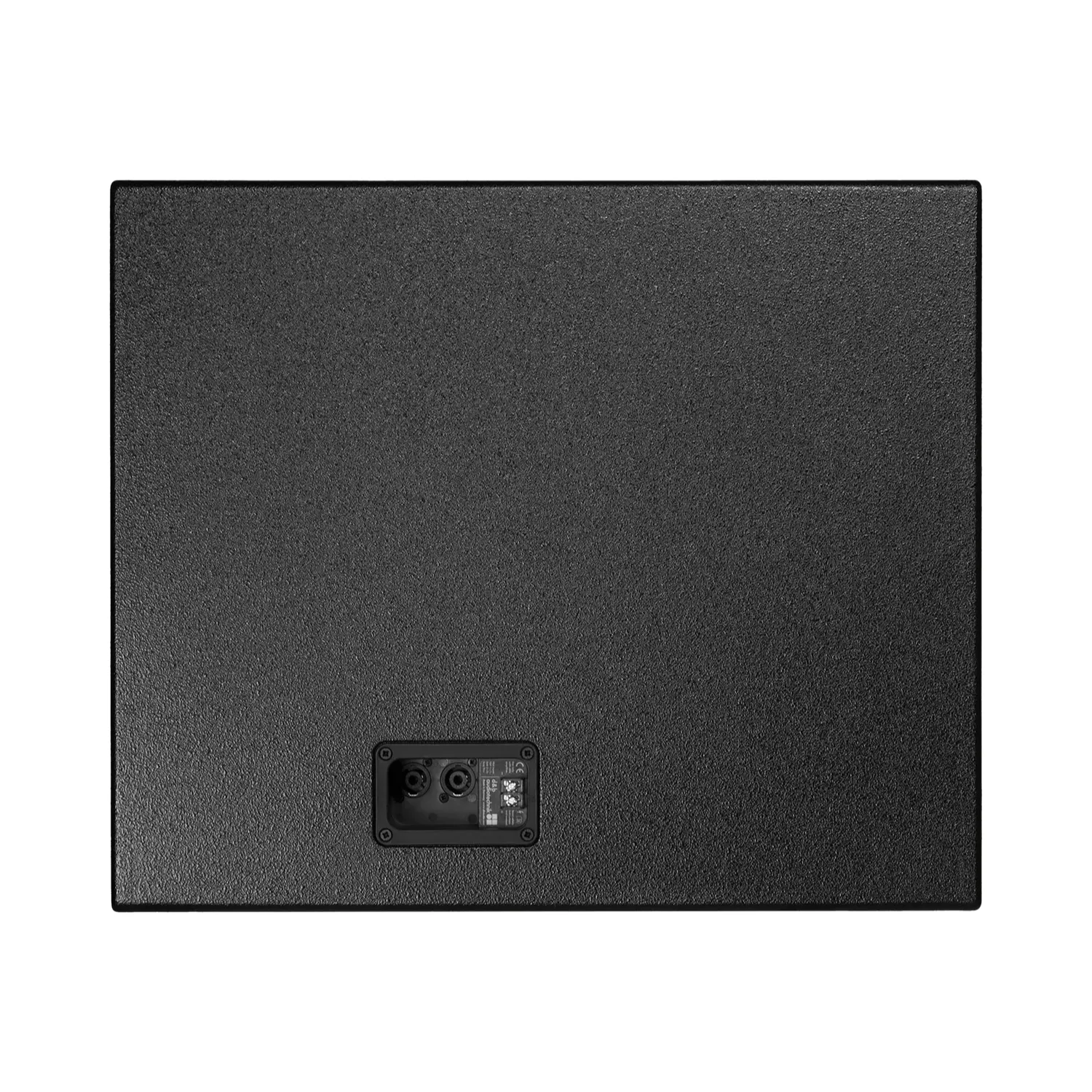

The side panels include an integrated rigging system, while the rear panel offers two NL4 connectors and a two-pole screw terminal block. Available in any RAL colour with the Special Colour (SC) option, the d&b Audiotechnik 18A Subwoofer also comes in a Weather Resistant (WR) version, rated IP55 for reliable performance in challenging outdoor conditions.

Features

  • Components 18″
  • Dispersion Omni directional
  • SPLmax 132 dB

Specifications

  • Frequency response (-5 dB standard): 37 – 140 Hz
  • Frequency response (-5 dB 100 Hz mode): 37 – 100 Hz
  • Max. sound pressure:
    • With 10D: 129 dB
    • With D20/30D: 132 dB
    • With D40/D80/40D: 132 dB
  • Cabinets per amplifier channel: 2
  • Loudspeaker data:
    • Configuration: Installation-specific flyable compact subwoofer
    • Nominal impedance: 8 Ω
    • Power handling capacity (RMS/peak 10 ms): 400/1600 W
    • Components:
      • 18″ driver with neodymium magnet
  • Dimensions: 488mm x 580mm x 700mm
  • Weight: 32 kg

User Manual

Download the User Manual in PDF format.

Ordering

$7,549 Inc GST
