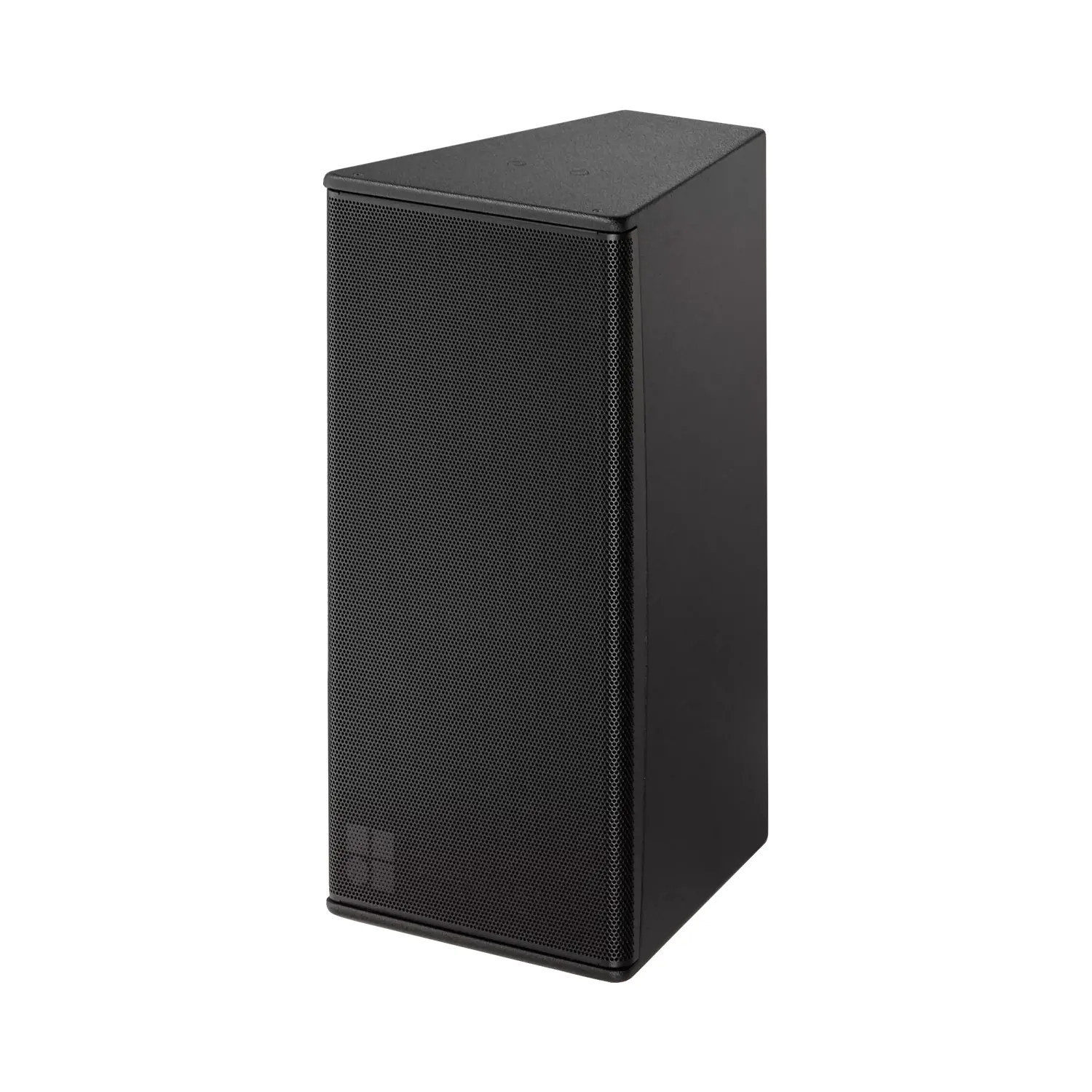

d&b Audiotechnik 10S Loudspeaker

These lightweight passive models use neodymium drivers and large horns, providing precise pattern control with rotatable dispersion options of 75° x 50° and 110° x 55°, respectively. With a frequency response of 60 Hz to 18 kHz, both versions serve as full-range systems and can be paired with various subwoofers from the xS-Series.

The enclosures of the d&b Audiotechnik 10S are crafted from marine plywood with a durable black paint finish and are Ball Impact Resistant per DIN 18032-3, making them ideal for schools and sports halls. The front of the cabinet is protected by a robust metal grille backed with acoustically transparent foam.

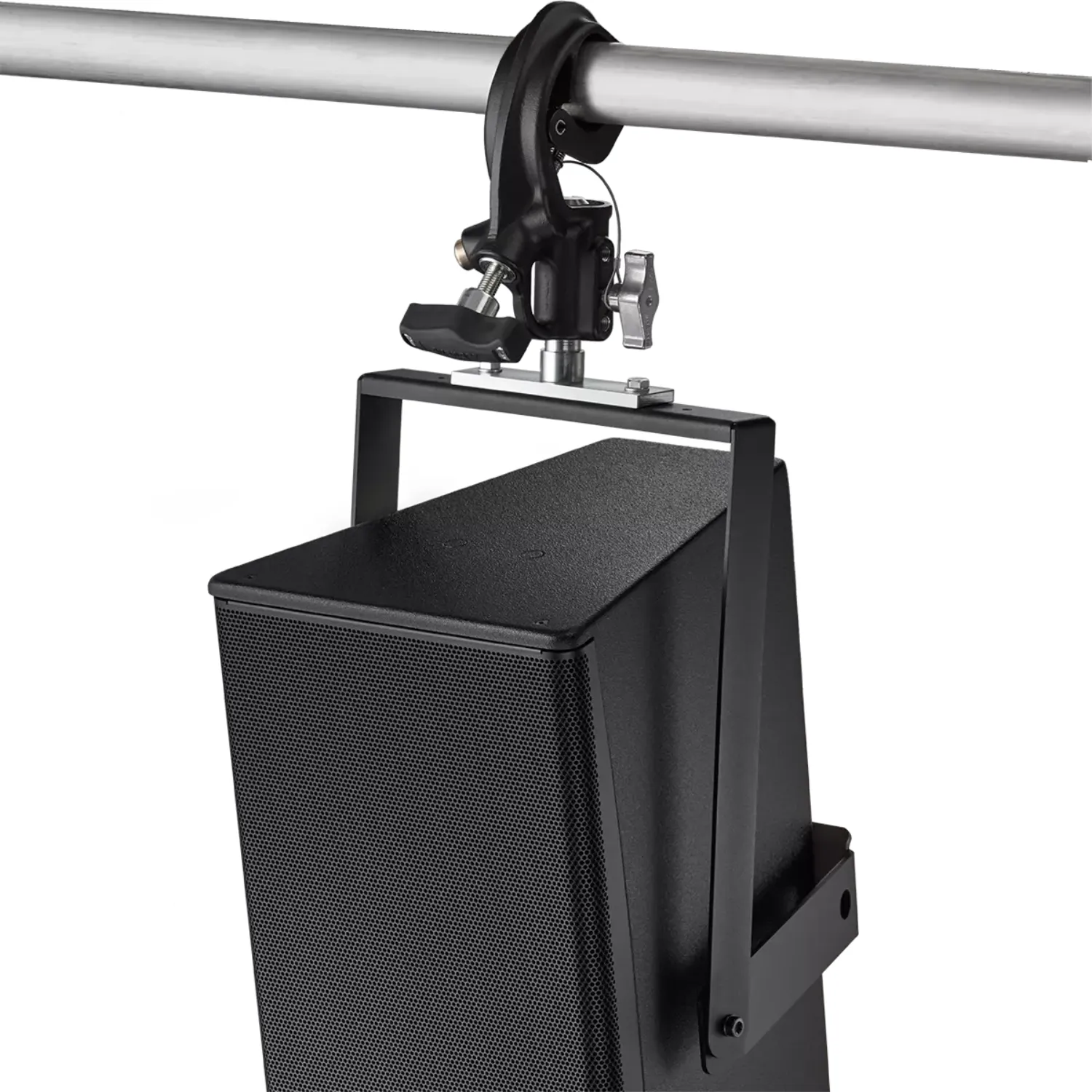

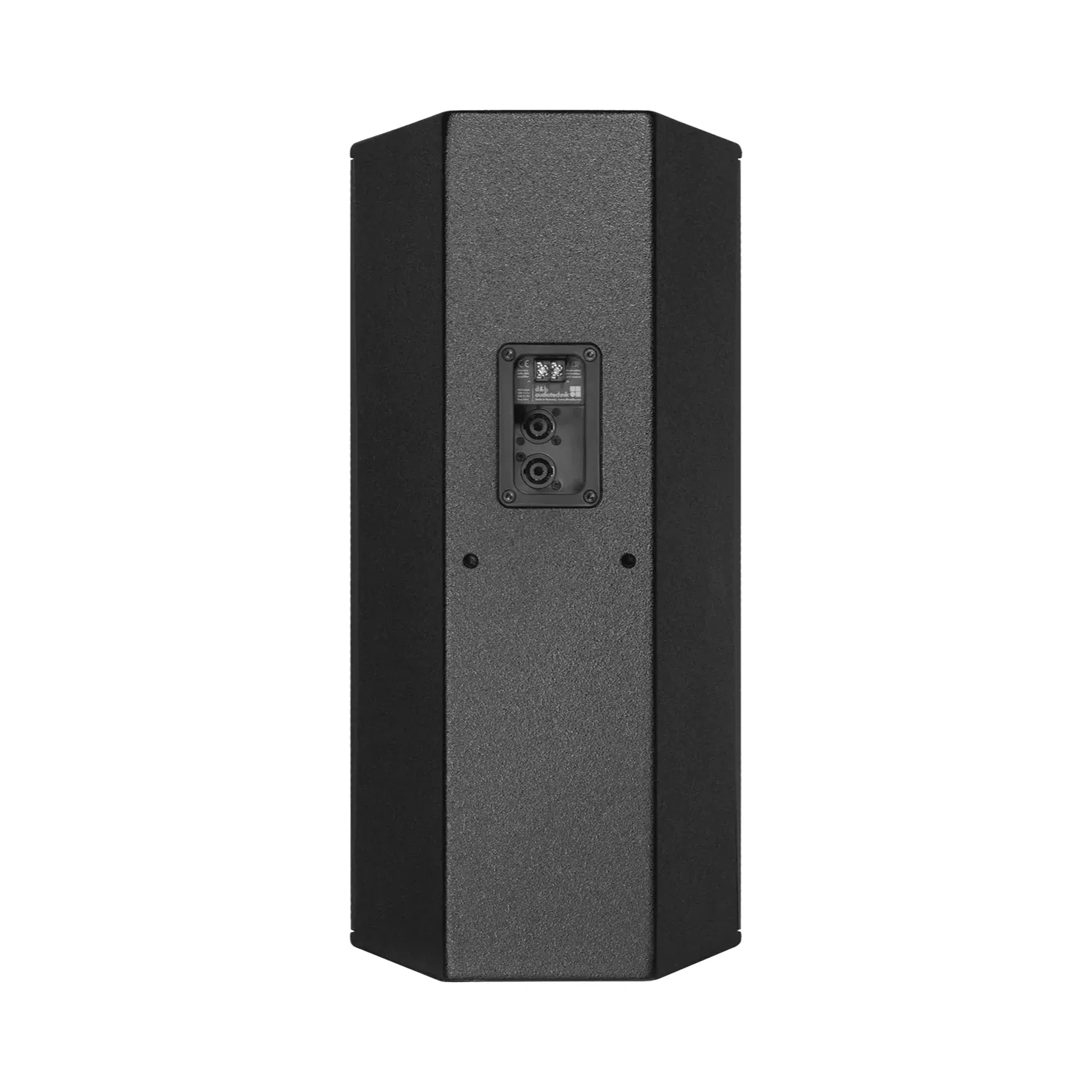

The top and bottom panels include a pair of M10 threaded inserts, while the rear panel provides two M8 threaded inserts, two NL4 connectors, and a two-pole screw terminal block.

The d&b Audiotechnik 10Sis available with the Special Colour (SC) option for custom RAL colours, the loudspeakers also offer a Weather Resistant (WR) option, rated IP55, for reliable performance in changing ambient conditions.

Features

• Components 10″/1.4″
• Dispersion 75° x 50° rotatable
• Dispersion 110° x 55° rotatable (10S-D)
• SPLmax 130 dB
