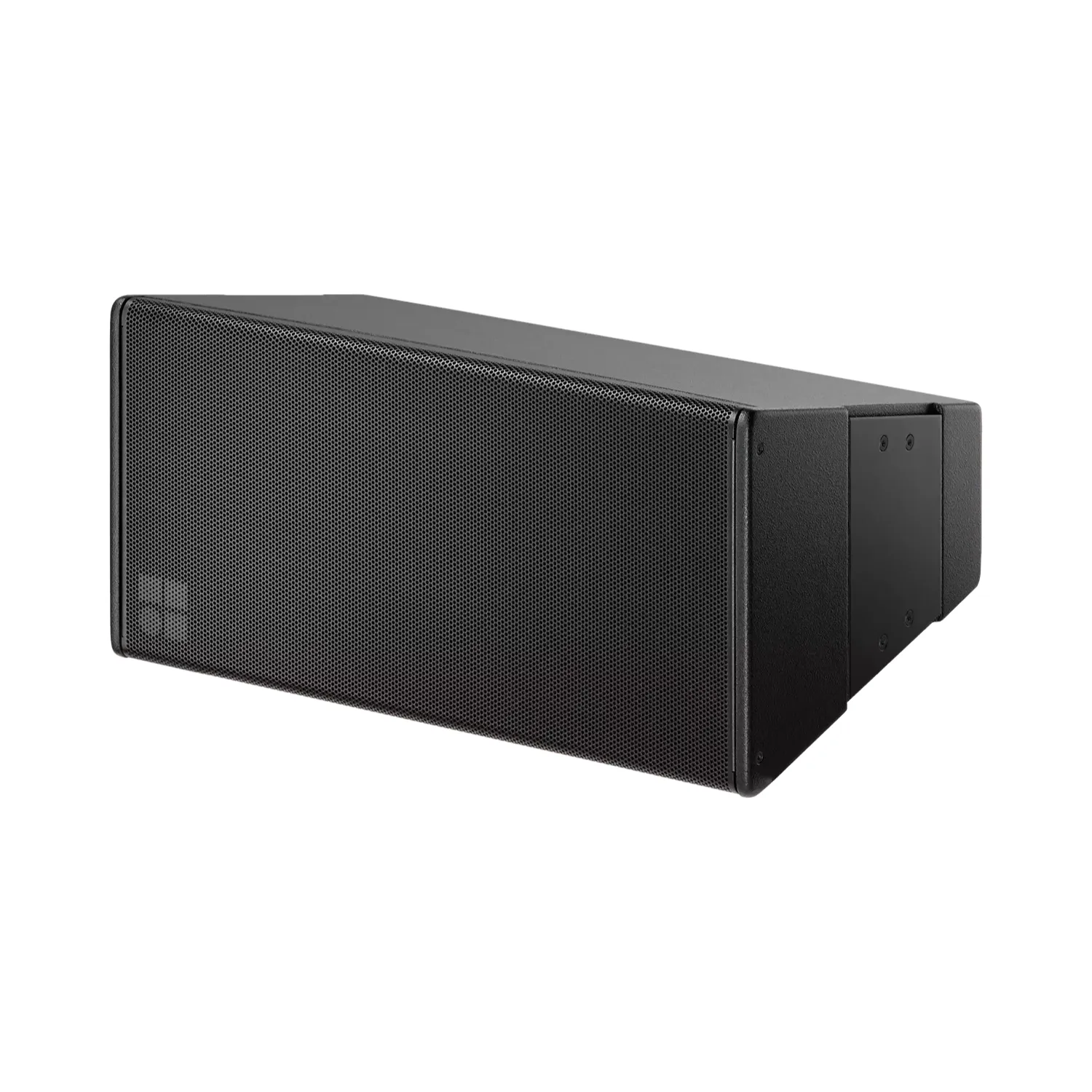

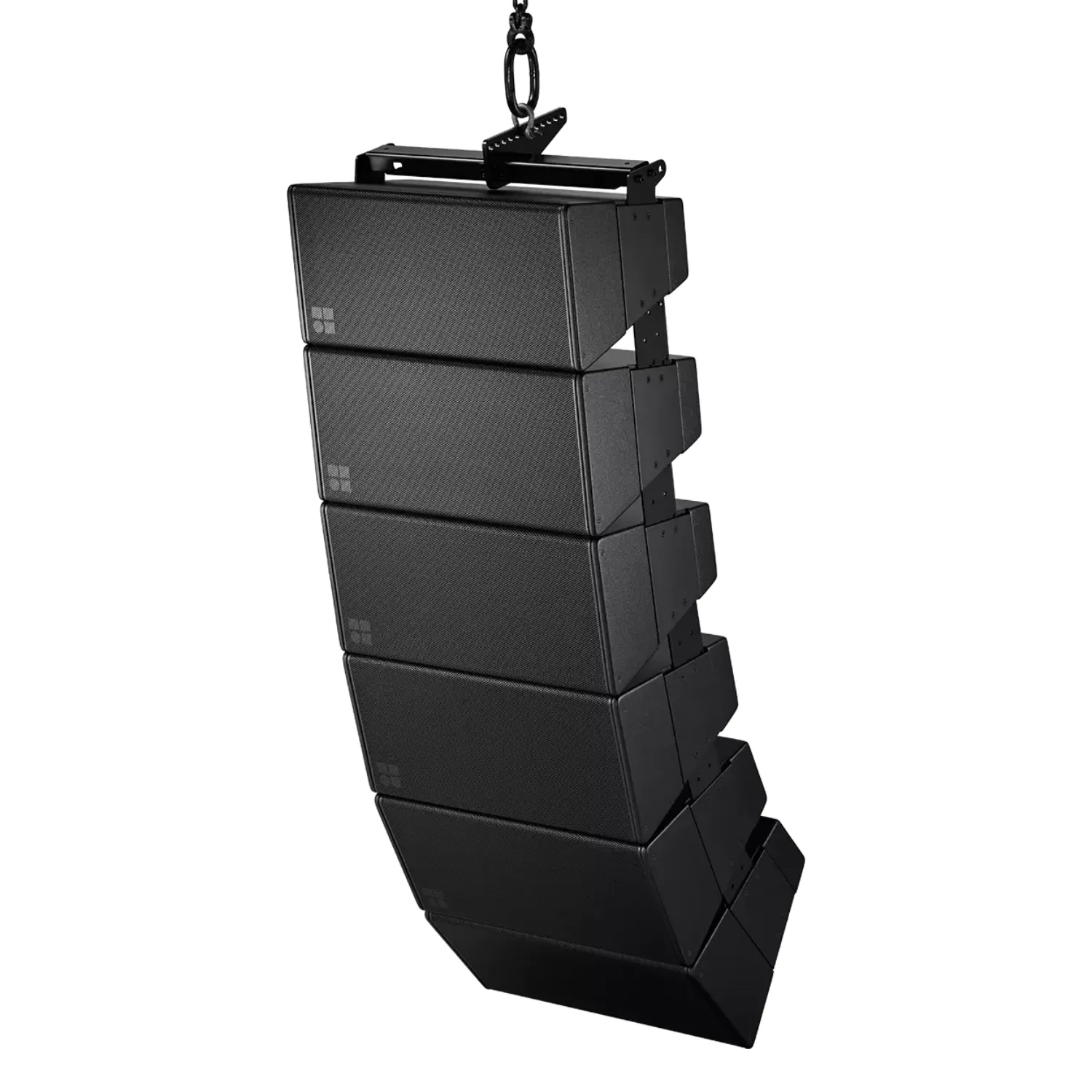

The biaxial d&b Audiotechnik 10AL/10AL-D are high-performance 2-way line array modules, each featuring a single 10” driver in a bass-reflex enclosure and constant directivity HF line sources with 75° or 105° horizontal coverage, achieved using dual 1” exit drivers.
These lightweight passive d&b Audiotechnik 10AL designs incorporate neodymium drivers and large horns for precise pattern control. With a frequency range from 60 Hz to 18 kHz, both models function as full-range systems and can be enhanced with subwoofers from the xS or xA Series, including the 18A or 27A, which can also be integrated into the array.
Constructed from marine plywood with an impact-resistant black paint finish, these enclosures meet Ball Impact Resistance standards (DIN 18032-3) for use in schools and sports halls. A rigid metal grille with acoustically transparent foam protects the front of the cabinet, while the side panels feature an integrated rigging system.

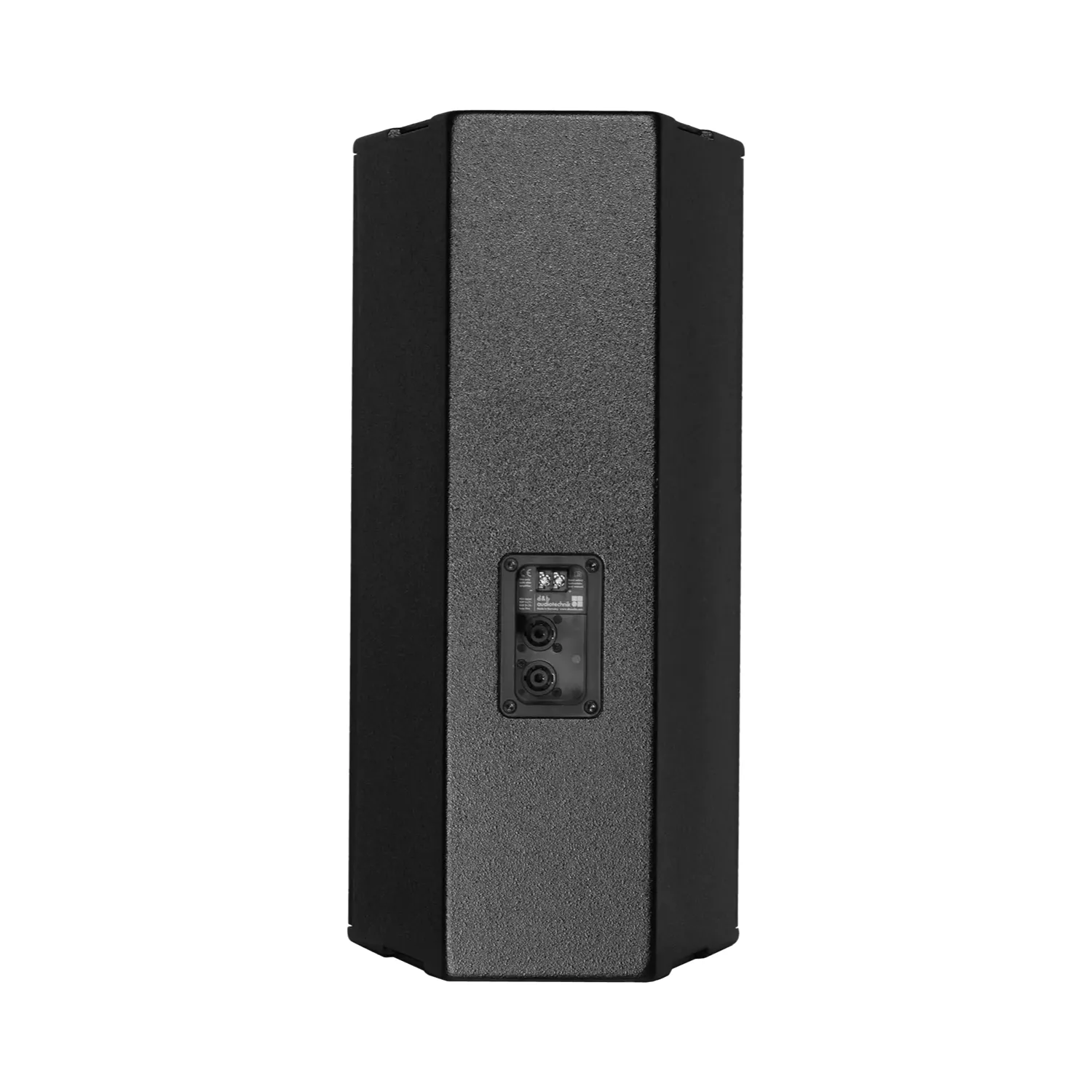

The rear panel includes two NL4 connectors and a two-pole screw terminal block. Additionally, the loudspeaker cabinets and most accessories are available in any RAL colour with the Special Colour (SC) option, and the Weather Resistant (WR) option offers an IP55 rating for use in diverse outdoor conditions.
Features
$7,849 Inc GST
