Autex Mirage Textured Panel

Autex Mirage Textured Panel

Autex Mirage is a range of intricately textured acoustic panels designed to add depth and tactility to interior spaces. With six refined designs, Autex Mirage introduces visual movement and subtle sophistication, enhancing both the acoustic performance and aesthetic quality of any environment.

Features

  • Made with a minimum of 80% recycled PET
  • Carbon neutral
  • Delivers excellent acoustic performance
  • Six designs available
  • Available on both 12 mm and 24 mm Cube™ panels
  • Solid colour with no edging or capping required
  • Panels supplied with bevelled edges for a tidy and professional finish
  • Suitable in high humidity areas
  • Made in Australia

Autex Mirage Textured Panel Acoustic Performance

Mirage is specifically designed to reduce and control reverberated and echo noise in building interiors. Mirage is made from Cube as the base material.

Product Configuration 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz NRC
12mm Cube 0.05 0.10 0.30 0.65 0.90 0.95 0.45
12mm Cube (with 25mm air gap) 0.05 0.30 0.60 0.95 0.95 0.85 0.70
24mm Cube 0.05 0.20 0.60 0.90 1.00 1.00 0.70
24mm Cube (with 25mm air gap) 0.15 0.40 0.85 0.95 0.95 0.95 0.80



Autex Mirage Textured Panel Applications

  • Suitable for wall and ceiling applications
  • Meeting rooms
  • Commercial/office spaces
  • Education
  • Hospitality
  • Theatres and auditoriums
  • High humidity environments (swimming pools)
  • Recording studios
  • Retail

Terms of Sale

  1. I understand that there are no refunds or exchanges for this product.
  2. I accept the manufacturing and freight lead time when placing an order for this product.
  3. I understand that the colours on my screen may not match the actual product.
  4. I understand this product may have a MOQ and will order no less than the MOQ.

Autex Mirage Textured Panel Colour Options

Cube Acros

Cube Beehive

Cube Canyon

Cube Caspian

Cube Cavalier

Cube Empire

Cube Falling Water

Cube Flatiron

Cube Gherkin

Cube Herald

Cube Highland

Cube Muralla

Cube Opera

Cube Parthenon

Cube Pavilion

Cube Petronas

Cube Pinnacle

Cube Rosada

Cube Sargazo

Cube Savoye

Cube Senado

Cube Terrace

Cube Treehouse

Disclaimer: The colours displayed on this website have been provided by the manufacturer for reference purposes only. Please note that these colours are intended as a guide and may not accurately represent the true colour. For a more precise depiction of colour, we recommend requesting a colour swatch.

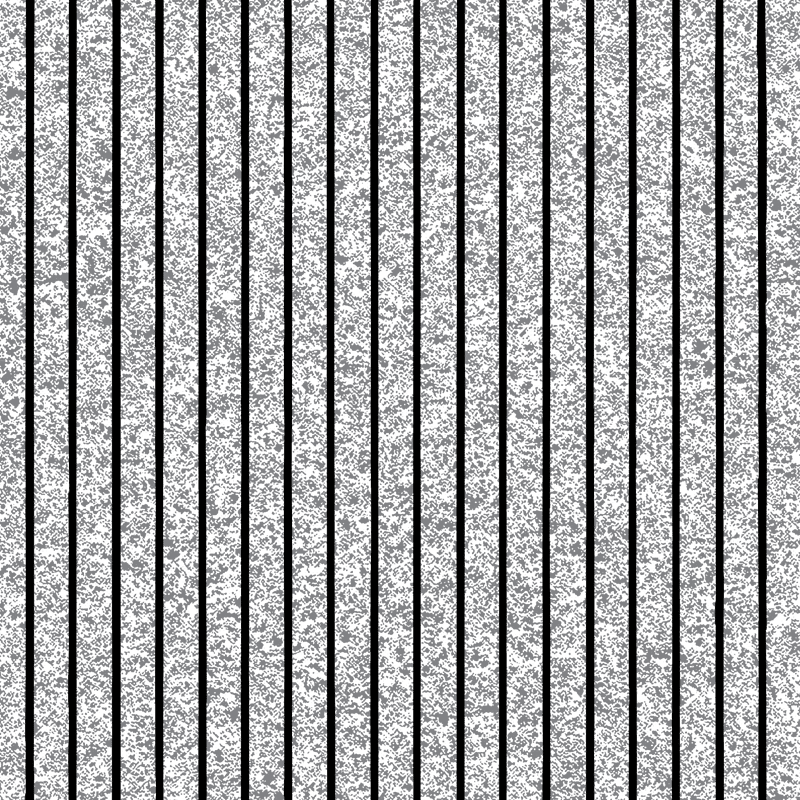

Autex Mirage Textured Panel Texture Options

Specifications

SKU AUT-MIR Categories ,

Here is the formatted specs list:

  • Form: Panel
  • NRC: 0.45 – 0.80
  • Composition: 100% polyester fibre (PET)
  • Fire rating: AS5637.1, AS ISO9705-2003. Group 1, (SMOGRArc): <100m²/s²
  • Size: 2400mm x 1200mm and 2700mm x 1200mm
  • Thickness: 12mm | 24mm
  • Application: Wall | Ceiling
  • Install method: Direct fix | SpinFix™ | Varies depending on placement

Product Documentation

Download Product Documentation

Lead Time: 1 – 2 Weeks
