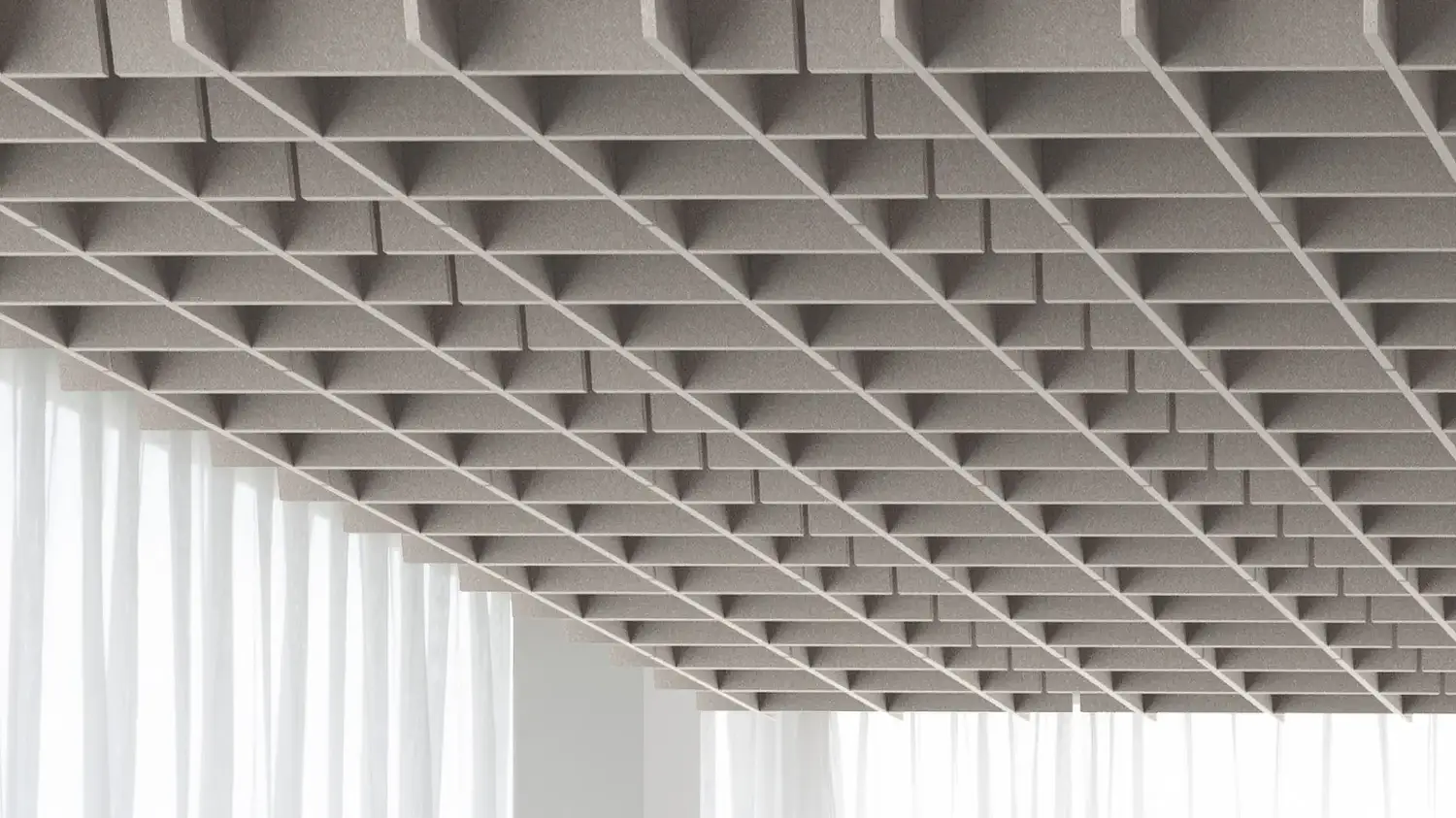

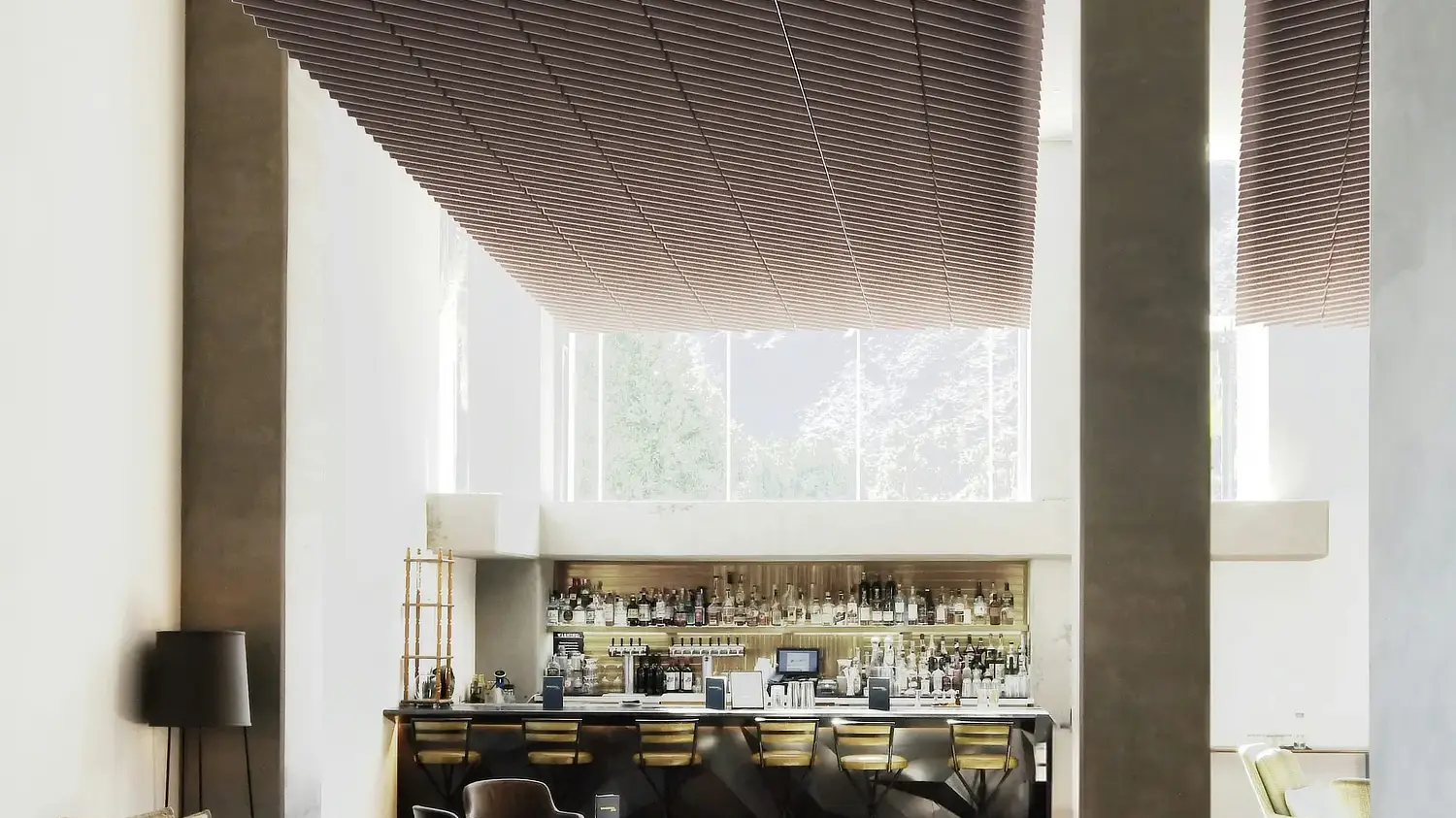

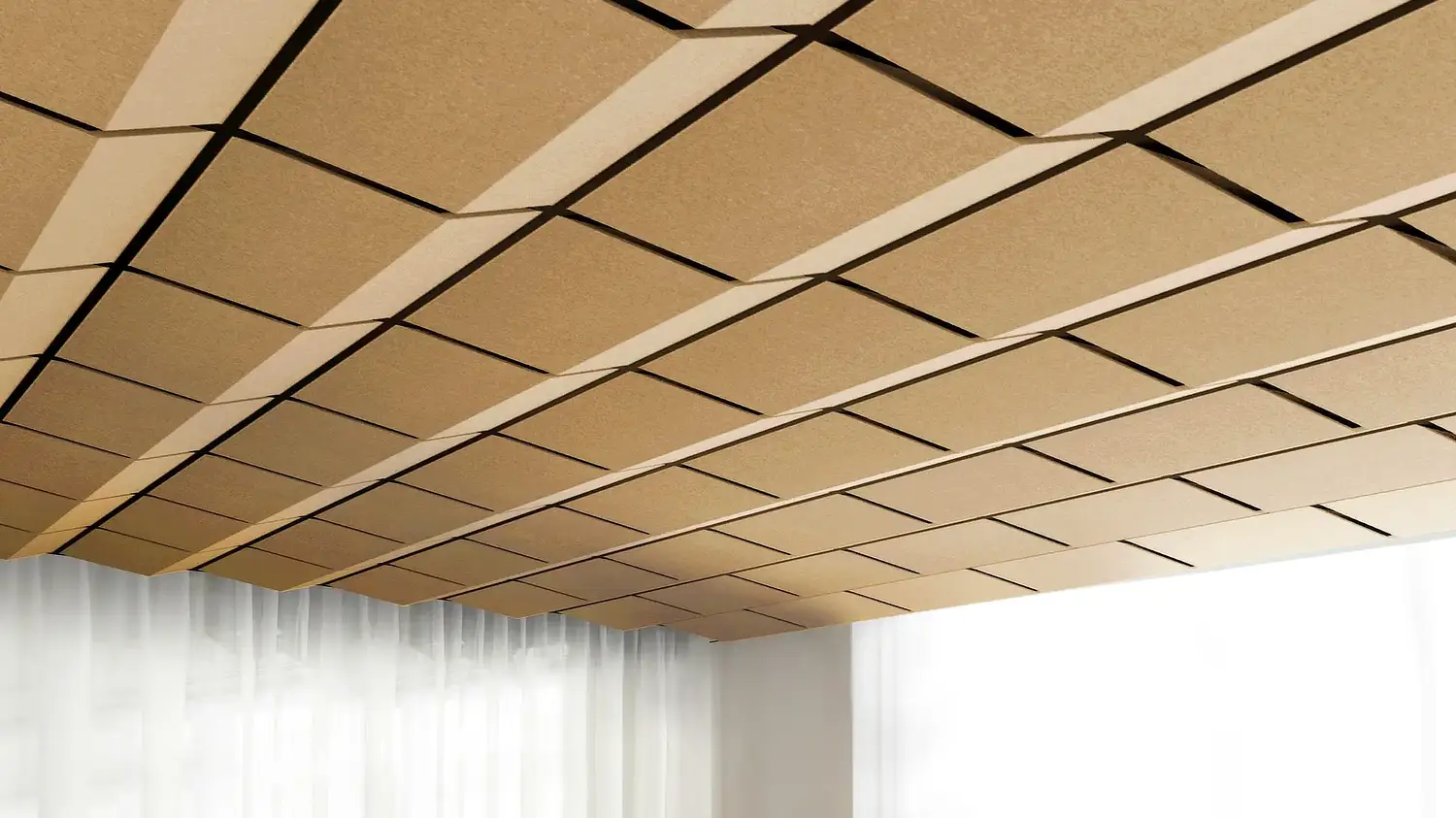

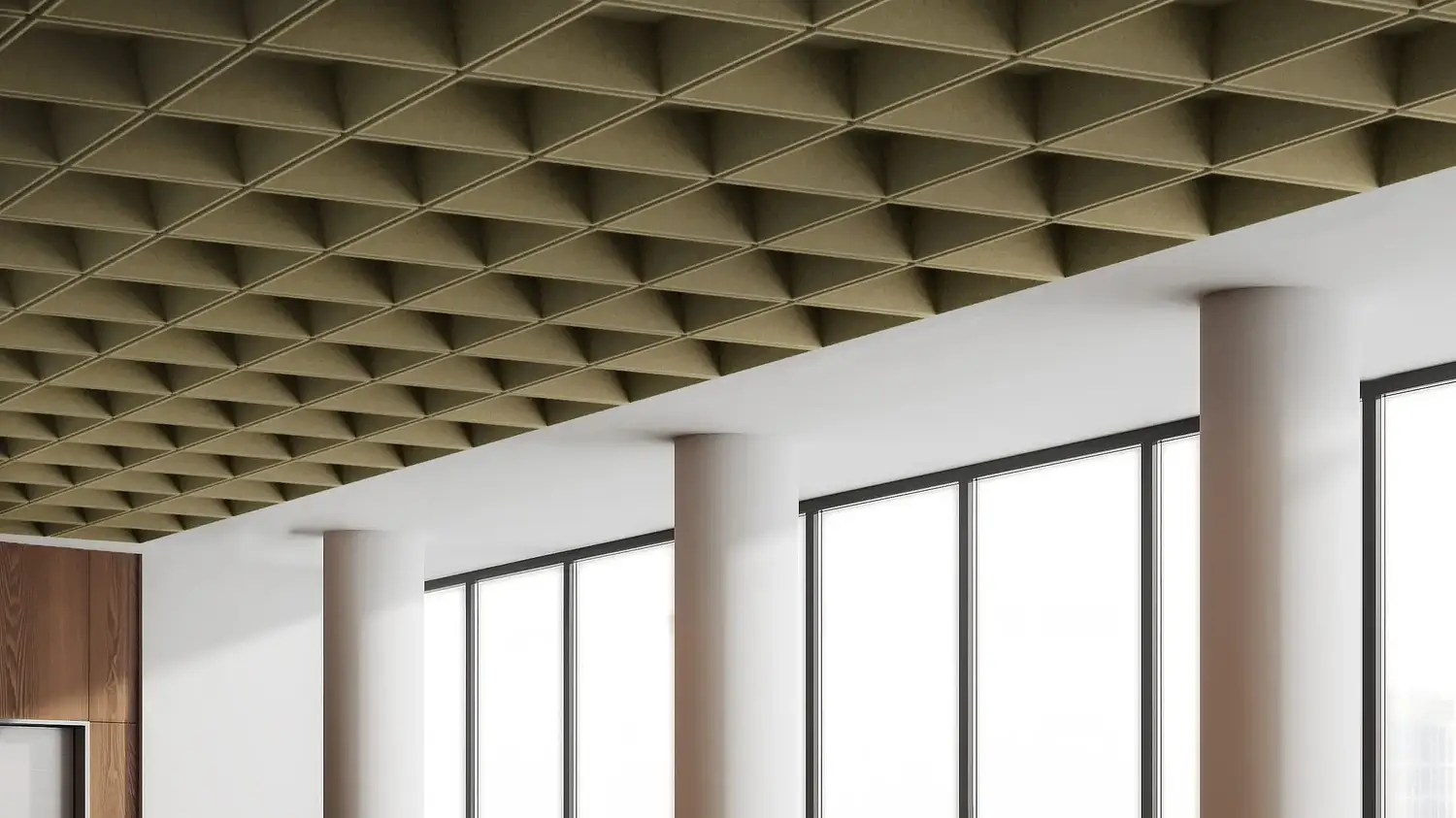

Autex Grid Ceiling Tiles are an acoustic solution developed to enhance standard ceiling grid systems. Designed for flexibility, they can be arranged to achieve a wide range of visual outcomes – from understated finishes to striking design features. Each component is carefully crafted to bring colour, texture, and refined form to grid-style ceilings.
Features
Autex Grid Ceiling Tiles help reduce and control reverberated noise and echo in building interiors. Extensive acoustic testing of arrayed assemblies has been undertaken in accordance with ISO 354 to inform the performance of grid tiles.
Style | Overall depth | Depth below grid | Spacing | NRC uncapped | NRC capped |
---|---|---|---|---|---|

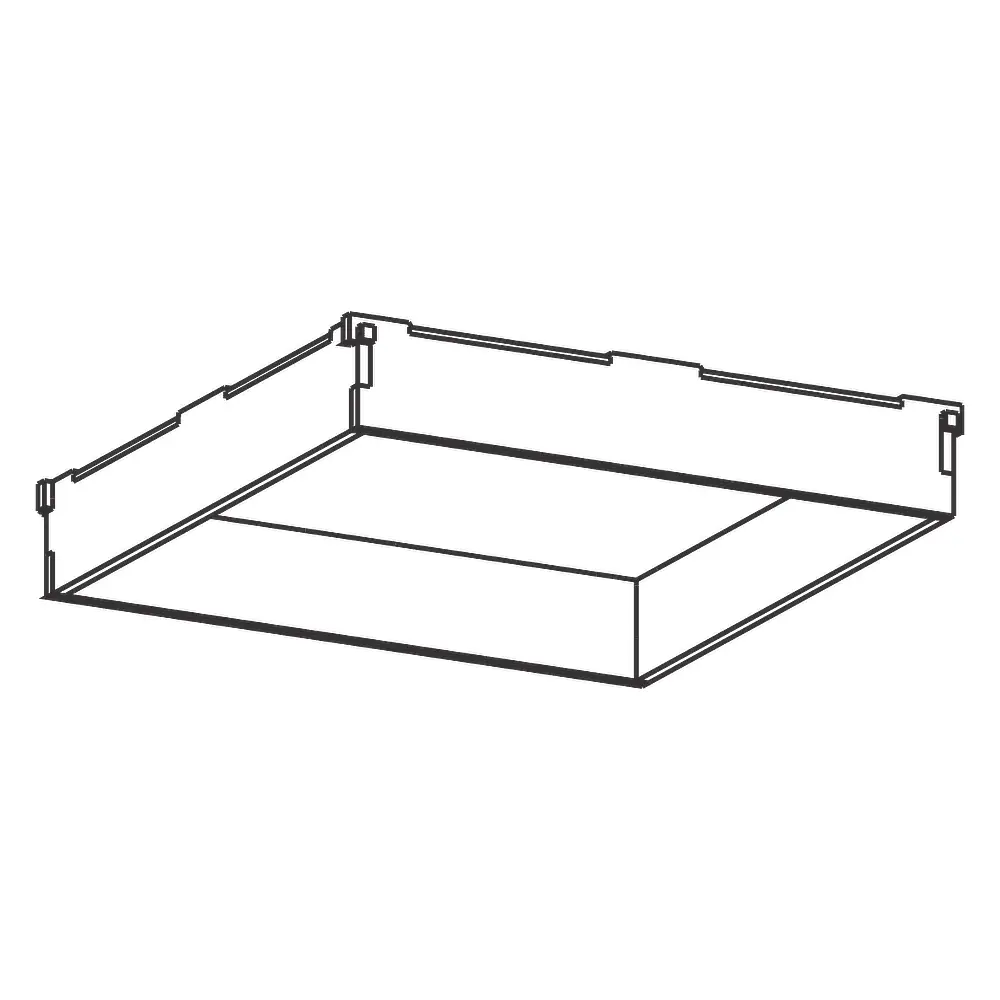

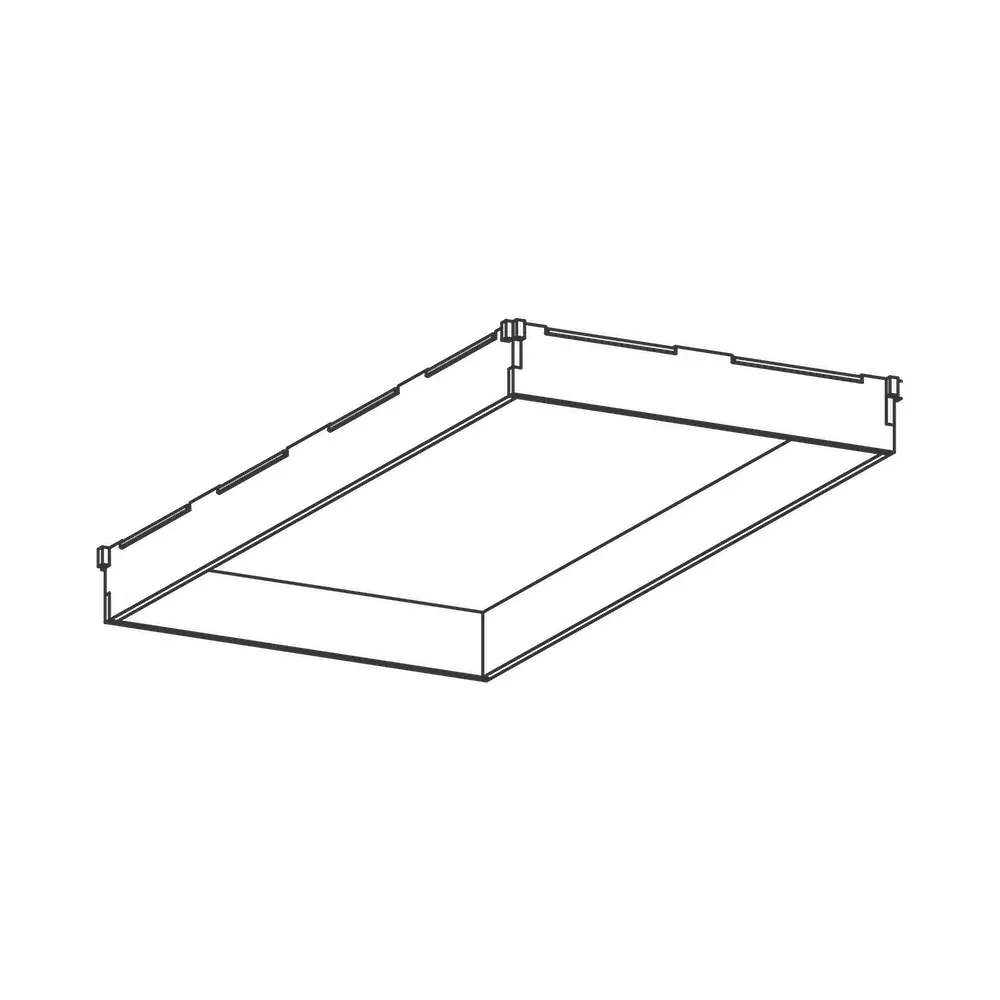

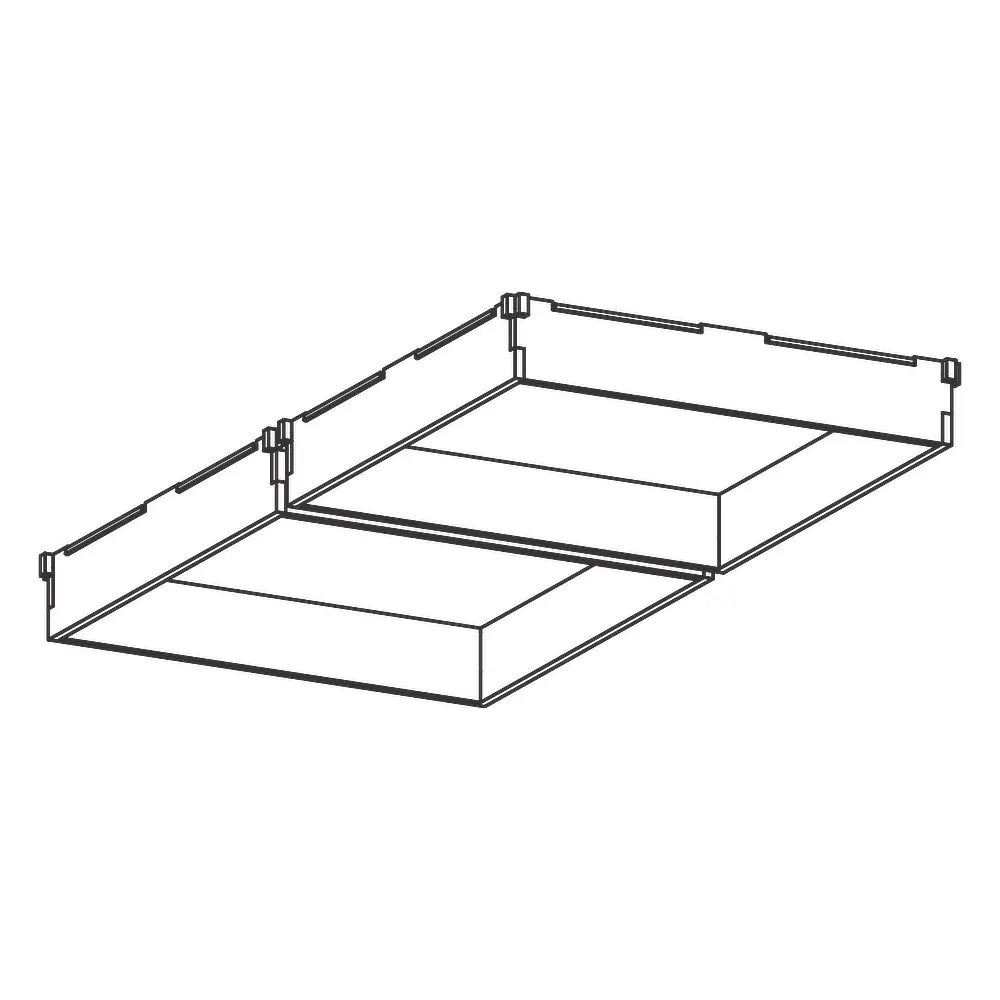

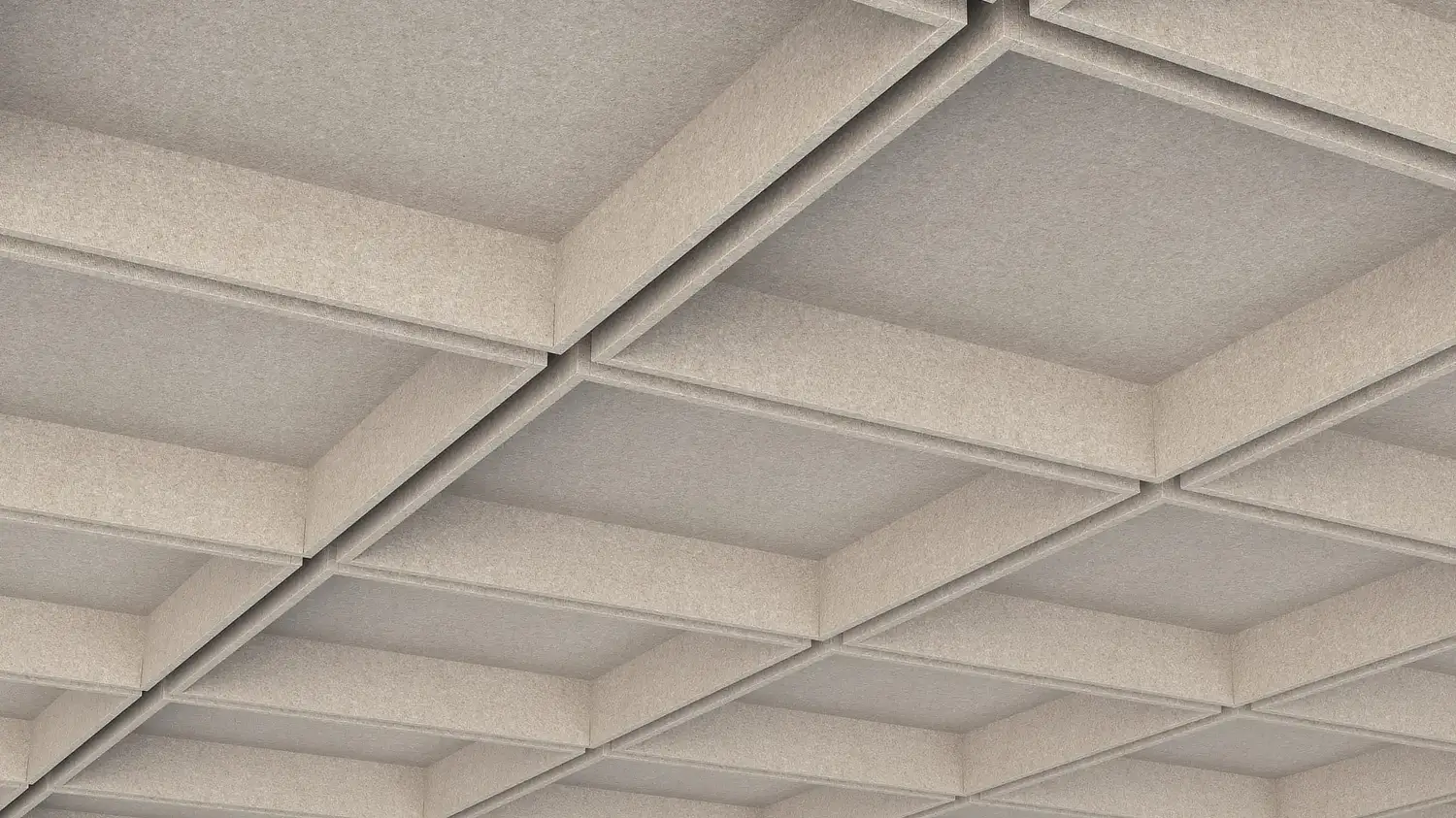

Frame | 100mm | 75mm | 600mm | 0.35 | 0.60 |

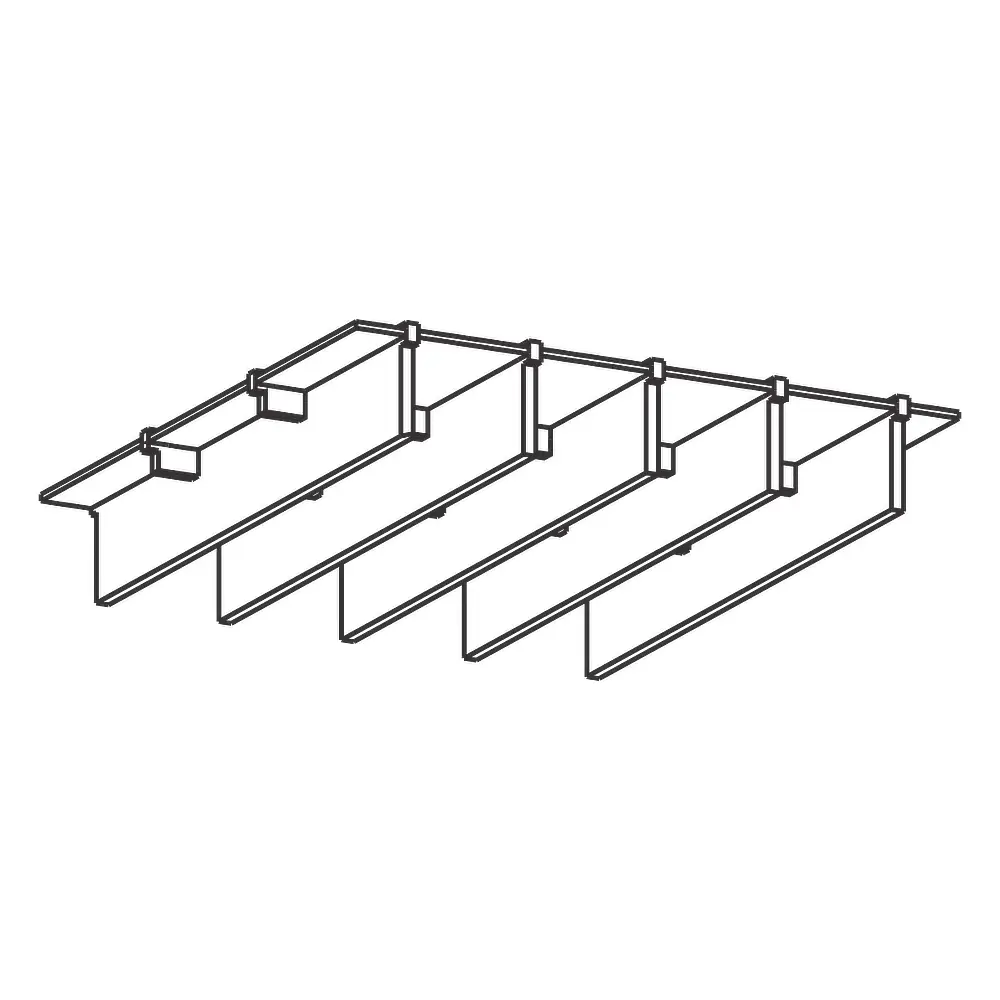

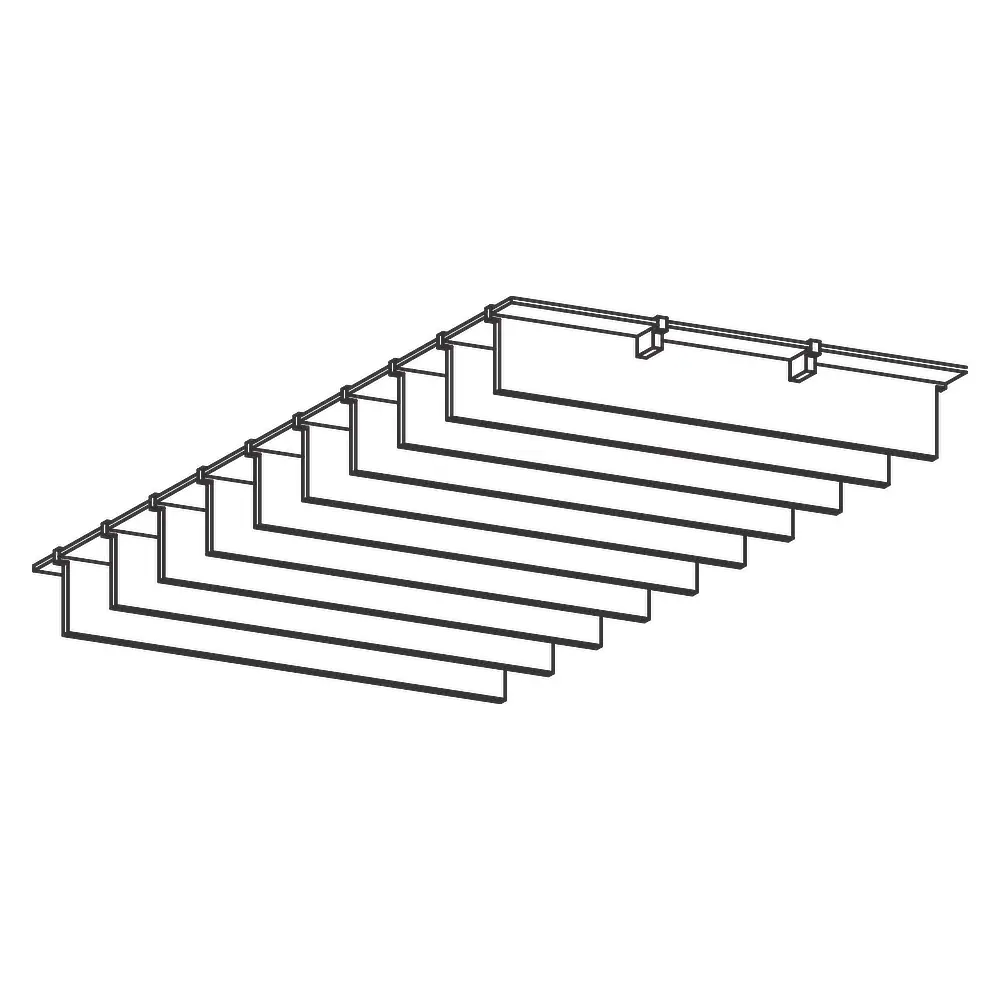

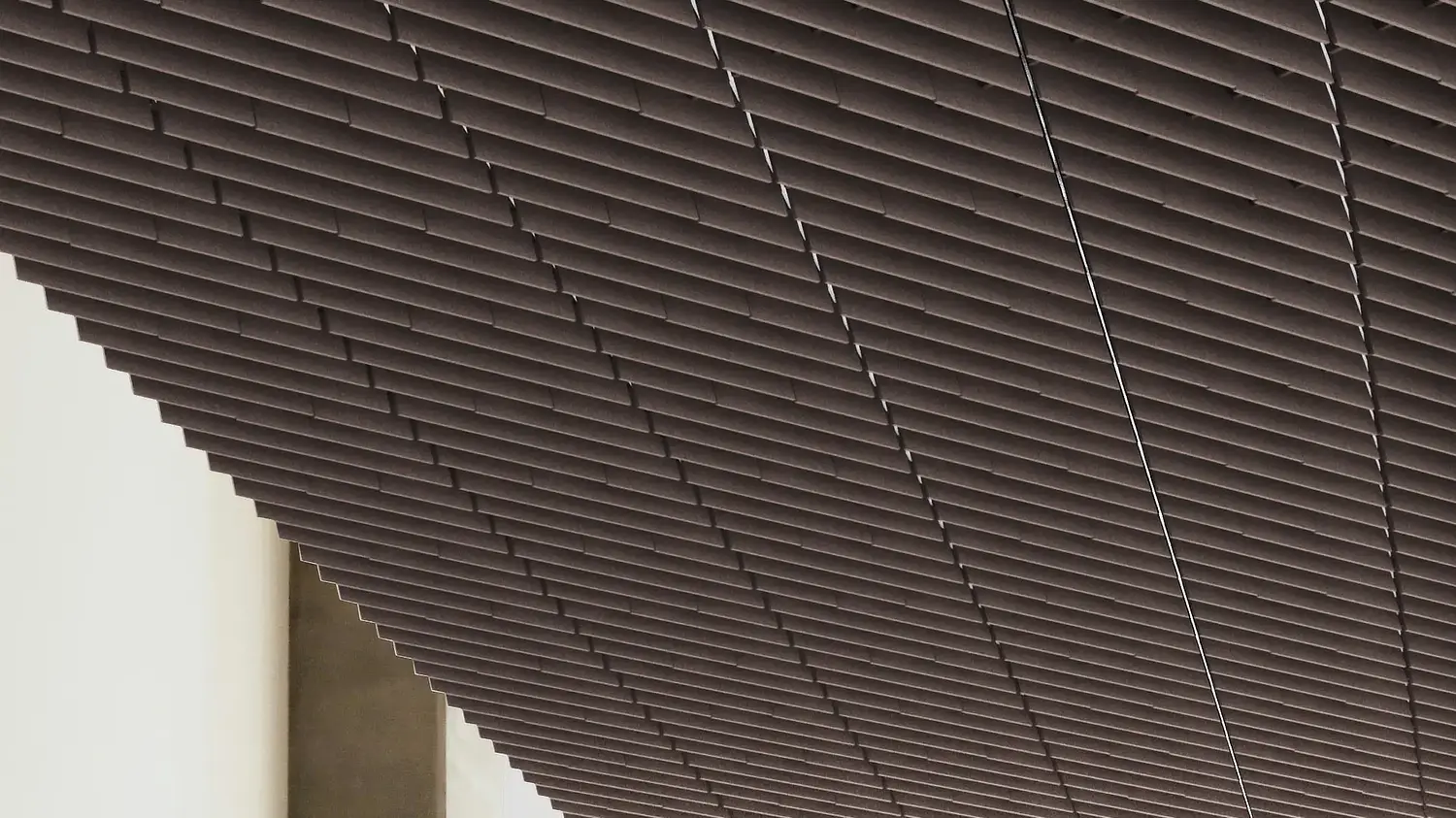

Linear | 100mm | 85mm | 120mm | 0.35 | 0.60 |

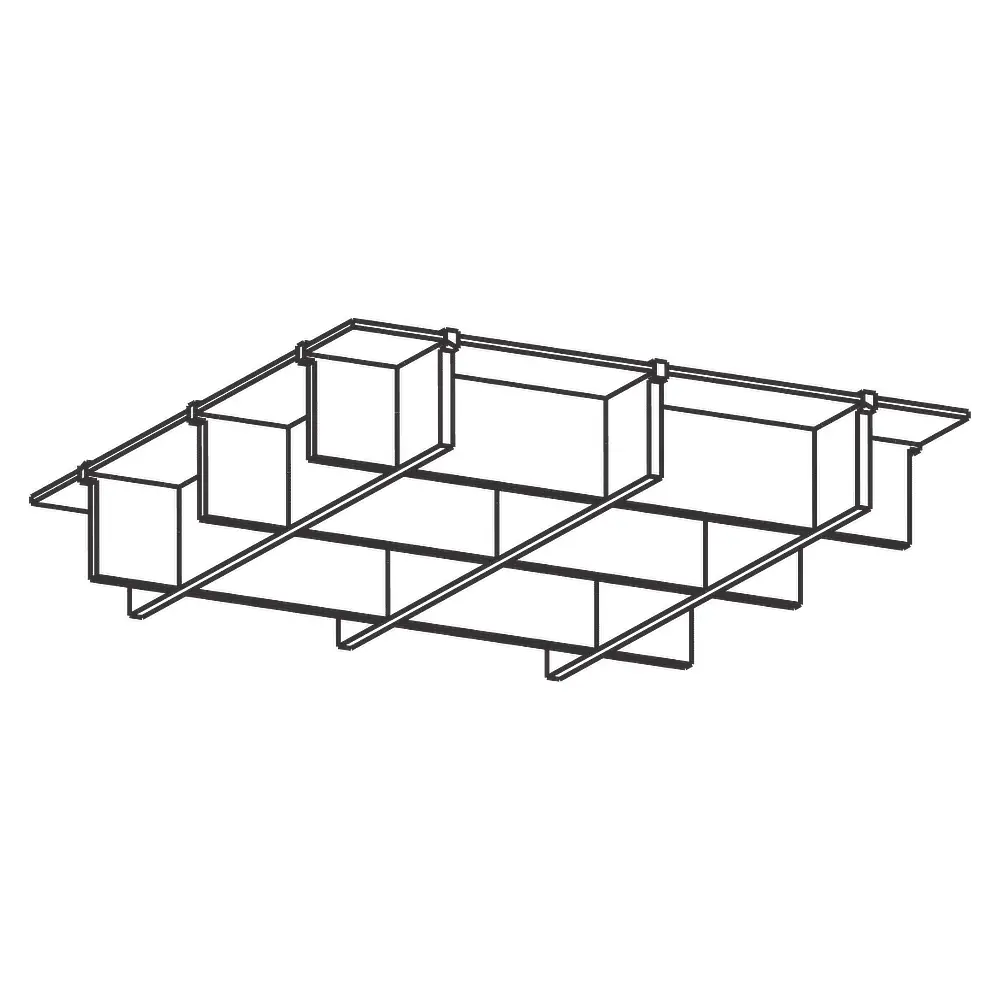

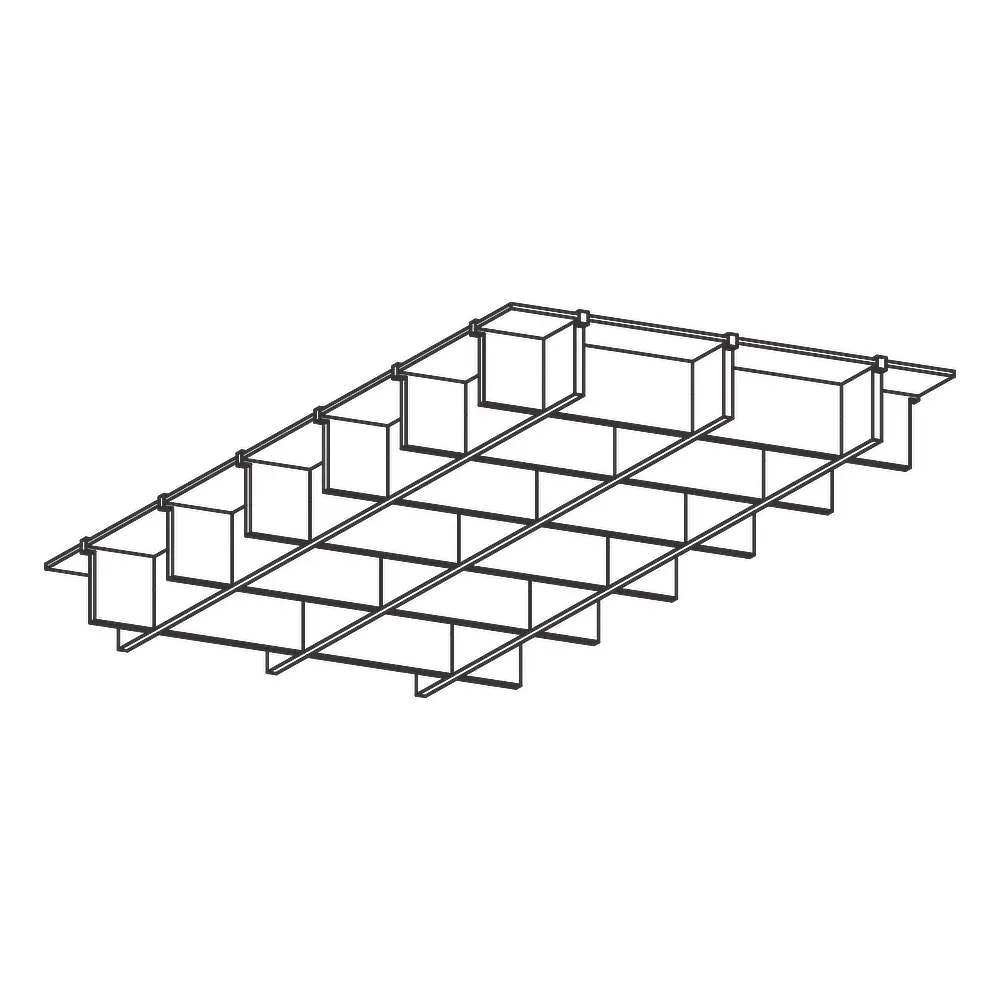

Hatch | 100mm | 85mm | 200mm | 0.60 | 0.70 |

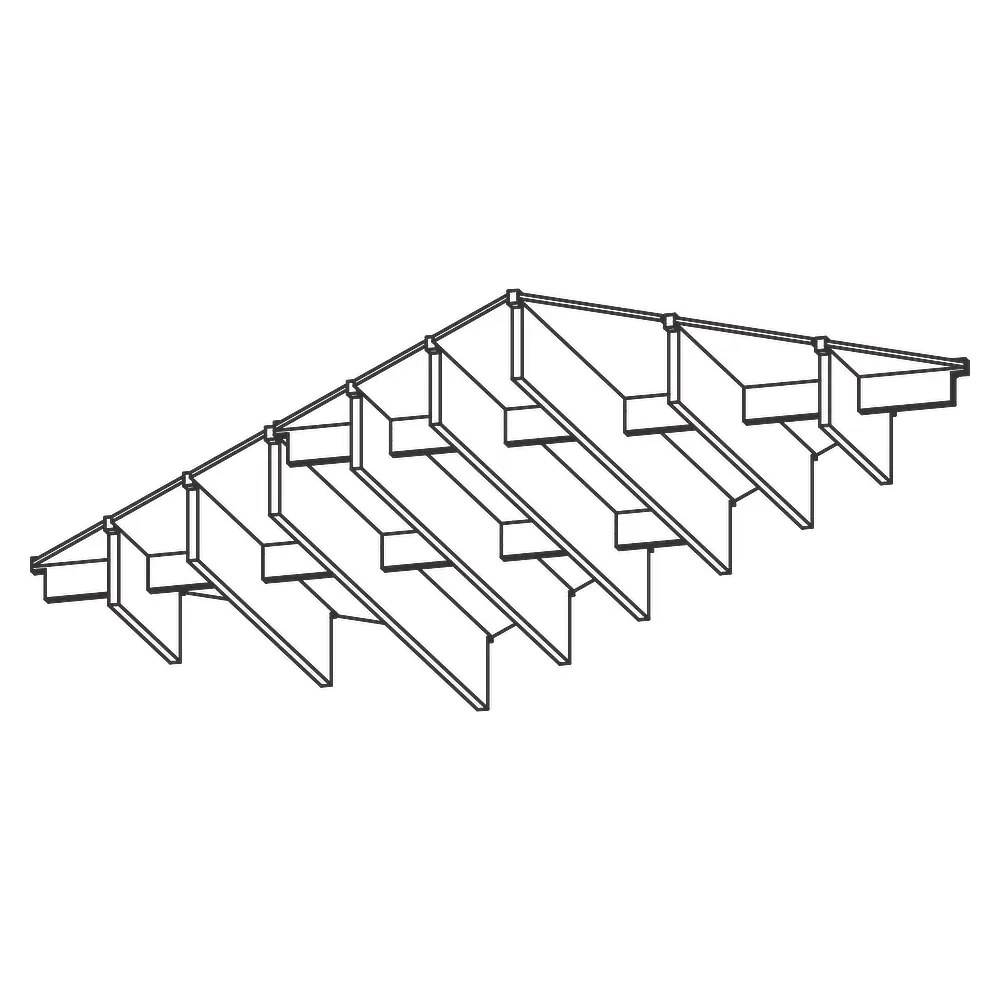

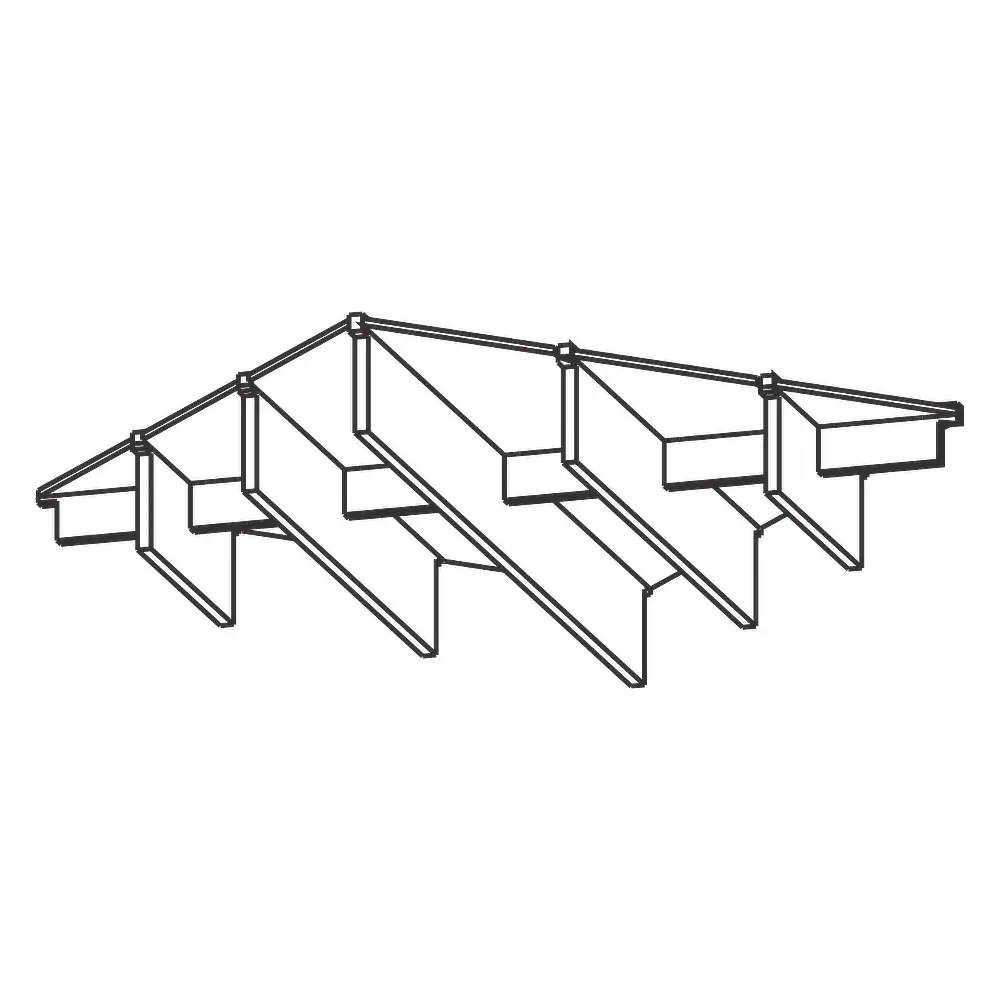

Angle | 100mm | 85mm | 140mm | 0.30 | 0.60 |

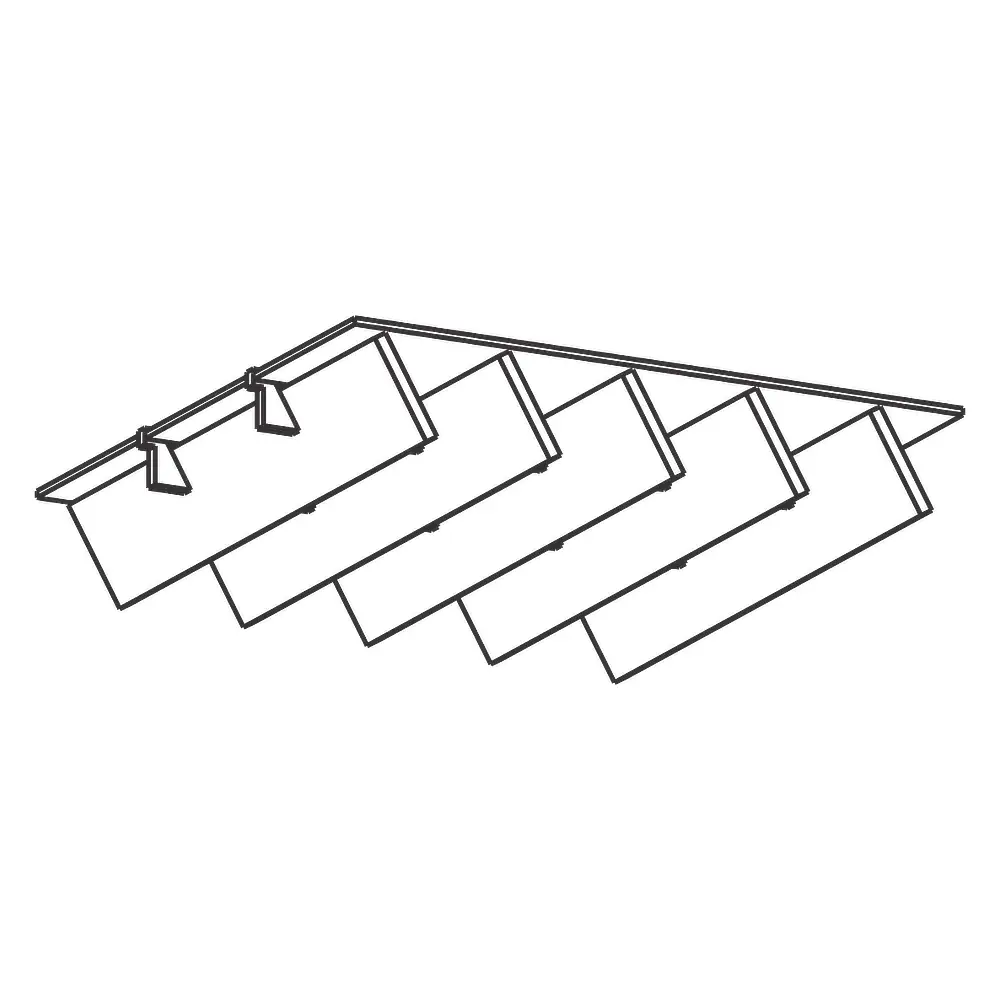

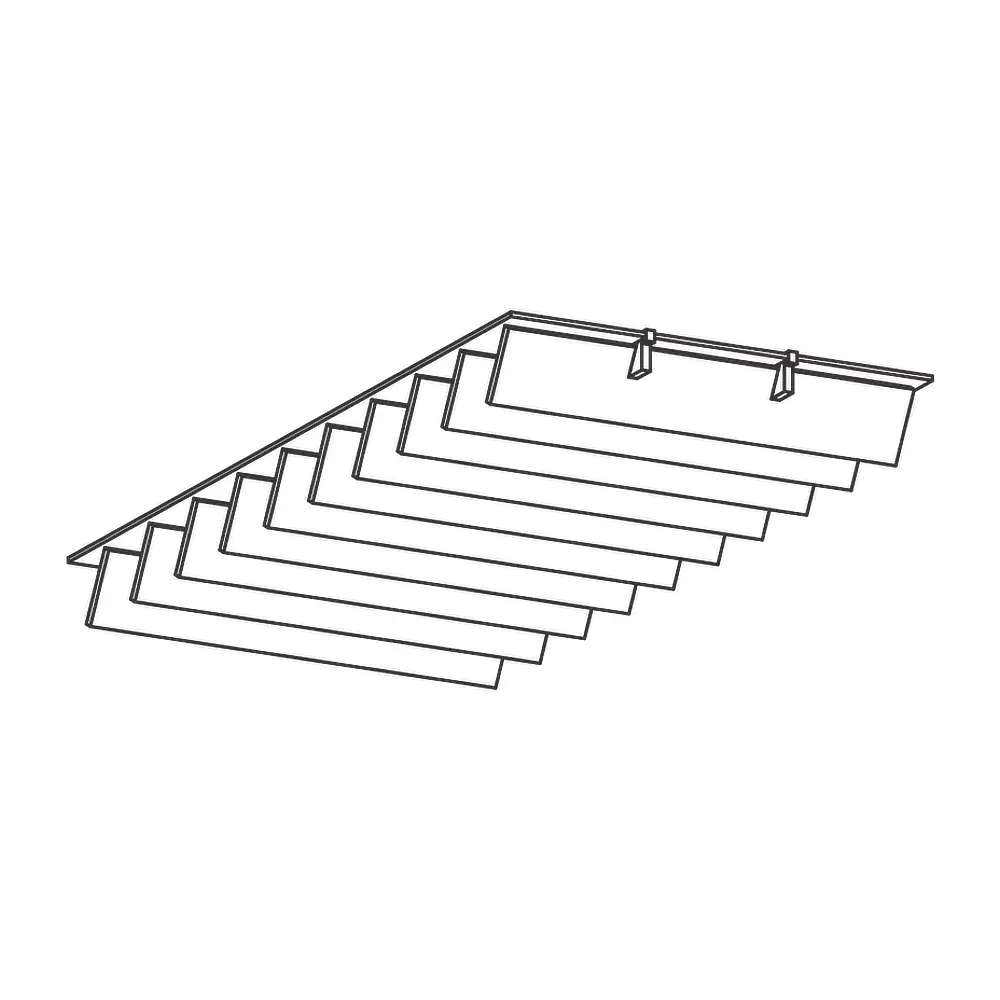

Louvre | 100mm | 85mm | 120mm | 0.35 | 0.65 |

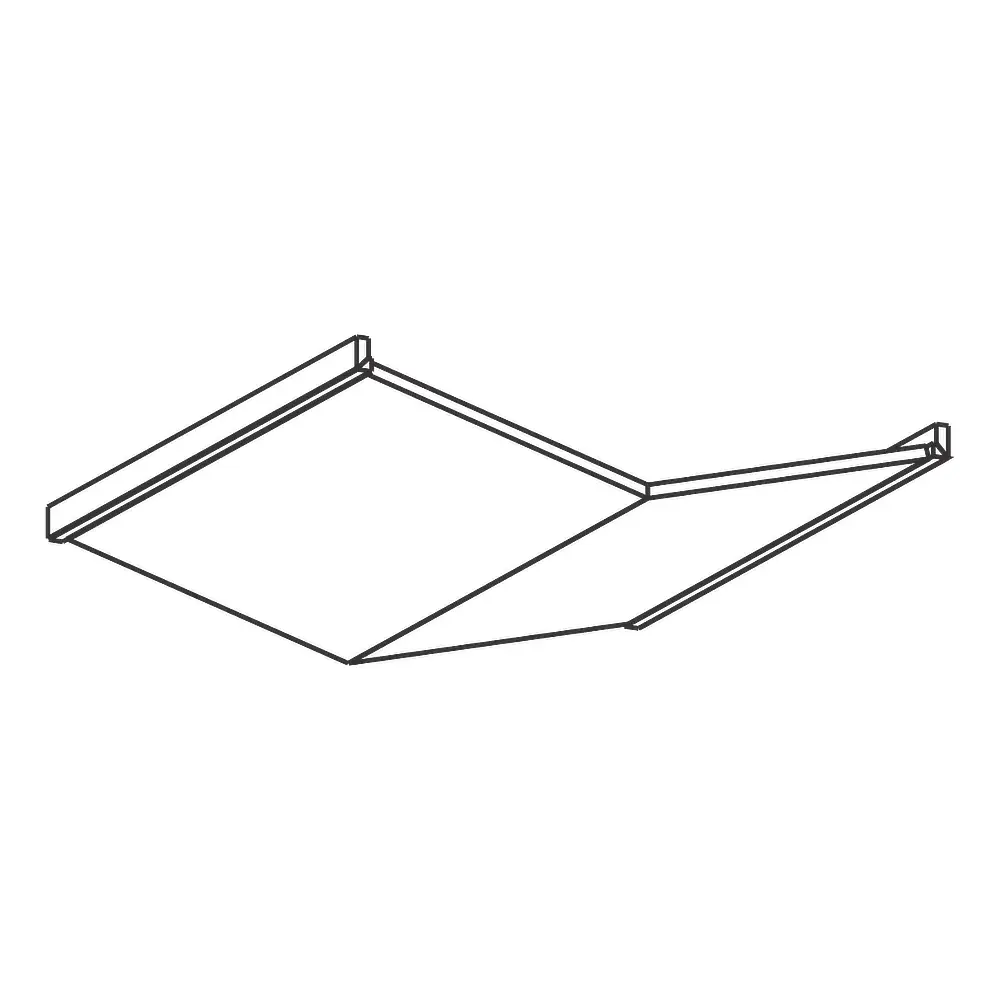

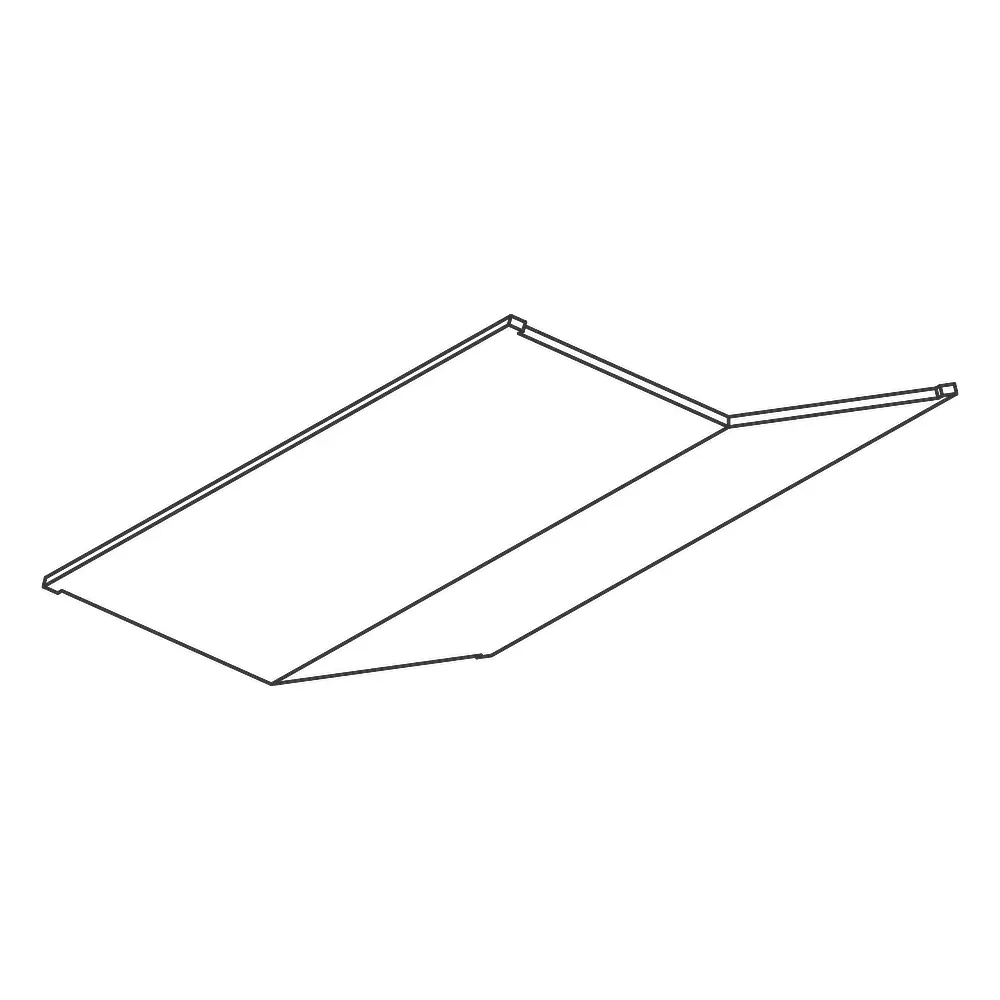

Vault | 100mm | 75mm | – | 0.80 | – |

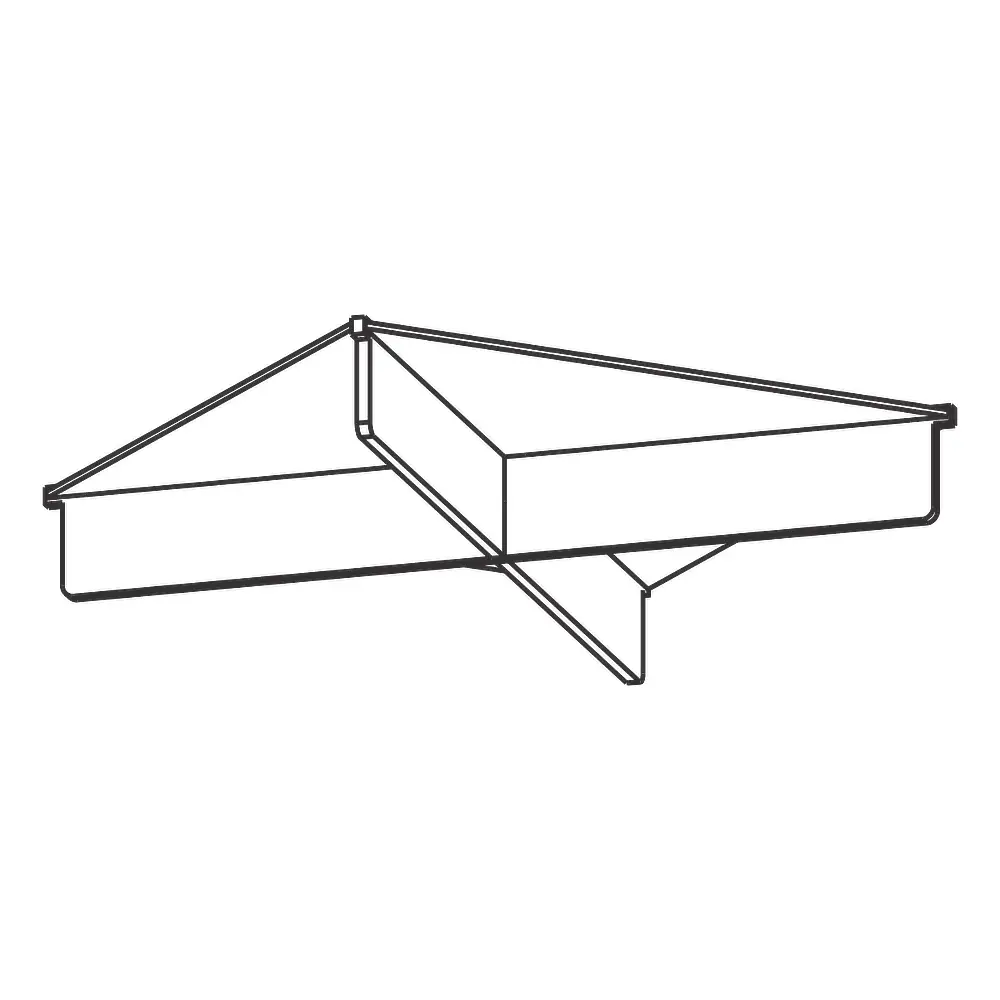

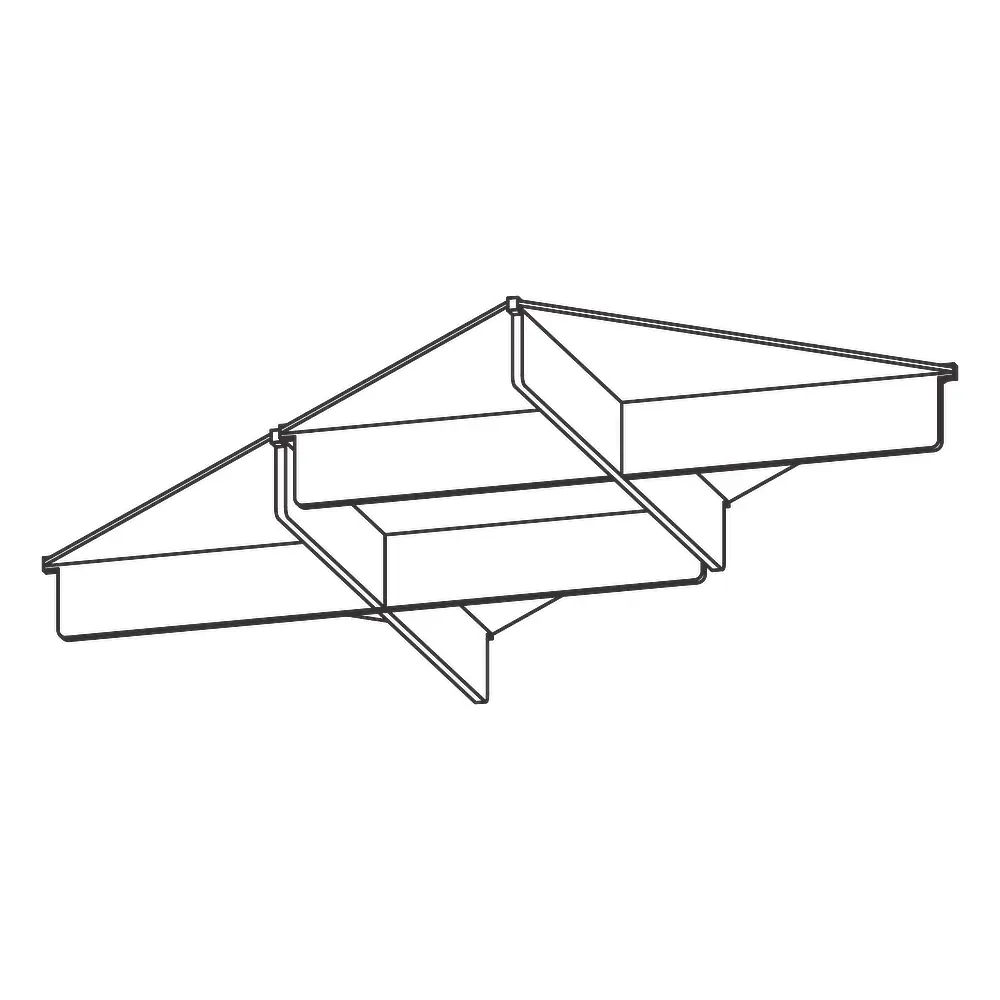

Vertex | 100mm | 85mm | – | 0.15 | 0.60 |
Disclaimer: The colours displayed on this website have been provided by the manufacturer for reference purposes only. Please note that these colours are intended as a guide and may not accurately represent the true colour. For a more precise depiction of colour, we recommend requesting a colour swatch.
Download Product Documentation
$868 Inc GST
