The Audix ADX51 is a professional pre-polarized condenser microphone designed for stage, studio, and broadcast applications. Renowned for its clear and accurate response, the Audix ADX51 offers the flexibility to handle both close and distance miking for a wide range of acoustic instruments.

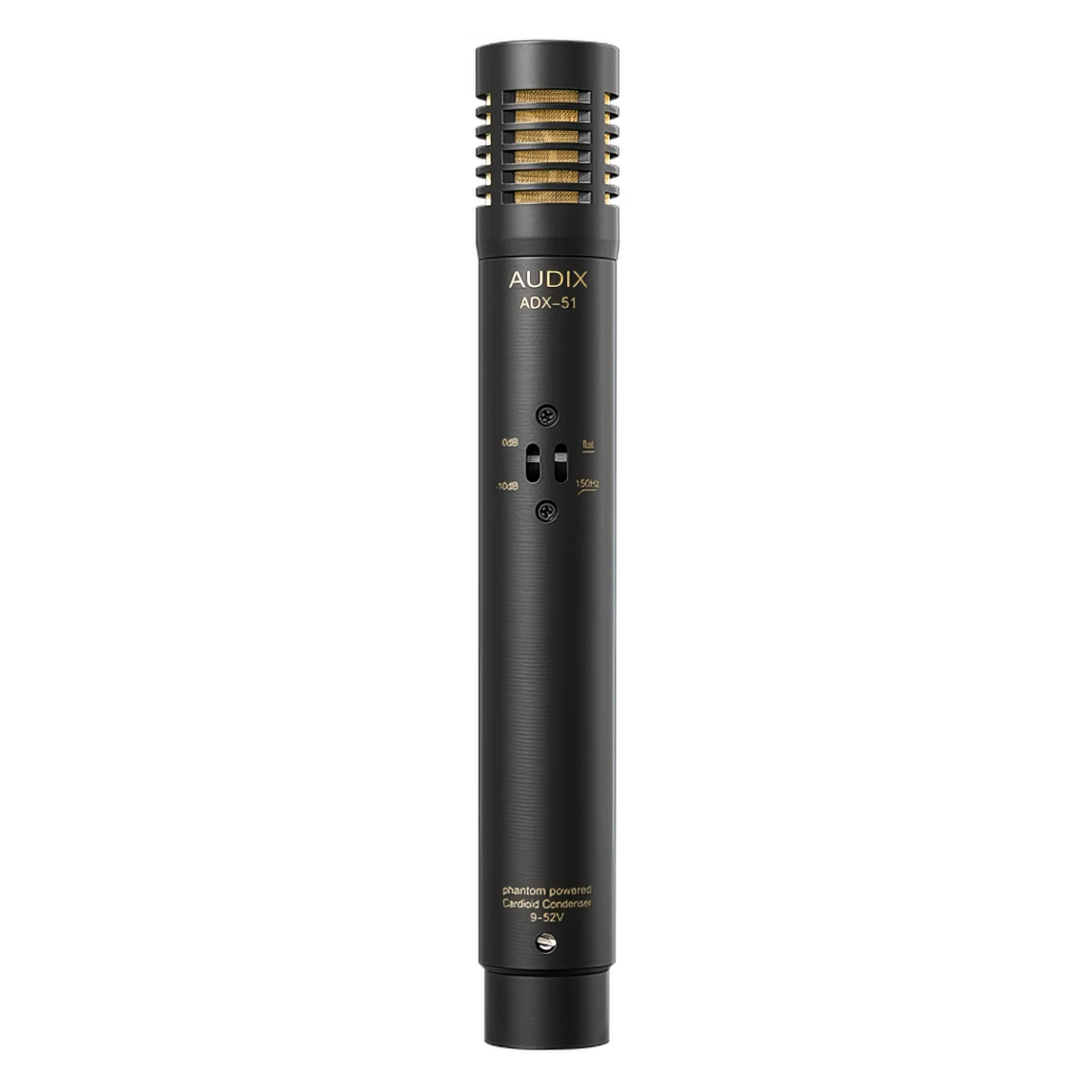

Audix ADX51 Cardioid Studio Condenser Microphone
The Audix ADX51 is a condenser microphone featuring a uniformly controlled cardioid polar pattern, specifically designed to capture the acoustics of the instrument being miked while effectively isolating it from other instruments on stage. With a broad frequency range of 40 Hz – 18 kHz, the Audix ADX51 is equipped with a 14 mm gold vapor diaphragm, along with a -10 dB pad and a bass roll-off filter at 150 Hz.
The Audix ADX51 cardioid studio condenser microphone is easy to position, highly durable, and manufactured to exacting standards and tight tolerances. It boasts a precision-machined brass body, a durable black E-coat finish, a steel mesh grille, and a gold-plated XLR connector.
Designed, assembled, and tested by Audix in the USA, the ADX51 is built to deliver consistent and reliable performance.
Specifications
Transducer Type: Pre-Polarized Condenser
Frequency Response: 40 Hz – 18 kHz
Polar Pattern: Cardioid
Output Impedance: 100 ohms
Sensitivity: 17 mV / Pa @ 1k
Capsule Technology: Black Electret GV Diaphragm
Off-Axis Rejection: >15 dB
Maximum SPL: ≥132 dB
Power Requirements: 9-52 V Phantom
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
