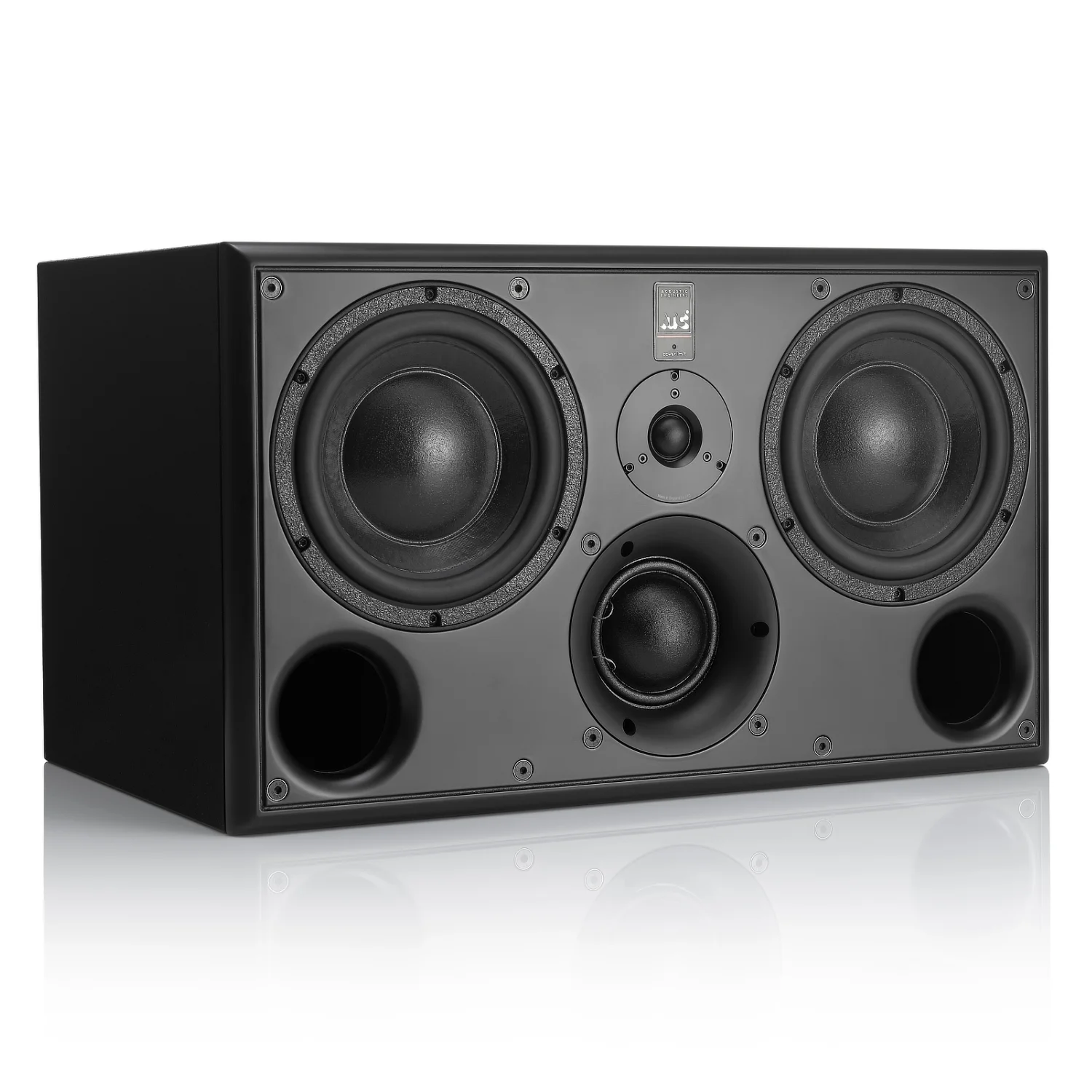

ATC SCM45A Pro Studio Monitor

The ATC SCM45A Pro Studio Monitor: precision engineering, compact design, exceptional clarity. With a 6.5”/164mm Super Linear bass driver and SH25-76S ‘Dual Suspension’ tweeter, it redefines studio sound reproduction.

The ATC SCM45A Pro Studio Monitor is available to audition in our showrooms.

ATC SCM45A Pro Studio Monitor

Experience audio brilliance with the ATC SCM45A Pro Studio Monitor, a mid-size marvel engineered for unparalleled performance. Crafted to perfection, this active 3-way studio monitor seamlessly integrates precision and power to elevate your sound experience to new heights.

Ideal for critical near-field listening, the SCM45A Pro thrives in every control room, delivering exceptional sonic clarity that captures every nuance. Dive into the heart of your audio creation as this monitor unveils the true essence of your music, ensuring no detail is left behind.

Unlock the world of LCR surround monitoring in medium control rooms with the ATC SCM45A Pro. Its dynamic prowess and expansive soundstage make it an essential tool for crafting immersive audio landscapes that envelop the listener.

Step into the realm of medium-to-large control rooms and let the ATC SCM45A Pro take your soundscapes to the next level. As the preferred choice for surround channels, it fills every corner of your space with pristine sound, creating an audio experience that’s second to none.

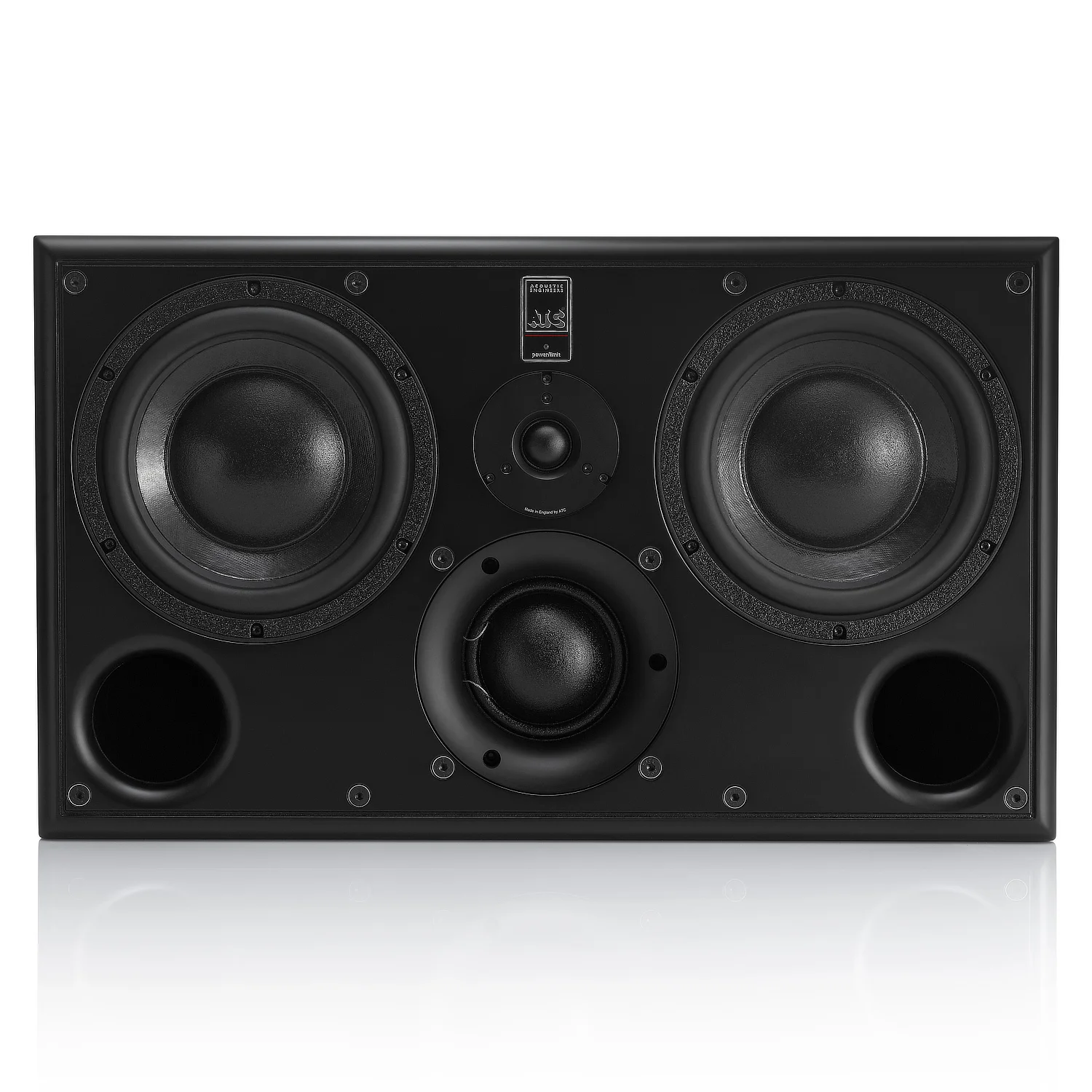

At the heart of this monitor lies the ATC hand-built 6.5˝/164mm carbon-paper cone bass driver. Its superior construction ensures deep, resonant bass that forms the backbone of your audio. Complementing this is the ATC 25mm/1” Dual-Suspension ‘S-Spec’ Tweeter, capturing the finest highs with remarkable accuracy.

The ATC SCM45A Pro boasts a discrete MOSFET class A/B tri-amp pack with 150W/60W/25W continuous power output. This power configuration ensures your sound is delivered with precision, authority, and a level of finesse that sets a new standard in studio monitoring.

In a world where audio excellence is paramount, the ATC SCM45A Pro Studio Monitor stands as a testament to innovation and craftsmanship. Elevate your studio setup with a monitor that’s not just a tool, but a gateway to a sonic journey of unmatched quality.

Specifications

  • Drivers: HF 1″/25mm Dual-Suspension ‘S-Spec’, Mid 3″/75mm Soft Dome, LF 6.5″/164mm short-coil carbon paper cone
  • Amplitude Linearity (±2dB): 70Hz-17kHz
  • Cut-off Frequencies (-6dB, free-standing): 42Hz-25kHz
  • Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
  • Max. Continuous SPL (1 metre): 112dB

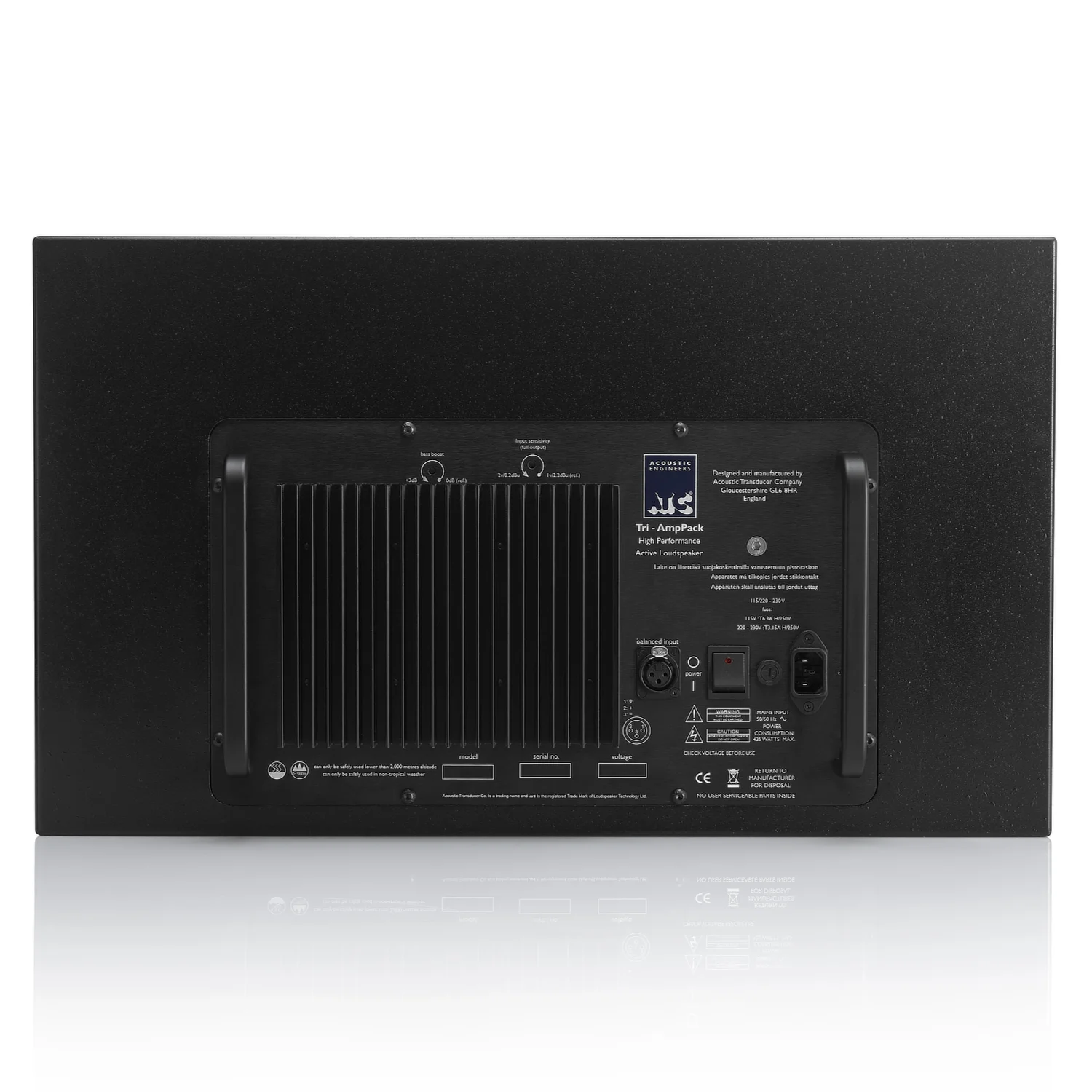

  • Audio Input: Rear panel mounted female xlr (pin 2 +)
  • Input Sensitivity: 1V rms (ref. full output)
  • Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
  • Input Impedance: Balanced > 10kΩ
  • Amplifier Output Power: Bass 150W rms, Mid 60W rms, High 25W rms
  • Crossover Frequencies: 380Hz & 3.5Khz
  • Crossover Filters: 4th order critically damped with phase compensations
  • Low Frequency Boost: 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
  • Overload Protection: Active FET momentary gain reduction

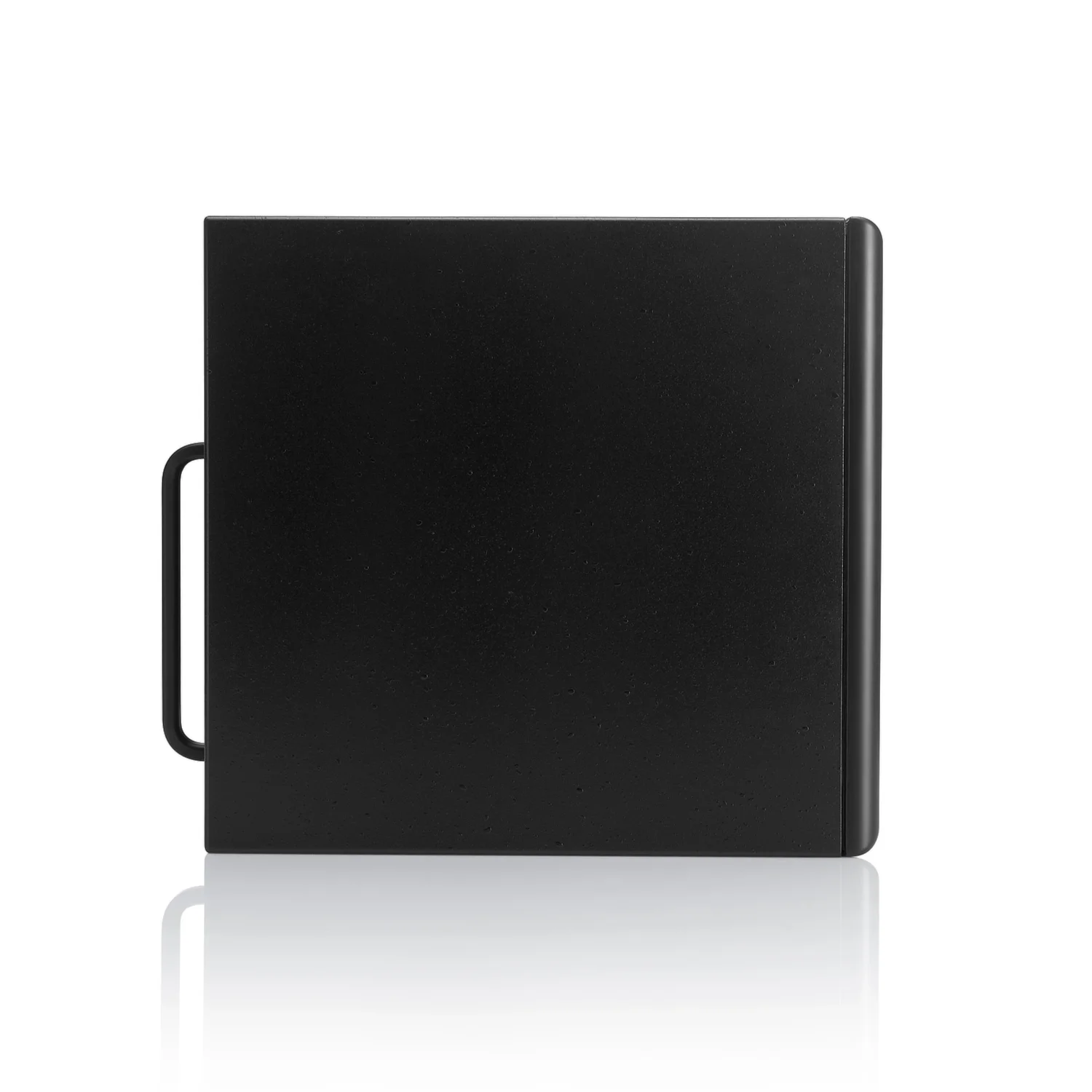

  • Dimensions (HxWxD): 353 x 600 x 375mm  Handles add an additional 39mm/1.5″ to depth.
  • Weight: 36kg (per cabinet)

User Manual

Download the User Manual in PDF format.
