Apogee Symphony Desktop Audio Interface

With the Apogee Symphony Desktop Audio Interface you can record, overdub, and mix with the legendary sound quality of the rack-mount Apogee Symphony I/O Mk II in an elegant and inspiring 10×14 audio interface that sits on your desk and fits in your bag.

Apogee Symphony Desktop Audio Interface

The Apogee Symphony Desktop offers the same high level conversion quality as the Symphony I/O Mk II, but in a more compact, non-rackmount design.

Choose your preferred mic preamp modeler or sculpt your sound using onboard plugins, all easily controlled via the Symphony Desktop’s Touch Screen interface.

With DualPath Monitoring, you can either print your plugin effects directly during recording or monitor them while preserving your original take. Save and recall presets for your favourite plugin chains to streamline your workflow.

The Apogee Alloy Preamp emulation blends analogue circuitry with DSP processing to deliver true-to-life preamp modelling.

Apogee Symphony Desktop

Features

  • Most affordable Symphony series interface ever
  • Cutting edge components and circuit design deliver flagship sound quality
  • Up to 24bit/192kHz digital audio
  • 2 Advanced Stepped Gain mic preamps
  • FET instrument input with electric guitar tube amp characteristics
  • Apogee Alloy Mic Preamp emulation (Analog processing + DSP modeling)
  • Built-in hardware DSP processing of Apogee FX plugins
  • Flexible, zero latency plugin workflows: Print, Monitor and DualPath Link workflows

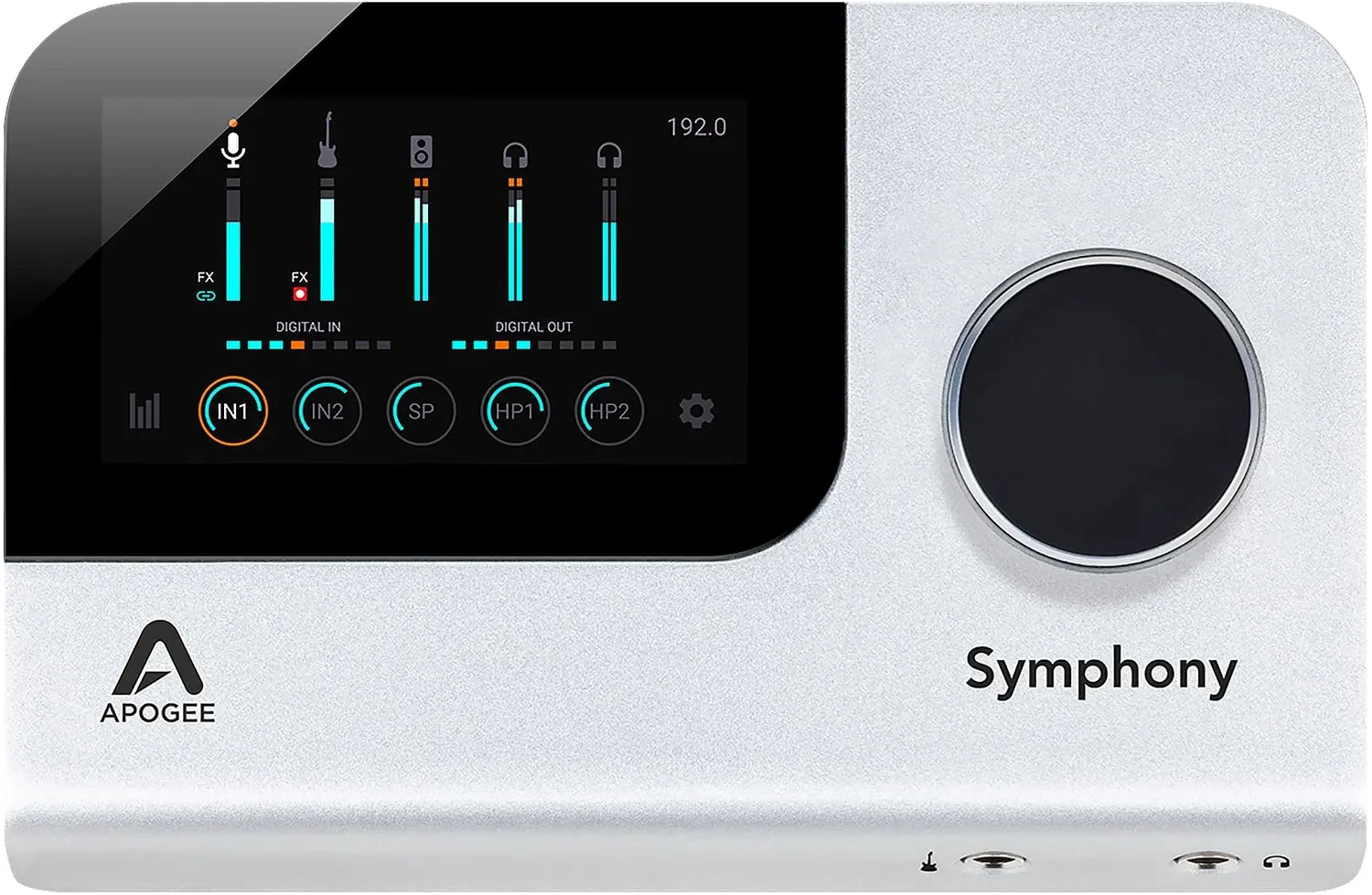

  • Dynamic touch screen display for comprehensive hardware control

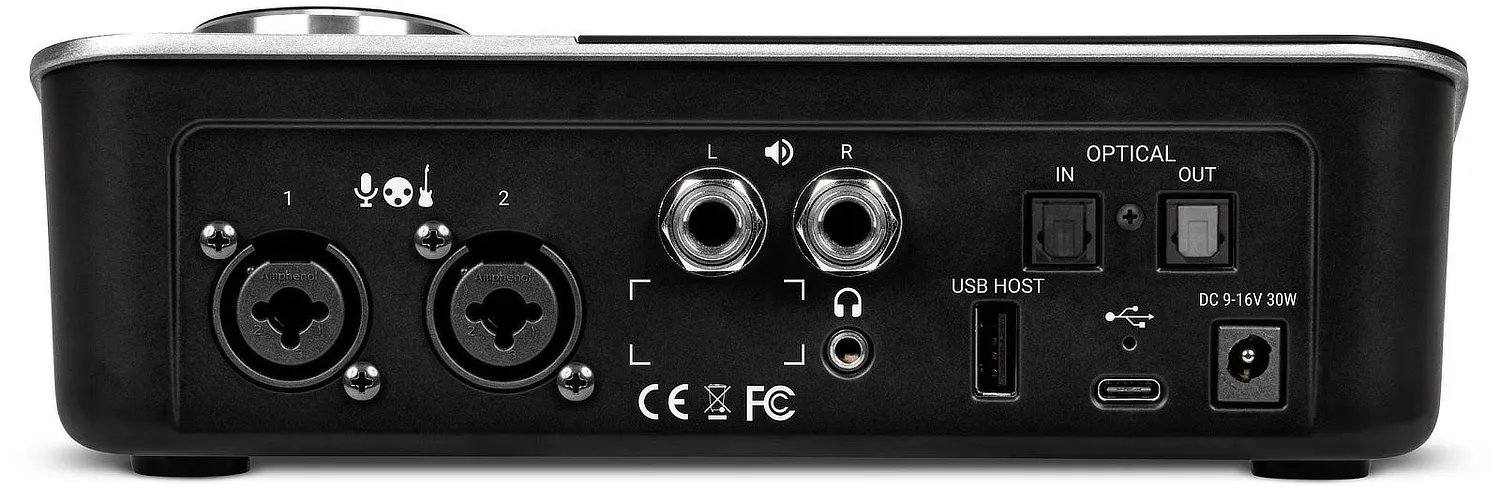

  • 2 fully balanced 1/4″ outputs
  • 2 assignable headphone outputs: 1 x 1/4″, 1 x 1/8”
  • 10 IN x 14 OUT simultaneous channels of audio
  • Digital I/O: 2 x Optical Toslink (ADAT,S/PDIF)
  • USB 2.0 over USB Type C connector

Specifications

  • Preamps:
    • Gain: Up to 75 dB with advanced stepped gain circuit design
    • Selectable 48V phantom power, Soft Limit, and polarity invert
    • Equivalent Input Noise (EIN): 129 dB (un-weighted) @ 60 dB, 150 Ohm input
    • Max input level: +20 dBu
    • Input impedance: 150 – 4K Ohm (default)
    • Max Hi-Z input level: 14 dBu
    • Hi-Z input impedance: 220k/470k/>20M Ohm
  • D/A Conversion:
    • Max output level (+4 dBu ref): +20 dBu
    • Max output level (-10 dBV ref): +6 dBV
    • Line output impedance: 50 Ohm
    • Frequency response (10 Hz – 20 kHz): > +/- 0.05 dB (@44.1 kHz)
    • Relative THD+N: -114 dB
    • Dynamic Range: 129 dB (A-weighted)
  • Headphone Output:
    • Max output level: 520 mW into 30 Ohm / 90 mW into 600 Ohm
    • Relative THD+N: -111 dB with 600 Ohm load
    • Dynamic Range: 128 dB (A-weighted)

Ordering

SKU ASDUAI Categories , Tags ,

Original price was: $3,057.Current price is: $2,999. Inc GST
